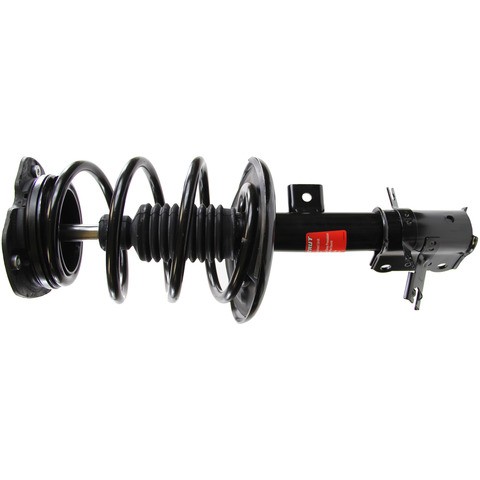

Monroe Shocks & Struts 172604 front right strut assembly for the 2009-2012 Nissan Maxima damps wheel movement and carries the coil spring at the front right corner. The unit, also called a complete strut and coil spring assembly, arrives with the spring and upper mount already assembled.
- Monroe Quick-Strut design: fully assembled unit, no spring compressor needed
- Application-specific coil spring is engineered to restore ride height and support the vehicle's weight
- Application-specific coil spring, mount and strut designs for ride and handling unique to each vehicle profile
- Reduces body sway, vibration and road harshness before they reach the cabin
- Upper strut mount helps keep steering precise and limits noise, vibration, harshness and memory steer
- Protective coating resists rust and corrosion and goes through salt spray testing
Quick facts
- Part: Monroe Shocks & Struts 172604 strut assembly
- Also called: complete strut and coil spring assembly
- Fits: 2009-2012 Nissan Maxima
- Position: Front right
- Condition: New
A bouncy ride, extra body sway or a knock over bumps can mean this strut assembly is worn, though worn tires or a loose sway bar link can produce similar symptoms, so find the cause before you replace it.
Fits
This is a direct-fit replacement for the 2009-2012 Nissan Maxima, and its preassembled mount, spring and strut have an OE-style design. This listing is the front right side of the front axle; the front left is a separate part, and that other side is normally done at the same time.
Specifications
Fit and size
- Position: Front right
- Quantity per vehicle: 1
- Body length: 14.34 in
- Compressed length: 13.64 in (346.5 mm)
- Extended length: 17.27 in (438.7 mm)
- Travel length: 3.63 in
Build and materials
- Type: gas charged, passive suspension
- Adjustable compression: No
- Adjustable ride height: No
- Finish: protective rust-resistant coating
- Condition: New
- Warranty: Monroe Limited Lifetime Warranty
- Country of origin: China
In the box
One front right strut assembly with the coil spring, strut mount, coil spring insulator, strut mount insulator and mounting hardware. The 2009-2012 Nissan Maxima takes one on its front right; the front left is ordered separately.
Interchange: 18818587 · 18818925 · LS3484981R · 1333426R · SR4237 · 34NS1144 · LS57494 · E43029DA0A · E43029DC0A · E43029DF0A · E43029N00D · E43029N20D · 811562 · 92140414 · 11336
This part cross-references / interchanges with the following part numbers:
18818587, 18818925, LS3484981R, 1333426R, SR4237, 34NS1144, LS57494, 172604, E43029DA0A, E43029DC0A, E43029DF0A, E43029N00D, E43029N20D, 811562, 92140414, 11336
Frequently Asked Questions
Is the Monroe 172604 strut assembly right for the 2009-2012 Nissan Maxima?
Yes. Monroe Shocks & Struts 172604 is the front right strut assembly for the 2009-2012 Nissan Maxima, and the front left side is a separate part.
Does the Monroe 172604 come with the coil spring and upper mount?
Yes. It includes the coil spring, strut mount, both insulators and mounting hardware in one preassembled unit, so no spring compressor is needed.
How long is this front right strut assembly compressed and extended?
Compressed length is 13.64 in (346.5 mm) and extended length is 17.27 in (438.7 mm), which gives 3.63 in of travel.
What does a worn front right strut assembly feel like when driving?
A bouncy ride, extra body sway or a knock over bumps can mean wear. A shop can inspect the strut and confirm whether it is the cause.
Is the Monroe Quick-Strut 172604 gas charged?
Yes. Monroe 172604 is gas charged and passive, with no adjustable compression and no adjustable ride height.
