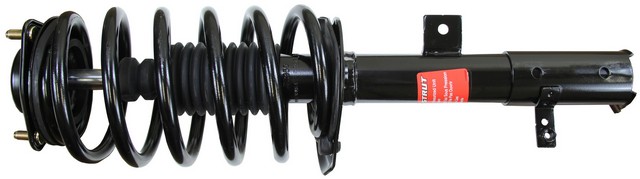

Monroe 172950 front right strut assembly for the 2012-2017 Jeep Compass and other vehicles combines the strut, coil spring and upper strut mount in one preassembled unit. As a Monroe Quick-Strut, it is fit checked and ride tested.
- Quick-Strut line: strut, coil spring and upper strut mount preassembled in a single unit
- Coil spring calibrated to restore ride height and support the vehicle's weight
- Application-specific coil spring, mount and strut designs for ride and handling matched to each vehicle profile
- Reduces body sway, vibration and road harshness for improved vehicle handling
- Upper strut mount that helps keep steering precise and helps prevent noise, vibration, harshness and memory steer
- Protective coating resists rust and corrosion; salt spray tested
Quick facts
- Part: Monroe 172950 strut assembly
- Also called: complete strut and coil spring assembly
- Fits: 2012-2017 Jeep Compass and other vehicles
- Position: Front right
- Condition: New
A bouncy or harsh ride, fluid on the strut body, or a clunk over bumps can mean a worn strut. Before you replace it, rule out other front-end parts, such as a loose sway bar link or a worn ball joint, that can make similar noises.
Fits
This Monroe strut assembly fits the 2012-2017 Jeep Compass and the 2011-2017 Jeep Patriot.
Specifications
Fit and size
- Position: Front right
- Quantity per vehicle: 1 for this side
- Body length: 16 in
- Compressed length: 13.44 in (341.4 mm)
- Extended length: 17.57 in (446.3 mm)
- Travel length: 4.13 in
Build and materials
- Type: strut and coil spring assembly with upper strut mount
- Gas charged: Yes
- Suspension: passive, not adjustable for compression or ride height
- Coating: protective rust and corrosion-resistant coating
- Condition: New
- Warranty: Monroe Limited Lifetime Warranty
- Country of origin: China
In the box
One front right strut assembly, a complete strut and coil spring assembly with the coil spring, strut mount, coil spring insulator, strut mount insulator and mounting hardware. This listing is one strut for the front right, which takes one; the front left is a separate part ordered separately, and both sides are normally replaced together.
Installation notes
- No spring compressor is needed to replace the strut, because the unit arrives fully assembled.
Interchange: 18818303 · 18818627 · LS5495161R · 1333508R · 1334308R · 2333508R · 5168164AB · 5168164AD · 5168218AB · 5168218AD · SR4467 · SR4507 · 33JP1109 · NS172950 · 92140749
This part cross-references / interchanges with the following part numbers:
18818303, 18818627, LS5495161R, 1333508R, 1334308R, 2333508R, 5168164AB, 5168164AD, 5168218AB, 5168218AD, SR4467, SR4507, 33JP1109, 172950, NS172950, 92140749
Frequently Asked Questions
Does Monroe 172950 fit the 2011-2017 Jeep Patriot?
Yes. Monroe 172950 is a front right strut assembly for the 2011-2017 Jeep Patriot and the 2012-2017 Jeep Compass. The front left side is a separate part.
What does the Monroe Quick-Strut strut and coil spring assembly include?
This front right assembly includes the coil spring, strut mount, coil spring insulator, strut mount insulator and mounting hardware, already put together.
How long is the Monroe quick strut assembly compressed and extended?
Monroe 172950 measures 13.44 in (341.4 mm) compressed and 17.57 in (446.3 mm) extended, with 4.13 in of travel and a 16 in body length.
Is a Monroe complete strut assembly like this one gas charged?
Yes. This front right strut assembly is gas charged. It is a passive suspension part with no adjustment for compression or ride height.
Do I need a spring compressor to install this front right strut?
No. The strut, coil spring and upper mount come fully assembled, so no spring compressor is needed to replace the strut.
