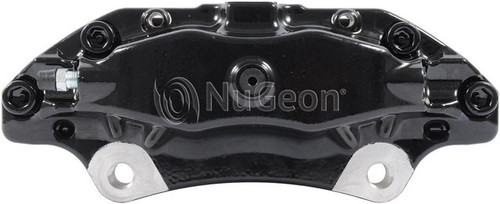

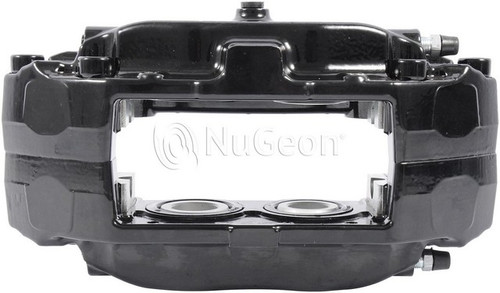

Nugeon 97B01022A front left brake caliper for the 2004-2008 Acura TL clamps the pads against the rotor to slow the wheel. This remanufactured Nugeon brake caliper holds four aluminum pistons in a fixed aluminum housing.
- Fixed caliper design with four aluminum pistons
- Piston outside diameters of 38 mm and 42 mm
- Aluminum caliper casting with a black powder-coated finish
- Bleeder screw and inlet port both threaded M10-1.0
Quick facts
- Part: Nugeon 97B01022A brake caliper
- Also called: disc brake caliper
- Fits: 2004-2008 Acura TL
- Position: Front left
- Material: Aluminum
- Condition: Remanufactured
A caliper that leaks fluid at the dust boot, drags, or wears one pad faster than the other can need replacing, and a pull to one side under braking can have the same source. Before you buy, look at the boot for wetness and compare pad thickness side to side during a brake service to find the cause.
Fits
It fits the 2004-2008 Acura TL, which takes one caliper on this side. This listing is one caliper for the front left; the front right is a separate part, and both sides are normally replaced together.
Specifications
Fit and size
- Position: Front left
- Quantity per vehicle: 1
- Caliper type: Fixed
- Piston quantity: 4
- Piston 1 outside diameter: 38 mm (1.496 in)
- Piston 2 outside diameter: 42 mm (1.654 in)
- Bleeder thread size: M10-1.0
- Inlet port thread size: M10-1.0
- Housing cast numbers: 20.8532.00 / 20.8531.00
Build and materials
- Condition: Remanufactured
- Caliper casting material: Aluminum
- Piston material: Aluminum
- Finish: Black powder coat
- Country of origin: Mexico
In the box
One remanufactured brake caliper with dust boots, a bleeder screw, crush washers and mounting hardware. Brake pads, the mounting bracket, bracket mounting bolts, mounting bolt, caliper slides, anti-squeal shims, wear sensors, a bleeder screw cap, and caliper and pad hardware are not included, so plan on new bolts for the bracket.
