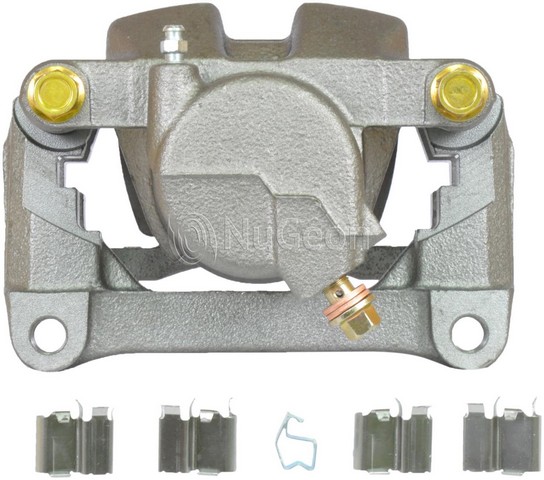

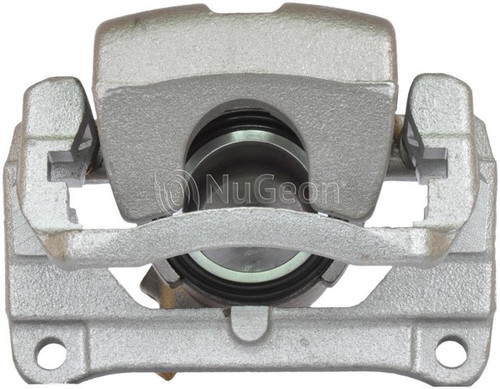

Nugeon 99-01182A front right brake caliper for the 2006-2015 Mazda MX-5 Miata clamps the brake pads against the rotor to slow the wheel. This Nugeon brake caliper is remanufactured and replaces a worn or leaking caliper on that side.
- Floating caliper design with a single steel piston
- Cast iron caliper body with a rust-preventative finish
- Banjo bolt inlet fitting
Quick facts
- Part: Nugeon 99-01182A brake caliper
- Also called: disc brake caliper
- Fits: 2006-2015 Mazda MX-5 Miata
- Position: Front right
- Material: Cast iron caliper, steel piston
- Condition: Remanufactured
A disc brake caliper that sticks or leaks can show up as pulling to one side, a burning smell or uneven pad wear. Pulling can also start in the tires or suspension, so rule those out first. With the engine off and cool, look at the caliper body and dust boots for fluid wetness or tears, and leave any further testing to a shop. If a faulty caliper is the cause, this one replaces it. This listing is one caliper, and both front calipers are normally replaced together.
Fits
This is a direct-fit replacement for the front right side of the 2006-2015 Mazda MX-5 Miata.
Specifications
Fit and size
- Position: Front right
- Quantity per vehicle: 1 (front right)
- Piston diameter: 54 mm (2.126 in)
- Piston quantity: 1
- Inlet port thread: M10-1.0 x 23.4 mm
- Bleeder screw thread: M8-1.0
Build and materials
- Caliper type: Floating
- Caliper material: Cast iron
- Piston material: Steel
- Finish: Rust preventative
- Housing cast number: FSX16K
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One caliper with its mounting bracket, caliper slides, dust boots, bleeder screw and crush washers. Brake pads, anti-squeal shims, wear sensors, the bleeder screw cap and the bracket mounting bolts are not included, so plan on new bolts. This listing holds one caliper for the front right; that side takes one, and the front left is ordered separately.
Frequently Asked Questions
Does the Nugeon 99-01182A fit the front right of a 2006-2015 Mazda MX-5 Miata?
Yes, Nugeon 99-01182A is a front right brake caliper for the 2006-2015 Mazda MX-5 Miata, and the front left side is a separate part.
Does the Nugeon caliper come with brake pads?
No, brake pads, anti-squeal shims and wear sensors are not included; the caliper comes with its mounting bracket, caliper slides, dust boots, bleeder screw and crush washers.
What size is the piston on this front right caliper?
Nugeon 99-01182A has one steel piston, 54 mm (2.126 in) across, in a floating caliper.
Does this brake caliper connect with a banjo bolt?
Yes. The inlet is a banjo bolt fitting with an M10-1.0 thread, and crush washers come with the caliper.
What bleeder screw thread does this caliper have?
The bleeder screw is M8-1.0 and is included with the caliper. The bleeder screw cap is not included.
