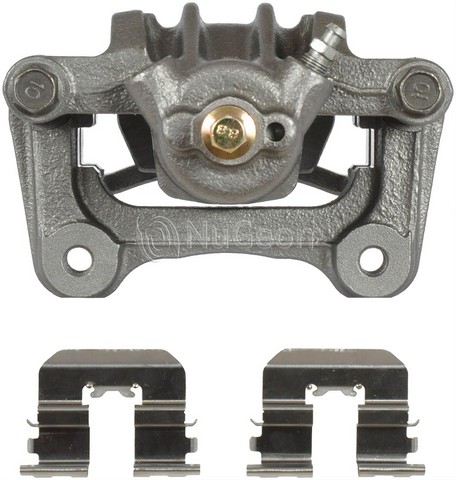

Nugeon 99-01844B rear left brake caliper for the 2011-2016 Kia Optima and other vehicles clamps the brake pads against the rotor to slow the wheel. This is a remanufactured floating caliper for the rear left position.
- Cast iron housing with a rust-preventative finish
- One steel piston, 38 mm (1.496 in) in diameter
- Banjo bolt inlet fitting with an M10-1.0 x 23.4 mm port thread
- Bleeder screw with an M10-1.0 thread
Quick facts
- Part: Nugeon 99-01844B brake caliper
- Also called: disc brake caliper
- Fits: 2011-2016 Kia Optima and other vehicles
- Position: Rear left
- Material: Cast iron housing, steel piston
- Condition: Remanufactured
A disc brake caliper that sticks or leaks can show up as the car pulling to one side, a burnt smell after driving, or brake fluid near the wheel. Before you replace the caliper, rule out worn pads, a seized slide pin and a damaged brake hose, since each can produce similar signs. The rear right takes its own caliper, and both sides are normally replaced together.
Fits
This Nugeon caliper fits the 2011-2016 Kia Optima and the 2012-2017 Hyundai Azera.
Specifications
Fit and size
- Position: Rear left
- Quantity per position: 1
- Piston diameter: 38 mm (1.496 in)
- Piston quantity: 1
- Inlet fitting: Banjo bolt
- Inlet port thread: M10-1.0 x 23.4 mm
- Bleeder screw thread: M10-1.0
Build and materials
- Caliper type: Floating
- Condition: Remanufactured
- Housing material: Cast iron
- Piston material: Steel
- Finish: Rust preventative
- Housing cast number: BC140198
- Bracket cast number: BC412160
- Country of origin: Mexico
In the box
One remanufactured rear left caliper with its bracket, slides, dust boots, caliper and pad hardware, bleeder screw and crush washer. This listing holds one caliper, and the rear left takes one. Brake pads, anti-squeal shims, wear sensors, the bleeder screw cap and the bracket mounting bolts are not included; plan on new bolts, since the old ones may not be reusable.
Frequently Asked Questions
Is this the rear left brake caliper for a 2011-2016 Kia Optima?
Yes. Nugeon 99-01844B is a rear left caliper for the 2011-2016 Kia Optima, and it also fits the 2012-2017 Hyundai Azera.
Are brake pads included with this Nugeon brake caliper?
No. The Nugeon 99-01844B comes with its bracket, slides, dust boots, hardware and bleeder screw, but brake pads, anti-squeal shims and wear sensors are not included.
What piston diameter does this floating caliper have?
The single steel piston is 38 mm (1.496 in) across. The banjo bolt inlet has an M10-1.0 x 23.4 mm port thread.
What are the signs of a sticking rear caliper?
Signs can include the car pulling to one side, a burnt smell after driving or brake fluid near the wheel. A shop can inspect the caliper and its slides to find the cause.
Which cast numbers are on this remanufactured caliper?
The housing carries cast number BC140198 and the bracket carries BC412160. Both are listed for the 99-01844B rear left unit.
