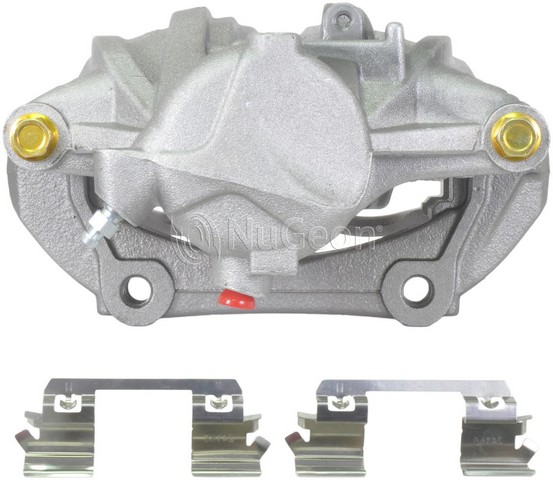

Nugeon 99-02760A front right brake caliper for the 2003-2009 Mercedes-Benz E320 and other vehicles clamps the brake pads against the rotor to slow the wheel. This remanufactured Nugeon brake caliper is made for the front right side of the axle.
- Floating caliper with one 60 mm aluminum piston
- Aluminum caliper casting with a rust preventative finish
- M10-1.0 thread on both the bleeder screw and the inlet port
- Plug-type inlet fitting
Quick facts
- Part: Nugeon 99-02760A brake caliper
- Also called: disc brake caliper
- Fits: 2003-2009 Mercedes-Benz E320 and other vehicles
- Position: Front right
- Material: Aluminum
- Condition: Remanufactured
A sticking or leaking caliper can show up as pulling to one side, a burning smell near a wheel or uneven pad wear. With the engine off, look at the caliper, hose and pad thickness first, since those signs can have other causes. Calipers are normally replaced in pairs, one on each side of the axle; this listing is the front right only, and the front left is ordered separately.
Fits
It fits the 2003-2009 Mercedes-Benz E320 and the 2006-2009 Mercedes-Benz E350.
Specifications
Fit and size
- Position: Front right
- Quantity: one caliper per side of the axle
- Piston diameter: 60 mm (2.362 in)
- Piston quantity: 1
- Bleeder screw thread: M10-1.0
- Inlet port thread: M10-1.0
- Banjo bolt quantity: 1
Build and materials
- Caliper type: Floating
- Condition: Remanufactured
- Casting material: Aluminum
- Piston material: Aluminum
- Finish: Rust preventative
- Inlet fitting: Plug
- Cast numbers: housing Z060/28/295, RE; bracket 204201864
- Country of origin: Mexico
In the box
One caliper with its mounting bracket, caliper slides, dust boots, bleeder screw, crush washers and mounting hardware. Brake pads, anti-squeal shims, wear sensors, the bleeder screw cap, bracket mounting bolts and caliper and pad hardware are not included, so plan on new bracket bolts.
Frequently Asked Questions
Is this a 2003-2009 Mercedes-Benz E320 brake caliper for the front right?
Yes. Nugeon 99-02760A is a front right caliper for the 2003-2009 Mercedes-Benz E320. The front left side takes a separate caliper.
Is this a 2006-2009 Mercedes-Benz E350 brake caliper too?
Yes. The front right Nugeon 99-02760A fits the 2006-2009 Mercedes-Benz E350, and the front left side is ordered separately.
What is in the box with this Nugeon caliper?
One remanufactured front right caliper with its bracket, slides, dust boots, bleeder screw and crush washers. Brake pads, shims and wear sensors are not included.
What piston size and bleeder thread does this disc brake caliper have?
This floating caliper has one 60 mm (2.362 in) aluminum piston. The bleeder screw has an M10-1.0 thread.
How can I tell if a front right brake caliper is sticking?
Signs can include the car pulling to one side, a burning smell near the wheel or one pad worn thinner than its mate. A shop can test the caliper itself.
