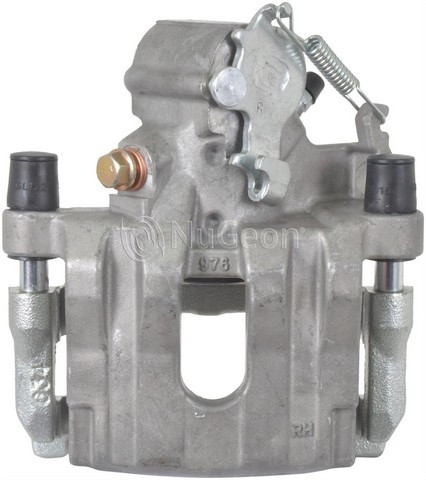

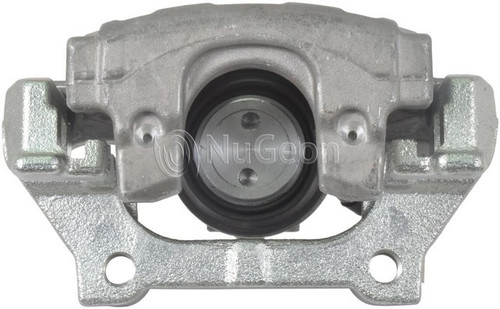

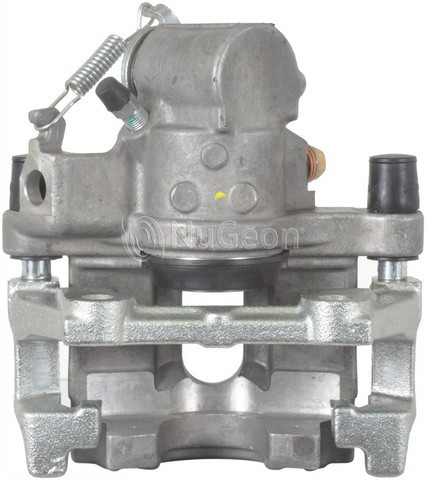

Nugeon 99-17415A rear right brake caliper for the 2008-2010 Chevrolet Cobalt squeezes the pads against the rotor to slow the wheel. If the caliper is worn or leaking, this remanufactured Nugeon brake caliper replaces it.
- Floating caliper with a single steel piston, 40 mm in diameter
- Aluminum casting with a rust-preventative finish
- Banjo inlet fitting with an M12 - 1.0 port thread
- M10-1.0 bleeder screw thread
Quick facts
- Part: Nugeon 99-17415A brake caliper
- Also called: disc brake caliper
- Fits: 2008-2010 Chevrolet Cobalt
- Position: Rear right
- Material: aluminum caliper casting, steel piston
- Condition: Remanufactured
A rear wheel that drags, a car that pulls to one side under braking, or brake fluid around the caliper can mean this caliper is worn, though a damaged brake hose or worn pads can lead to some of the same signs. Find the cause first, then replace the caliper if it is the culprit.
Fits
It fits the 2008-2010 Chevrolet Cobalt at the rear right. This listing is a single caliper, and the rear left side is a separate part; the two are normally replaced together.
Specifications
Fit and size
- Position: rear right
- Quantity for this side: 1
- Piston diameter: 40 mm (1.575 in); piston outside diameter: 39.9 mm (1.57 in)
- Inlet port thread: M12-1.0 x 20.9
- Bleeder thread: M10-1.0
- Banjo bolt quantity: 1
- Housing cast number: 976; bracket cast number: 634
Build and materials
- Caliper type: floating
- Casting material: aluminum
- Piston material: steel; piston quantity: 1
- Finish: rust preventative
- Inlet fitting: banjo
- Condition: remanufactured
- Country of origin: Mexico
In the box
One caliper, which is all the rear right takes, with its mounting bracket, caliper slides, dust boots, caliper and pad hardware, bleeder screw, banjo bolt and crush washer. Brake pads, anti-squeal shims, wear sensors, the bleeder screw cap and the bracket mounting bolts are not included, so plan on new bracket bolts because the old ones may not be reusable.
Frequently Asked Questions
Is this Chevy Cobalt brake caliper made for the 2008-2010 Chevrolet Cobalt?
Yes. Nugeon 99-17415A is the rear right brake caliper for the 2008-2010 Chevrolet Cobalt. The rear left side takes a separate caliper.
Does the Nugeon caliper come with brake pads?
No. Nugeon 99-17415A comes with the bracket, slides, dust boots, hardware, bleeder screw, banjo bolt and crush washer, but not pads, shims or wear sensors.
Is this disc brake caliper a floating design?
Yes. This rear caliper is a floating type with one steel piston that measures 40 mm across, and its casting is aluminum.
What thread does the banjo inlet on this brake caliper use?
The banjo inlet has an M12 - 1.0 port thread (M12-1.0 x 20.9), and the bleeder screw is M10-1.0. A banjo bolt and crush washer are included.
Do I need to buy bracket bolts separately for this remanufactured caliper?
Yes. Nugeon 99-17415A does not include bracket mounting bolts, so plan on new ones; the old bolts may not be reusable.
