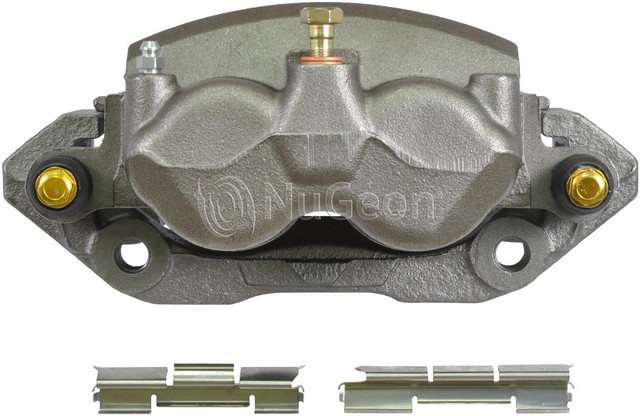

Nugeon 99-17701A rear right brake caliper for the 2001-2002 Dodge Ram 3500 presses the pads against the rotor to slow the wheel. This remanufactured Nugeon brake caliper, also called a disc brake caliper, replaces a worn or leaking unit.
- Floating caliper design with phenolic pistons
- Cast iron caliper body with a rust-preventative finish
- Banjo bolt inlet with a 3/8-24 thread
Quick facts
- Part: Nugeon 99-17701A brake caliper
- Also called: disc brake caliper
- Fits: 2001-2002 Dodge Ram 3500
- Position: Rear right
- Material: Cast iron caliper body, phenolic pistons
- Condition: Remanufactured
Fluid around the dust boot, pulling to one side under braking or pad wear that differs from the other side can mean a caliper is sticking or leaking. During a brake service with the engine off, look the caliper over for these before you replace it, because a brake hose or a stuck pad can produce similar symptoms.
Fits
This caliper fits the 2001-2002 Dodge Ram 3500. That truck takes one at the rear right position, and the rear left on the same axle is a separate part that is normally done at the same time.
Specifications
Fit and size
- Position: rear right
- Quantity per application: 1
- Piston quantity: 4
- Piston diameter: 51 mm (2.008 in)
- Bleeder screw: 3/8-24 x 1
Build and materials
- Caliper type: floating
- Caliper body: cast iron
- Piston material: phenolic
- Finish: rust preventative
- Condition: remanufactured
- Country of origin: Mexico
In the box
One caliper with its mounting bracket, caliper slides, dust boots, caliper and pad hardware, bleeder screw and crush washers. Brake pads, anti-squeal shims, the bleeder screw cap, bracket mounting bolts, the mounting bolt and wear sensors are not included, so plan on new bracket mounting bolts rather than reusing the old ones.
Interchange / FMSI:
FMSI: D702
Frequently Asked Questions
Is this the right 2001-2002 Dodge Ram 3500 brake caliper for the rear right wheel?
Yes. Nugeon 99-17701A is the rear right brake caliper for the 2001-2002 Dodge Ram 3500. The rear left on the same axle is a separate part.
What comes with this Nugeon caliper, and are the pads included?
It comes with the mounting bracket, slides, dust boots, bleeder screw, crush washers and caliper and pad hardware. Brake pads and bracket mounting bolts are not included.
Are the pistons in this rear brake caliper phenolic?
Yes. Nugeon 99-17701A has four phenolic pistons, each 51 mm (2.008 in) across, in a floating cast iron caliper body.
How can I tell if a rear brake caliper is sticking or leaking?
Brake fluid around the dust boot, pulling to one side when braking or uneven pad wear can mean a caliper problem. A shop can test the brake hydraulics to confirm it.
What inlet fitting does this brake caliper use?
It has a banjo bolt inlet with a 3/8-24 thread, and crush washers are included. The bleeder screw is 3/8-24 x 1.
