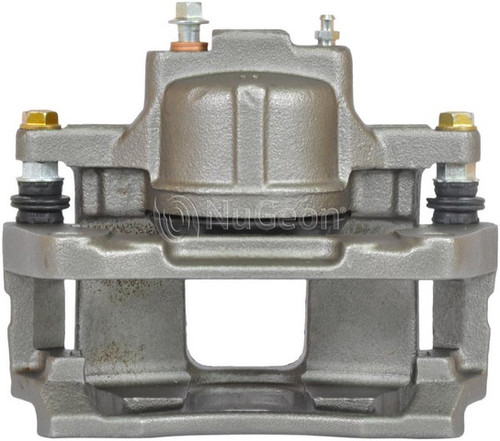

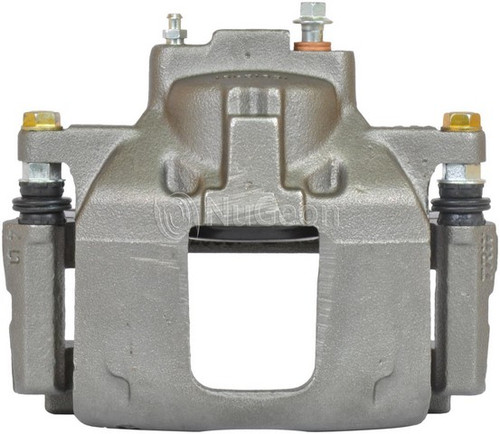

Nugeon 99-17735B front brake caliper for the 2007-2017 Jeep Wrangler and other vehicles presses the pads against the rotor to slow the wheel. This remanufactured Nugeon brake caliper is a floating type.
- Single phenolic piston, 66 mm in diameter
- Cast iron housing with a rust-preventative finish
- Banjo bolt inlet fitting for the brake line
Quick facts
- Part: Nugeon 99-17735B brake caliper
- Also called: disc brake caliper
- Fits: 2007-2017 Jeep Wrangler and other vehicles
- Position: Front right, front left
- Material: Cast iron
- Condition: Remanufactured
A front caliper that sticks, drags, leaks fluid at the piston or lets the vehicle pull to one side may be worn out, though a collapsed brake hose or unevenly worn pads can produce similar symptoms, so track down the cause before replacing it.
Fits
It is listed for a wide range of Chrysler, Dodge, Jeep, Ram and Volkswagen models, including the 2008-2016 Dodge Grand Caravan and the 2008-2016 Chrysler Town & Country.
Specifications
Fit and size
- Position: Front right, front left
- Quantity per application: 1
- Piston diameter: 66 mm (2.598 in)
- Piston quantity: 1
- Inlet fitting: Banjo bolt, port thread M10-1.0 x 23.4 mm
- Bleeder screw thread: M10-1.0
Build and materials
- Caliper type: Floating
- Housing material: Cast iron
- Piston material: Phenolic
- Finish: Rust preventative
- Housing cast number: 16018401
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One caliper with its mounting bracket, caliper slides, dust boots, bleeder screw and crush washers. Pads, anti-squeal shims, wear sensors, a bleeder screw cap, pad hardware and bracket mounting bolts are not included, so plan on new bracket bolts. This listing is one caliper and each front wheel takes one, so if you are doing both sides, order two and fit them together.
Frequently Asked Questions
Is Nugeon 99-17735B a brake caliper for the 2007-2017 Jeep Wrangler?
Yes, Nugeon 99-17735B fits the 2007-2017 Jeep Wrangler, the 2008-2016 Dodge Grand Caravan and the 2008-2016 Chrysler Town & Country; for other cars, look yours up in the "Vehicles it fits" section.
Does the Nugeon caliper come with brake pads?
No, Nugeon 99-17735B comes without pads, anti-squeal shims, wear sensors, a bleeder screw cap, pad hardware or bracket mounting bolts; the bracket, slides, dust boots, bleeder screw and crush washers are included.
What thread does the brake line connect to on this disc brake caliper?
The inlet is a banjo bolt fitting with an M10-1.0 x 23.4 mm port thread. The bleeder screw thread on this caliper is M10-1.0.
How can I tell if a front brake caliper is sticking?
Fluid around the piston, pads worn more on one side, a pull to one side under braking or a burning smell after a drive can point to a sticking caliper. A shop can pressure-test the brake system.
Is this front caliper remanufactured or new?
Remanufactured. Nugeon 99-17735B is a remanufactured floating caliper made in Mexico.
