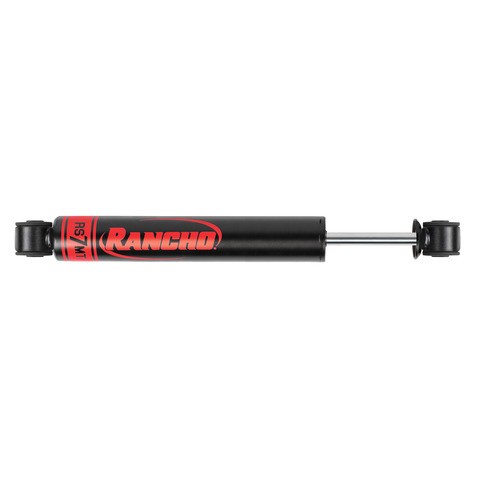

Rancho Steering Damper P/N:RS77420

Rancho Steering Damper P/N:RS77420
Enhance your vehicle’s performance and reduce wheel shimmy, bump steer and vibration with the Rancho® RS7MT® steering stabilizer. Designed for vehicles with oversized tires and wheels, the RS7MT steering stabilizer is highly effective in the dissipation of heat. With an integrated dirt wiper sealing system that keeps dirt and debris out, the RS7MT steering stabilizer is ideal for off-road driving and towing applications. They also feature a hardened piston rod that resists scuffs and corrosion plus an internal rebound bumper to smooth out your ride on any terrain.
IMPROVES HANDLINGANDPERFORMANCE?--?Reduces wheel shimmy, bump steer and vibration?which helpsminimizeon- or off-road driver fatigue
ACCOMMODATES LARGER TIRES?--?Engineered for vehicleswith oversized wheels and tires??
STRONG AND DURABLE -- Features a 14mm hardened chrome piston rod to resist scuffsandcorrosion, double-welded loops at stress areas, double-strength closure method,and hot form reservetube
HANDLES EXTREME TEMPERATURE CHANGES?-- Monotube gas designfilled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40?to?248°F?
BOLD APPEARANCE -- Black satin finish with distinctive Rancho red logo for an eye-catching look that stands out
THE RIGHT FIT -- Designed to fit right out of the box, application-specific mounting installs easily with no need for installing sleeves or extra hardware
KEEPS DIRT AND DEBRIS OUT -- Sealing system with integrated dirt wiper helps keep moisture, dirt and debris from being ingested into the shock and contaminating the oil and destroying the internal seal
BUY WITH CONFIDENCE --?Comes with Rancho’s Limited Lifetime Warranty
BUILT TO LAST -- Large 46mmfluon-banded piston for consistent sealing between the piston andmonotubefor precise control, ride and handling;for extra protection,shock boot RS1952 and RS1961 are available for purchase
RS7MT Amortisseur de direction
RS7MT Amortiguador de Dirección
RS7MT Steering Damper
Rancho RS7MT RS77420 Amortisseur de direction pour Jeep Wrangler
Rancho RS7MT RS77420 Amortiguador de Dirección para Jeep Wrangler
Rancho RS7MT RS77420 Steering Damper for Jeep Wrangler
Name | Value |
---|---|
Body Length (Millimeter) | 318 |
Boot Included | No |
Short Description | Telescopic |
Short Description | Steering Damper |
Color | Black |
Hazardous Material | No |
Minimum Order Quantity | 1 |
Country of Origin | Poland |
Weight - Each (Gross Pounds) | 4.5500 |
Weight - Case (Gross Pounds) | 18.2000 |
Height - Each (Inch) | 3.3100 |
Height - Case (Inch) | 6.7500 |
Length - Each (Inch) | 24.2500 |
Length - Case (Inch) | 24.5000 |
Width - Each (Inch) | 3.3100 |
Width - Case (Inch) | 6.7500 |
Total Part VIO" RecordNumber="1 | No |
Compressed Length (Inch) | 13.5 |
Body Type | 20.91 |
Gas Charged | Yes |
Travel Length (Inch) | 7.41 |
Body Length (Inch) | 12.52 |
Shock Absorber Body End Measuring Point | None |
Shock Absorber Rod End Measuring Point | Single Tube |
Lower Mount Code | LS38 |
Adjustable | No |
Adjustable | LS24 |
Dust Shield Material | Performance |
Dust Shield Material | No |
Lower Mount Type | 1.97 |
Lower Mount Type | Loop Bushing and Sleeve Mount - 1/2 Sleeve ID X 1.1/2 Sleeve OAL |
Free Height - MM | No |
Type of Finish | No |
Type of Finish | Steering Damper |
Upper Mount Type | No |
Life Cycle Status | Available to Order |
Upper Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.3/8 Sleeve OAL |
Finish | Painted |
Item Level GTIN | 00039703013130 |
Shock Absorber Bore Size (Millimeter) | 46 |
Quantity Per Application | 1 |
Rod Diameter (Millimeter) | 14 |
Rod Diameter (Millimeter) | Amortis direction |
Short Description (Spanish) | Amortiguador Direcc |
Compressed Length (Millimeter) | 342.9 |
Extended Length (Millimeter) | 531.1 |
Travel Length (Millimeter) | 188.2 |
Body Diameter (Millimeter) | 50 |
Make | Model | Year | Engine | Type |
---|---|---|---|---|
JEEP | GLADIATOR | 24-20 | All | Steering Damper - FRONT |
JEEP | WRANGLER | 24-18 | All | Steering Damper - FRONT |
