Featuring a unique, exclusive valving system and advanced compression functionality, Rancho® RS5000™X shocks deliver improved overall on- and off-road handling and performance.
IMPROVED HANDLING AND PERFORMANCE -- Cross Tuned technology featuring exclusive rebound valving system and advanced compression phase improves overall handling and performance on and off road
BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the application-specific piston delivers heightened control of shock motion due to the expanded piston area
BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty
STRONG AND DURABLE -- Features a 16mm nitro-carburized piston rod to resist scuffs & corrosion, double-welded loops at stress areas, 35mm sintered iron piston for enhanced structural integrity and polyvinyl protective boot
HANDLES EXTREME TEMPERATURE CHANGES -- Large twin-tube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
REDUCES FADE -- Nitrogen gas pressurized to 150 PSI to minimize air-to-oil mixture to reduce damping performance fade and foaming
MAINTAINS VEHICLE CONTROL -- Compression Control Valve is custom-tuned for each vehicle to regulate fluid transfer to absorb impacts without disc flutter and help maintain shock motion control
MINIMIZES ROUGH RIDE -- Exclusive Progressive Engagement Valving is custom-tuned for each vehicle to help reduce initial impacts at low speeds and minimizes a rough ride
SMOOTH PERFORMANCE -- Polyurethane rebound bumper and rubber bushings help absorb ride harshness while the fluon-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
RS5000X Amortisseur
RS5000X Amortiguador
RS5000X Suspension Shock Absorber
Rancho RS5000X RS55159 Amortiguador para Land Rover Defender 90

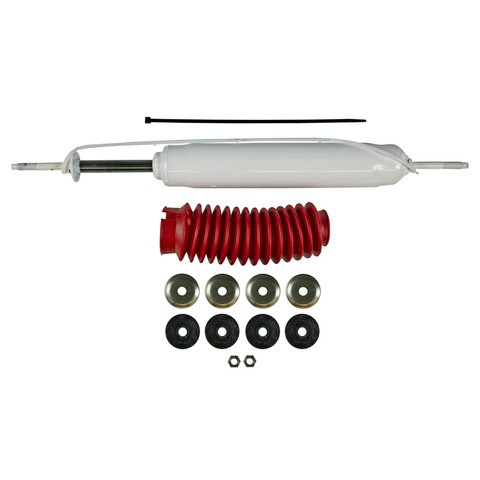

Rancho RS5000X RS55159 Suspension Shock Absorber for Land Rover Defender 90
Rancho RS5000X RS55159 Amortisseur pour Land Rover Defender 90
| Name | Value |
|---|---|
| Extended Length (Millimeter) | 535.2 |
| Travel Length (Millimeter) | 210.3 |
| Body Diameter (Millimeter) | 57.2 |
| Boot Included | Yes |
| Short Description | Telescopic |
| Short Description | Shock Absorber |
| Coil Over Springs Included | No |
| Color | White |
| Color | 8.28 |
| Shock Stroke (Millimeter) | 210.3 |
| Cylinder Outside Diameter (Inch) | 2.251 |
| Cylinder Outside Diameter (Millimeter) | 57.2 |
| Body Material | Steel |
| Cylinder Material | Steel |
| Cylinder Color | White |
| Cylinder Finish | Painted |
| Dust Shield Diameter (Inch) | 2.99 |
| Dust Shield Diameter (Millimeter) | 75.946 |
| Rod Diameter (Inch) | 0.622 |
| Shaft Material | Nitrocarburized |
| Shock Absorber Bore Size (Inch) | 1.3779527559055118 |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Valving Type | Progressive |
| Self-Leveling | No |
| Adjustable Ride Height | No |
| Maximum Ride Height Lowering Distance (Inch) | 0 |
| Maximum Ride Height Raising Distance (Inch) | 0 |
| Bladder(s) Included | No |
| Bladder Sleeve(s) Included | No |
| Bladder Heavy Duty Crimping Rings Included | No |
| Coil Spring Insulator(s) Included | No |
| Remote Reservoir | No |
| Strut Mount Insulator(s) Included | No |
| Dust Shield Color | Red |
| Air Adjustable | No |
| Air Ride Suspension | No |
| New Or Remanufactured | New |
| Bearing Plate Included | No |
| Spring Included | No |
| Spring Isolators Included | No |
| Spring Seat Included | No |
| Hazardous Material | No |
| Minimum Order Quantity | 1 |
| Country of Origin | United States |
| Weight - Each (Gross Pounds) | 6.0000 |
| Weight - Case (Gross Pounds) | 24.0000 |
| Height - Each (Inch) | 24.2500 |
| Height - Case (Inch) | 24.5000 |
| Length - Each (Inch) | 3.3125 |
| Length - Case (Inch) | 6.7500 |
| Width - Each (Inch) | 3.3125 |
| Width - Case (Inch) | 6.7500 |
| Total Part VIO" RecordNumber="1 | Yes |
| Compressed Length (Inch) | 12.79 |
| Body Type | 21.07 |
| Gas Charged | Yes |
| Travel Length (Inch) | 8.28 |
| Shock Absorber Body End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | (2) P01136 |
| Shock Absorber Rod End Measuring Point | Twin Tube |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Body Color | White |
| Lower Mount Code | S4 |
| Adjustable | No |
| Adjustable | S4 |
| Dust Shield Material | Rubber |
| Dust Shield Material | Performance |
| Lower Mount Type | Stem Mount - 2.3/8 Stem Length X 3/8-16 Thread Pitch |
| Lower Mount Type | 2.251 |
| Free Height - MM | Yes |
| Free Height - MM | No |
| Life Cycle Status | Available to Order |
| Type of Finish | No |
| Upper Mount Type | Yes |
| Item Level GTIN | 00039703000109 |
| Upper Mount Type | Stem Mount - 2.3/8 Stem Length X 3/8-16 Thread Pitch |
| Quantity Per Application | 2 |
| Upper Mount Type | No |
| Finish | Painted |
| Shock Absorber Bore Size (Millimeter) | 35 |
| Rod Diameter (Millimeter) | Amortisseur |
| Rod Diameter (Millimeter) | 15.8 |
| Short Description (Spanish) | Amortiguador |
| Compressed Length (Millimeter) | 324.9 |
| Make | Model | Year | Engine | Type |
|---|---|---|---|---|
| LAND ROVER | DEFENDER 110 | 1993 | All | Suspension Shock Absorber - FRONT |
| LAND ROVER | DEFENDER 90 | 1997 | All | Suspension Shock Absorber - FRONT |
| LAND ROVER | DEFENDER 90 | 95-94 | All | Suspension Shock Absorber - FRONT |
| LAND ROVER | DISCOVERY | 95-94 | All | Suspension Shock Absorber - FRONT |
| LAND ROVER | RANGE ROVER | 95-87 | All | Suspension Shock Absorber - FRONT |
