Rancho Suspension Shock Absorber P/N:RS77324

$87.99
$74.99
(You save $13.00 )
MPN: RS77324
UPC: 39703012270
PartType: Suspension Shock Absorber
Item Package Code: EA
Part Has Core (Y/N): N
Item Package Quantity: 1
Adding to cart… The item has been added
Rancho Suspension Shock Absorber P/N:RS77324

Rancho Suspension Shock Absorber P/N:RS77324

$87.99
$74.99
(You save $13.00 )

Application tuned for precision on-road and off-road handling, Rancho® RS7MT® monotube shocks are highly effective in the dissipation of heat, making them ideal for extreme off-road use and larger wheel and tire packages. RS7MT shocks feature an integrated dirt wiper sealing system that keeps dirt and debris out, hardened piston rod that resists scuffs and corrosion plus an internal rebound bumper to smooth out your ride on any terrain.

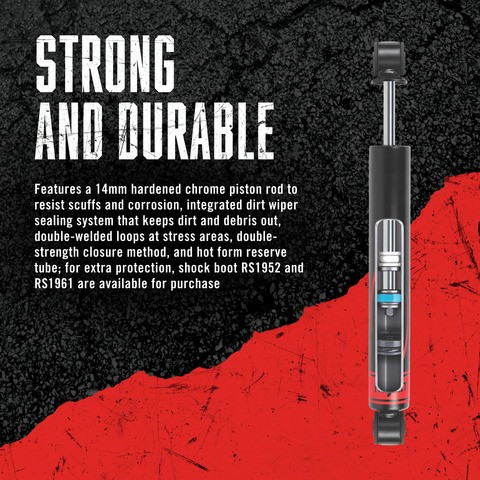

STRONG AND DURABLE -- Features a 14mm hardened chrome piston rod to resist scuffs & corrosion, double-welded loops at stress areas, double strength closure method and hot form reserve tube

HANDLES EXTREME TEMPERATURE CHANGES -- Large 2-in. monotube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F

REDUCES FADE -- Full-floating dividing piston and high-pressure nitrogen gas maintains constant pressure against the hydraulic oil, reducing aeration and shock fade

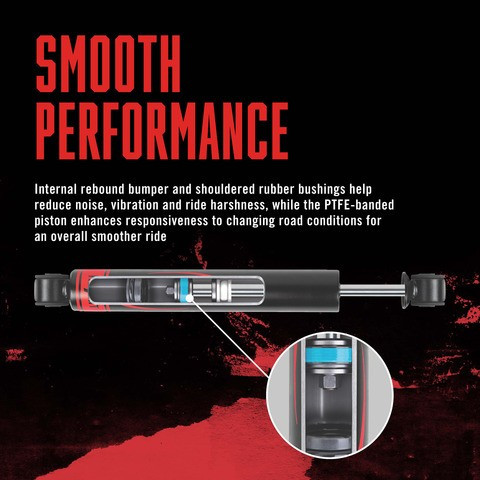

SMOOTH PERFORMANCE -- Internal rebound bumper and shouldered rubber bushings help reduce noise, vibration and ride harshness while the PTFE-banded piston enhances responsiveness to changing road conditions for an overall smoother ride

THE RIGHT FIT -- Designed to fit right out of the box, application-specific mounting installs easily with no need for installing sleeves or extra hardware

KEEPS DIRT AND DEBRIS OUT -- Sealing system with integrated dirt wiper helps keep moisture, dirt and debris from being ingested into the shock and contaminating the oil and destroying the internal seal

BUILT TO LAST -- Large 46mm fluon-banded piston for consistent sealing between the piston and monotube for precise control, ride and handling; for extra protection, purchase shock boot RS1952 or RS1961

BOLD APPEARANCE -- Black satin finish with distinctive Rancho red logo for an eye-catching look that stands out

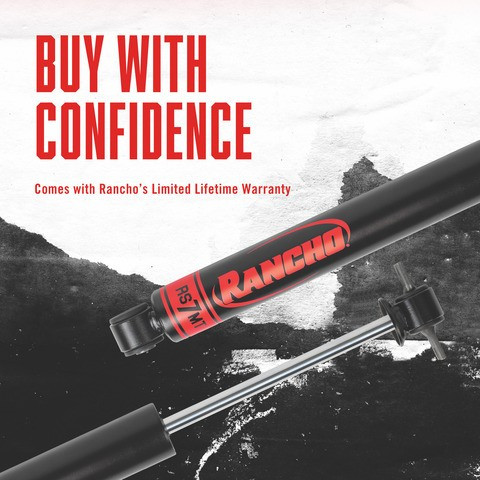

BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty

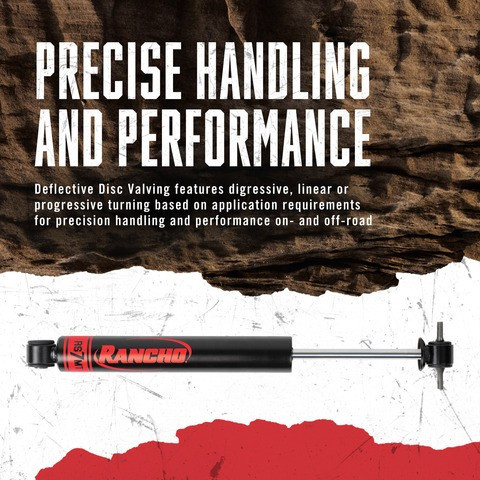

PRECISE HANDLING AND PERFORMANCE -- Deflective Disc Valving features digressive, linear or progressive tuning based on application requirements for precision handling and performance on- and off-road

RS7MT Amortisseur

RS7MT Amortiguador

RS7MT Suspension Shock Absorber

Rancho RS7MT RS77324 Amortisseur pour Toyota Tundra

Rancho RS7MT RS77324 Amortiguador para Toyota Tundra

Rancho RS7MT RS77324 Suspension Shock Absorber for Toyota Tundra

Name Value
Travel Length (Millimeter) 217.9
Body Diameter (Millimeter) 50
Boot Included No
Short Description Shock Absorber
Short Description Telescopic
Coil Over Springs Included No
Color Black
Color 8.58
Shock Stroke (Millimeter) 217.9
Cylinder Outside Diameter (Inch) 1.97
Cylinder Outside Diameter (Millimeter) 50
Body Material Steel
Cylinder Material Steel
Cylinder Color Black
Cylinder Finish Painted
Rod Diameter (Inch) 0.5511811023622047
Shaft Material Chromed
Shock Absorber Bore Size (Inch) 1.8110236220472442
Active or Passive Suspension Passive
Adjustable Compression No
Adjustable Rebound No
Valving Type Progressive
Self-Leveling No
Adjustable Ride Height No
Maximum Ride Height Lowering Distance (Inch) 0
Maximum Ride Height Raising Distance (Inch) 0
Bladder(s) Included No
Bladder Sleeve(s) Included No
Bladder Heavy Duty Crimping Rings Included No
Coil Spring Insulator(s) Included No
Remote Reservoir No
Strut Mount Insulator(s) Included No
Air Adjustable No
Air Ride Suspension No
New Or Remanufactured New
Bearing Plate Included No
Spring Included No
Spring Isolators Included No
Spring Seat Included No
Hazardous Material No
Minimum Order Quantity 1
Country of Origin Poland
Weight - Each (Gross Pounds) 6.2400
Weight - Case (Gross Pounds) 24.9600
Height - Each (Inch) 3.3100
Height - Case (Inch) 6.7500
Length - Each (Inch) 24.2500
Length - Case (Inch) 24.5000
Width - Each (Inch) 3.3100
Width - Case (Inch) 6.7500
Total Part VIO" RecordNumber="1 No
Compressed Length (Inch) 16.02
Body Type 24.6
Gas Charged Yes
Travel Length (Inch) 8.58
Shock Absorber Body End Measuring Point P01167
Shock Absorber Body End Measuring Point Base of Stem
Shock Absorber Rod End Measuring Point Center of Loop
Shock Absorber Rod End Measuring Point Single Tube
Body Color Black
Lower Mount Code LS38
Adjustable S5
Adjustable No
Dust Shield Material Performance
Lower Mount Type Loop Bushing and Sleeve Mount - 1/2 Sleeve ID X 1.1/2 Sleeve OAL
Lower Mount Type 1.97
Free Height - MM No
Free Height - MM Yes
Type of Finish No
Life Cycle Status Available to Order
Upper Mount Type Yes
Upper Mount Type Stem Mount - 2.5/8 Stem Length X 1/2-13 Thread Pitch
Item Level GTIN 00039703012270
Upper Mount Type No
Quantity Per Application 2
Finish Painted
Shock Absorber Bore Size (Millimeter) 46
Rod Diameter (Millimeter) 14
Rod Diameter (Millimeter) Amortisseur
Short Description (Spanish) Amortiguador
Compressed Length (Millimeter) 406.9
Extended Length (Millimeter) 624.8
Make ModelYearEngineType
TOYOTA TUNDRA21-07AllSuspension Shock Absorber - REAR
