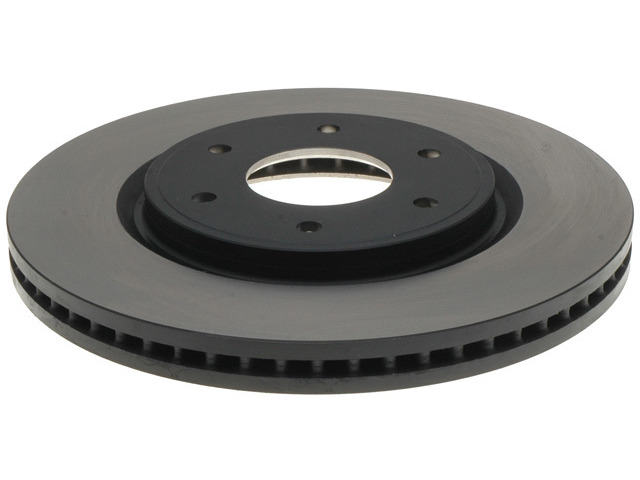

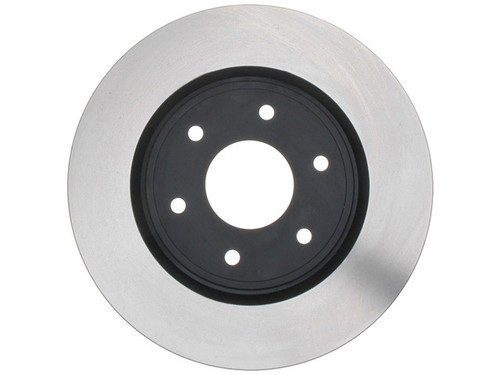

Damp brake noise and get smooth, effective stops with the Raybestos Brakes Disc Brake Rotor 980563, a front vented rotor from the Raybestos Specialty – Truck line. It drops in as a direct-fit replacement for the 2005-2007 INFINITI QX56 [All] and 2006-2007 NISSAN ARMADA [All].
OE Fit, Form and Function: a vehicle-specific design built to match OE fit, form and function for solid strength and performance.
Cooling vanes: vane configurations matched to the OE design to promote cooling, reduce fade and noise, and support pad life.
Rust protection: comes fully coated against the elements — Grey Fusion 4.0 rated at 300 hours salt spray, or a Black Fusion painted hat and edge.
Turned finish: gives the pads a ready surface to engage for a smooth stop right out of the box.
Built to SAE standards for tensile strength, hardness and iron grade for structural integrity. Rotor specs: 13.771 in (349.8 mm) outside diameter, 30 mm nominal / 28.5 mm discard thickness, 6 lug holes on a 5.5 in (139.7 mm) bolt circle, and an 82.1 mm center hole. It is a conventional (non drum-in-hat) rotor and does not include an ABS tone ring. Sold individually; two are used per axle, so order two and replace both sides together as a matched set for even, balanced braking. Manufacturer part number 980563. Country of origin: United States.
Frequently Asked Questions
Which vehicles does rotor 980563 fit?
It's a direct-fit front rotor for the 2005-2007 INFINITI QX56 and 2006-2007 NISSAN ARMADA (all engines). See the Buyer's Guide tab to confirm your vehicle.
Is this a front or rear rotor?
The catalog lists it as a front disc brake rotor.
Does it include an ABS tone ring?
No. The ABS tone ring is not included with this rotor; reuse or source that component separately as directed by the service procedure.
How many rotors do I need?
It's sold individually. Each axle uses two, so order two and replace both sides together as a matched set for even, balanced braking.
What are the rotor's dimensions?
13.771 in (349.8 mm) outside diameter, 30 mm nominal thickness with a 28.5 mm discard thickness, a 5.5 in (139.7 mm) 6-bolt circle, and an 82.1 mm center hole.
