Front Brake Rotor for 2002-2006 Toyota Camry & More - Raybestos 980077R

$81.99

Vehicles this part fits

    Part number: 980077R
    UPC: 829352372951
    Condition: New
    Weight: 18.00 LBS
    Item Package Quantity: 1
    $81.99
    Adding to cart… The item has been added

    Have questions?

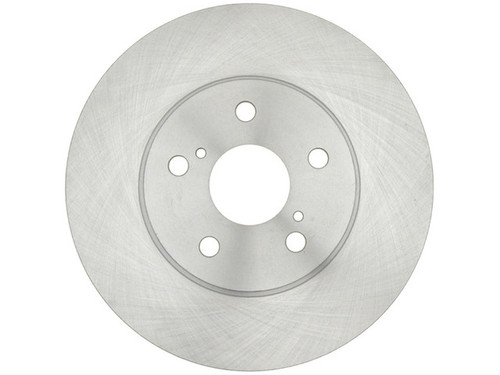

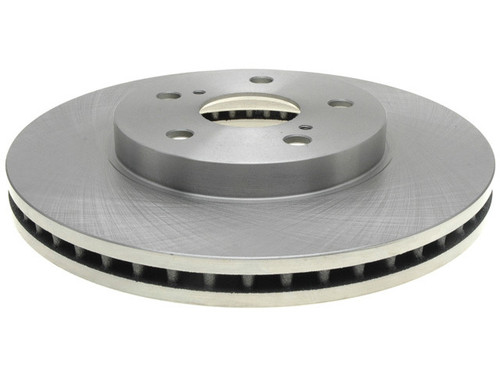

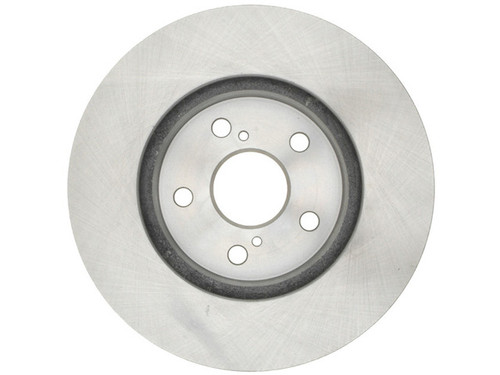

    Raybestos Brakes Disc Brake Rotor P/N:980077R
    Raybestos Brakes Disc Brake Rotor P/N:980077R
    $81.99
    $81.99

    Help keep your stops smooth and consistent with the Raybestos R-Line Brake Rotor, part number 980077R. This front brake rotor is engineered for everyday driving and developed from OE samples for OE fit, form and function. It fits many vehicles, among them the 2002-2006 Toyota Camry, 2004-2010 Toyota Sienna and 2005-2007 Toyota Avalon, as a direct-fit replacement for the listed applications. See the "Vehicles it fits" section for the full list.

    • OE fit, form and function: Developed from OE samples and made with G3000-qualified material for dependable braking.
    • SAE standard: Meets the SAE standard for tensile strength, which supports the rotor's structural integrity.
    • Low initial lateral runout and thickness variation: Built to a small lateral runout and thickness variation. This is designed to help reduce pedal pulsation and brake noise and to extend pad life.
    • Mill-balanced edges: Mill balanced and 100 percent validated to help minimize thickness variation. This helps reduce vibration and supports smoother stopping.

    Specifications: Cast iron. 11.65 in (295.9 mm) outside diameter. 1.1 in (27.95 mm) nominal thickness and 1.024 in (26 mm) discard thickness. 1.93 in (49 mm) overall height. 5 lug holes on a 4.5 in (114.3 mm) bolt circle, with 0.566 in (14.4 mm) bolt holes. 2.44 in (62 mm) center hole. It is a conventional rotor (not drum-in-hat) with a non-directional braking surface. An ABS tone ring is not included. Country of origin: China.

    Sold individually, so this listing is for one rotor. The listed applications use two. Replacing both front rotors together as a matched pair is recommended for even, balanced braking.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is this the right 2002-2006 Toyota Camry brake rotor?

    It is a direct-fit front rotor for the 2002-2006 Toyota Camry, 2004-2010 Toyota Sienna and 2005-2007 Toyota Avalon, among many other listed vehicles. Check the "Vehicles it fits" section to confirm your model.

    What does a disc brake rotor do?

    The rotor turns with the wheel hub. The brake pads clamp against its surfaces to create the friction that slows and stops the vehicle.

    What are the key specifications of the 980077R?

    It is cast iron, 11.65 in (295.9 mm) across and 1.1 in (27.95 mm) thick nominal, with a 1.024 in (26 mm) discard thickness. It has 5 lug holes on a 4.5 in (114.3 mm) bolt circle.

    How many rotors come in the box?

    One rotor, sold individually, with no ABS tone ring included. The listed applications use two, so replacing both front rotors together as a matched pair is recommended.

    What are signs a brake rotor may need replacing?

    Signs include pulsation in the brake pedal, vibration or noise when braking, visible scoring, or wear at or below the 1.024 in (26 mm) discard thickness.
