Give your rear brakes a dependable friction surface with the Raybestos R-Line Brake Rotor, part number 980957R, a solid, full-cast rotor engineered for everyday driving conditions. It is a direct-fit rear rotor for many vehicles, among them the 2011-2020 Hyundai Elantra, 2014-2025 Kia Soul and 2020-2025 Hyundai Venue. See the Buyer's Guide tab for the full list.

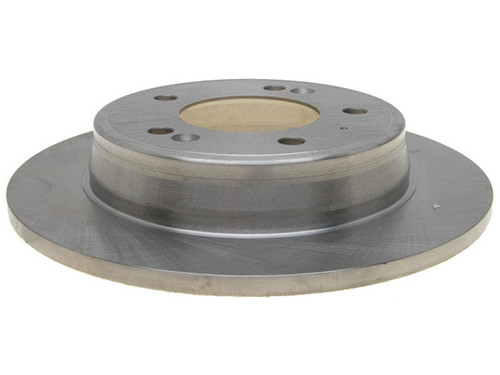

This cast iron disc brake rotor uses a solid, conventional design with a smooth, non-directional braking surface and a rust-resistant coating. It measures 10.3 in (262.2 mm) in outside diameter, with a nominal thickness of 10.0 mm (0.4 in), a discard thickness of 8.4 mm (0.3 in), an overall height of 45.0 mm (1.8 in), a 76.0 mm (3.0 in) center hole, and five mounting bolt holes on a 114.3 mm (4.5 in) bolt circle. An ABS tone ring and bearings are not included.
The listed applications use two rear rotors. This listing is for one, and we recommend replacing both sides together as a matched pair for even, balanced braking. Country of origin: China.
Are these the right 2011-2020 Hyundai Elantra rotors for the rear brakes?
Yes, 980957R is listed as a rear rotor for the 2011-2020 Hyundai Elantra (all engines). It also fits the 2014-2025 Kia Soul and 2020-2025 Hyundai Venue. Confirm your vehicle in the Buyer's Guide tab.
What does a rear brake rotor do?
The rotor turns with the wheel and gives the brake pads a flat surface to clamp against, which slows the vehicle. This one is a solid, full-cast rotor, so it has no internal cooling vanes.
What are the key measurements of this rotor?
It measures 10.3 in (262.2 mm) across. It has a 10.0 mm nominal thickness, an 8.4 mm discard thickness, a 76.0 mm center hole, and five bolt holes on a 114.3 mm bolt circle.
How many rotors do I need?
The listed applications use two rear rotors, and this listing is for one. We recommend replacing both sides together as a matched pair for even, balanced braking.
What are signs a rear rotor may need replacing?
Common signs include pulsation through the brake pedal, grinding or scraping noises, deep scoring or grooves, or a rotor worn to its 8.4 mm discard thickness. Have the brakes inspected to confirm the cause.
