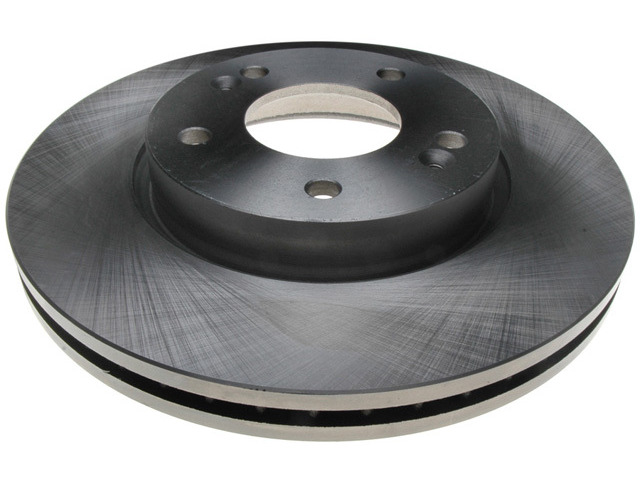

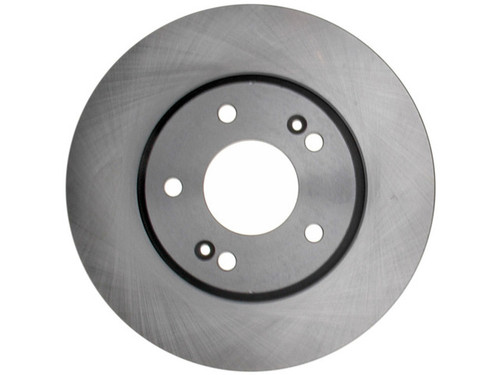

Bring smoother, quieter front braking to your Hyundai or Kia with the Raybestos R-Line Disc Brake Rotor 980419R. This vented, non-directional cast-iron rotor drops in as a direct-fit front replacement for applications including the 2009-2012 Hyundai Elantra [All], 2005-2010 Hyundai Sonata [All], 2010-2012 Hyundai Tucson [All], 2006-2010 Kia Magentis [All], 2006-2010 Kia Optima [All], 2010-2012 Kia Rondo [All], 2012-2013 Kia Soul [All], and 2011 Kia Sportage [All] — see the Buyer's Guide tab for the full list.
- OE fit, form, and function: developed from OE samples and made with G3000-qualified material for dependable braking.
- SAE standard: meets the SAE standard for tensile strength for structural integrity and a maximum service life.
- Low initial lateral runout and thickness variation: a small-parameter runout and thickness variation help reduce pedal pulsation and brake noise while supporting extended pad life.
- Mill-balanced edges: mill balanced and 100 percent validated to help minimize thickness variation, vibration, and deliver smoother stopping.
Conventional design with an 11.027 in (280.1 mm) outside diameter, 1.027 in (26.1 mm) nominal thickness, 0.961 in (24.4 mm) discard thickness, 4.5 in (114.3 mm) bolt circle, and 5 lug holes. Sold individually; for even, balanced braking, replace both front rotors as a matched pair. Country of origin: China.
Interchange: 31423 · 31423DG · 70102 · PRT5831 · 28010832 · 980419 · 980419FZN · 980419RGS · 09.B551.10 · 09B55110 · BR31423 · 517122L000 · 517123K000 · 517122G000 · 517123K010 · 31427 · DF4283 · TN980419GEO · 2031427 · 1427-731797 · 1427731797 · BD126553 · 6620517 · Manufacturer part number 980419R
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
Is this a front or rear rotor?
This is a front disc brake rotor for the listed Hyundai and Kia applications, such as the Elantra, Sonata, Tucson, Optima, Magentis, Rondo, Soul, and Sportage.
How many rotors do I need?
It's sold individually, so this listing is for one rotor. For even, balanced braking, it's best to replace both front rotors as a matched pair.
Is this rotor vented?
Yes. It is a vented, conventional, non-directional rotor with internal cooling vanes and mill-balanced edges to help reduce vibration.
What material is the rotor made from?
It is made from cast iron using G3000-qualified material and meets the SAE standard for tensile strength for structural integrity and a maximum service life.
What are the key dimensions?
It has an 11.027 in (280.1 mm) outside diameter, 1.027 in (26.1 mm) nominal thickness, 0.961 in (24.4 mm) discard thickness, a 4.5 in (114.3 mm) bolt circle, and 5 lug holes.
