Piston Ring Set for 1991-2004 Ford Explorer & More - Sealed Power E-613X

$126.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: E-613X
    UPC: 087674951999
    Condition: New
    Weight: 0.70 LBS
    Item Package Quantity: 1
    $126.99
    Adding to cart… The item has been added

    Have questions?

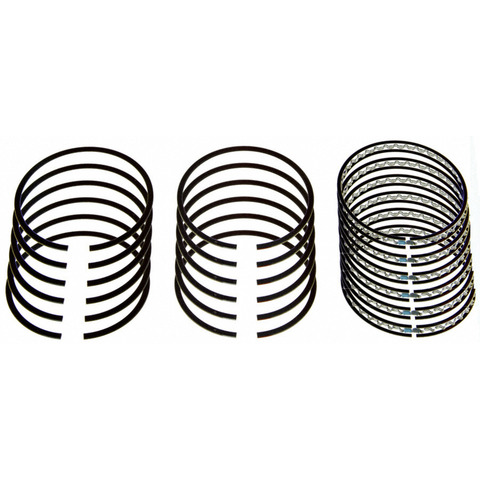

    Sealed Power Engine Piston Ring Set P/N:E-613X
    Sealed Power Engine Piston Ring Set P/N:E-613X
    $126.99
    $126.99

    Sealed Power E-613X piston ring set for the 1991-2004 Ford Explorer V6 4.0L and other vehicles seals each piston against the cylinder wall and controls oil. Every Sealed Power piston ring in the set is application-specific.

    • Grey iron top ring and second ring
    • Reverse torsional face on the second ring
    • 3-piece flex vent oil ring design
    • Made to exacting tolerances

    Quick facts

    • Part: Sealed Power E-613X piston ring set
    • Also called: engine piston ring set
    • Fits: 1991-2004 Ford Explorer V6 4.0L and other vehicles
    • Material: Top and second rings are grey iron
    • Condition: New

    A worn engine piston ring set can show up as oil consumption, blue smoke from the exhaust or low compression. These signs alone do not prove the rings are the problem; worn valve seals can also let oil burn. The 1991-2004 Ford Explorer V6 4.0L takes one set, which covers all six cylinders.

    Fits

    This set is listed for a wide range of Ford, Mazda and Mercury models, including the 1990-2004 Ford Ranger V6 4.0L and the 2001-2004 Ford Explorer Sport Trac V6 4.0L. If your vehicle is not named here, look it up in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Cylinders per set: 6
    • Quantity per vehicle: 1 set
    • Groove widths (top, second, oil): 1.6 x 1.75 x 3.5 mm
    • Size: standard, not oversized

    Build and materials

    • Top ring material: grey iron
    • Second ring material: grey iron
    • Second ring face: reverse torsional
    • Oil ring design: 3-piece flex vent
    • Condition: new
    • Country of origin: United States

    Interchange: 51550CP · 613X · F7TZ6148BA · FOTZ6148J · FOTZ6148M · FOTZ6148N · 4627 · H613X

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    51550CP, 613X, F7TZ6148BA, FOTZ6148J, FOTZ6148M, FOTZ6148N, 4627, H613X

    Frequently Asked Questions

    Are these Ford Ranger piston rings right for the 1990-2004 model with the V6 4.0L?

    Yes. Sealed Power E-613X fits the 1990-2004 Ford Ranger V6 4.0L, and one set covers the engine's six cylinders.

    What are the top and second rings made of in the Sealed Power E-613X?

    Both the top ring and the second ring are grey iron. The second ring has a reverse torsional face.

    What ring widths does this piston ring set use?

    The groove widths are 1.6 x 1.75 x 3.5 mm: 1.60 mm for the top ring, 1.75 mm for the second ring and 3.50 mm for the oil ring. The set is standard size, not oversized.

    How do I tell if the piston rings in my engine are worn?

    Oil consumption, blue exhaust smoke and low compression can all be signs. A shop can test compression to see what the engine needs.

    Does Sealed Power E-613X interchange with F7TZ6148BA?

    Yes. F7TZ6148BA is one of the interchange numbers for Sealed Power E-613X, along with 51550CP, 613X and H613X.
