Piston Ring Set for 1974-1983 Jeep Cherokee & More - Sealed Power E-301X

$120.99
WARNING:California Proposition 65▾
Sealed Power Engine Piston Ring Set E-301X
Sealed Power Engine Piston Ring Set E-301X - view 2
Sealed Power Engine Piston Ring Set E-301X - view 3
Sealed Power Engine Piston Ring Set E-301X - view 4
Sealed Power Engine Piston Ring Set E-301X
Sealed Power Engine Piston Ring Set E-301X - view 2
Sealed Power Engine Piston Ring Set E-301X - view 3
Sealed Power Engine Piston Ring Set E-301X - view 4

Vehicles this part fits
    Part number: E-301X
    UPC: 053059135605
    Condition: New
    Weight: 1.30 LBS
    Item Package Quantity: 1
    $120.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert

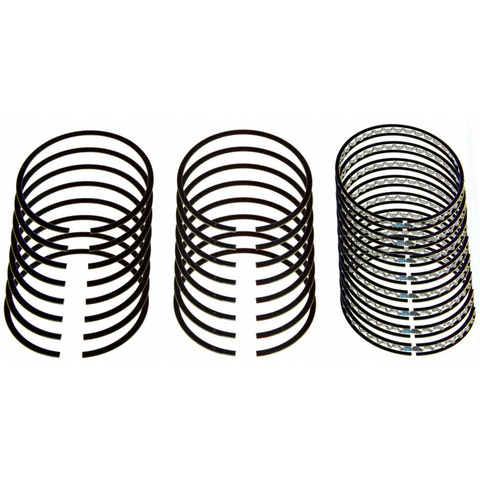

    Sealed Power Engine Piston Ring Set P/N:E-301X
    Sealed Power Engine Piston Ring Set P/N:E-301X
    $120.99
    $120.99

    Sealed Power E-301X piston ring set for the 1974-1983 Jeep Cherokee V8 5.9L and other vehicles has Sealed Power piston rings that seal each piston against its cylinder wall. The set is made for eight cylinders and is also called an engine piston ring set.

    • Made to exacting tolerances
    • Top and second rings in grey iron with phosphate
    • Reverse torsional face on the second ring
    • 3-piece flex vent oil ring, 0.1875 in wide
    • Standard size, not oversized, for a 4.0800 in bore

    Quick facts

    • Part: Sealed Power E-301X piston ring set
    • Also called: engine piston ring set
    • Fits: 1974-1983 Jeep Cherokee V8 5.9L and other vehicles
    • Material: top ring grey iron with phosphate; second ring grey iron with phosphate coating
    • Condition: New

    Worn rings can show up as oil use, blue-gray exhaust smoke or lost compression. Worn valve seals, worn valve guides or a leaking head gasket can be behind the same signs, so find the cause before you buy rings.

    Fits

    This ring set is a direct-fit replacement for the 1974-1983 Jeep Cherokee V8 5.9L, the 1984-1991 Jeep Grand Wagoneer V8 5.9L and the 1974-1988 Jeep J10 V8 5.9L, and it meets or exceeds OEM specifications. A 1974-1983 Jeep Cherokee V8 5.9L takes one set. If your vehicle is not named here, look up your year and engine in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Bore diameter: 4.0800 in
    • Ring groove widths: 5/64 x 5/64 x 3/16 in
    • Oil ring width: 0.1875 in
    • Cylinder quantity: 8
    • Quantity per application: 1 set
    • Oversized: No

    Build and materials

    • Top ring material: grey iron with phosphate
    • Second ring material: grey iron with phosphate coating
    • Second ring face design: reverse torsional
    • Oil ring design: 3-piece flex vent
    • Condition: New
    • Country of origin: United States

    Interchange: R40858-STD
    3208065 · 3208066 · J3208065 · J3208066 · 301X · 50785 · 2105138 · 6292 · 693 · BC2109 · C2109 · T8162X

    This part cross-references / interchanges with the following part numbers:

    3208065, 3208066, J3208065, J3208066, 301X, 50785, 2105138, R40858-STD, 6292, 693, BC2109, C2109, T8162X

    Frequently Asked Questions

    Does the Sealed Power E-301X fit the 1984-1991 Jeep Grand Wagoneer V8 5.9L?

    Yes. Sealed Power E-301X fits the 1984-1991 Jeep Grand Wagoneer V8 5.9L, and that engine takes one set. If your car is a different one, look up your year and engine in the "Vehicles it fits" section.

    Is this Sealed Power piston ring set standard size or oversized?

    Standard size. Sealed Power E-301X is not oversized and is made for a 4.0800 in bore.

    What are the top and second rings made of?

    The top ring is grey iron with phosphate, and the second ring is grey iron with a phosphate coating. The second ring has a reverse torsional face.

    Which ring groove widths does this set match, and what oil ring does it have?

    The groove widths are 5/64 x 5/64 x 3/16 in. The oil ring is a 3-piece flex vent design, 0.1875 in wide.

    Is 6292 an interchange number for the E-301X?

    Yes. 6292 is listed as an interchange number for Sealed Power E-301X, along with 301X and 693.
