Piston Set for 1975-1976 Cadillac Calais & More - Sealed 609P 30

$890.99

Vehicles this part fits

    Part number: 609P30
    UPC: 724956364916
    Condition: New
    Weight: 5.84 LBS
    Pack of 8
    $890.99
    Adding to cart… The item has been added

    Have questions?

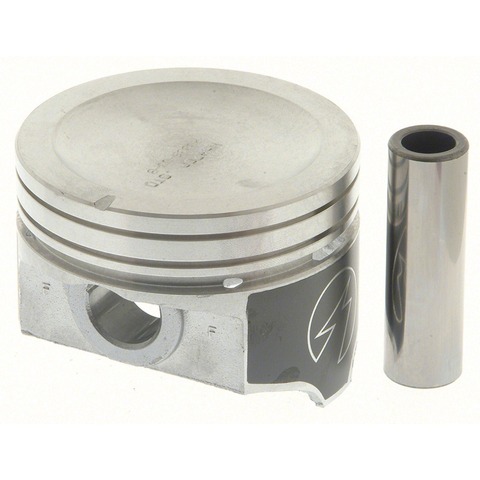

    Sealed Power Engine Piston Set P/N:609P 30 (Pack of 8)
    Sealed Power Engine Piston Set P/N:609P 30 (Pack of 8)
    $890.99
    $890.99

    Sealed Power 609P 30 piston set for the 1975-1976 Cadillac Calais V8 8.2L and other vehicles carries combustion force to the connecting rod. This engine piston set suits engine rebuilds, and the V8 8.2L takes eight pistons, one per cylinder.

    • Sealed Power Vintage line for classic engine rebuilds
    • Cast with FM132 eutectic proprietary alloy
    • Cast aluminum piston construction
    • Recessed piston head with a 1.882 in compression height
    • Oversized by 0.030 in for a 4.3000 in bore

    Quick facts

    • Part: Sealed Power 609P 30 piston set
    • Also called: engine piston set
    • Fits: 1975-1976 Cadillac Calais V8 8.2L and other vehicles
    • Material: Cast aluminum
    • Condition: New

    Heavy oil use, blue exhaust smoke, low compression or an engine knock can mean worn pistons. Worn rings, scored cylinder walls or leaking valve seals can be behind the same signs, so find the cause before buying.

    Fits

    The vehicles it fits include the 1975-1976 Cadillac Commercial Chassis V8 8.2L and the 1975-1976 Cadillac DeVille V8 8.2L, plus other Cadillac models. To check your exact model and engine, open the "Vehicles it fits" section. The set meets or exceeds OEM specifications.

    Specifications

    Fit and size

    • Quantity per vehicle: 8
    • Bore diameter: 4.3000 in
    • Oversize: 0.030 in
    • Compression height: 1.882 in
    • Piston pin outside diameter: 0.9999 in (25.397 mm)
    • Pin offset: 0.06 in (1.524 mm)
    • Top and second compression ring thickness: 0.0781 in
    • Oil ring thickness: 0.1875 in

    Build and materials

    • Piston material: cast aluminum
    • Alloy: FM132 eutectic proprietary alloy
    • Piston head type: recessed
    • Grade type: Premium
    • Condition: new
    • Country of origin: United States

    In the box

    The piston set. Assembly lubricant is not included.

    Interchange: P6011(8)030
    P545030 · 91817030 · 2242035030 · 1057P30 · 1817030 · L1313F30

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    P545030, 91817030, 2242035030, P6011(8)030, 1057P30, 1817030, L1313F30

    Frequently Asked Questions

    Will Sealed Power 609P 30 pistons fit a 1975-1976 Cadillac DeVille V8 8.2L?

    Yes. Sealed Power 609P 30 fits the 1975-1976 Cadillac DeVille V8 8.2L, which takes eight pistons, one per cylinder. Open the "Vehicles it fits" section to check other models.

    What bore size and oversize is this piston set listed with?

    Sealed Power 609P 30 is listed with a 4.3000 in bore diameter and a 0.030 in oversize. The compression height is 1.882 in.

    Are these Sealed Power Vintage pistons cast or forged?

    They are cast. The material is cast aluminum, made with FM132 eutectic proprietary alloy, and the head type is recessed.

    Does this piston set include assembly lubricant?

    No. Assembly lubricant is not included with this set, so it has to be bought separately.

    Does Sealed Power 609P 30 replace number 1057P30?

    Yes. 1057P30 is one of the other-brand and OE numbers Sealed Power 609P 30 replaces, along with P545030 and 91817030.
