Piston Set for 1975-1976 Cadillac Calais & More - Sealed 609P 40

$890.99

Vehicles this part fits

    Part number: 609P40
    UPC: 724956364930
    Condition: New
    Weight: 5.84 LBS
    Pack of 8
    $890.99
    Adding to cart… The item has been added

    Have questions?

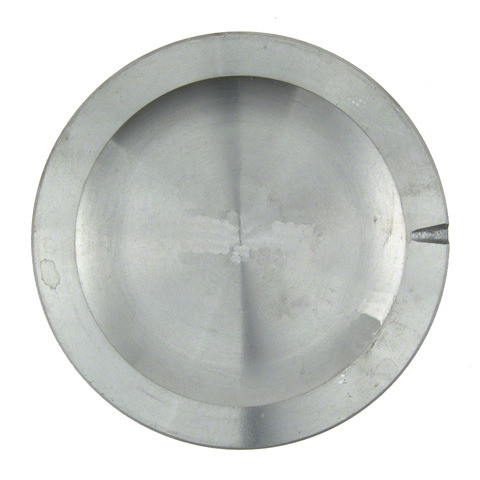

    Sealed Power Engine Piston Set P/N:609P 40 (Pack of 8)
    Sealed Power Engine Piston Set P/N:609P 40 (Pack of 8)
    $890.99
    $890.99

    Sealed 609P 40 piston set for the 1975-1976 Cadillac Calais V8 8.2L and other vehicles replaces the pistons that carry combustion pressure down to the connecting rods. The set meets or exceeds OEM specifications.

    • Sealed Power Vintage line for classic engine rebuilds
    • Cast aluminum pistons made from FM132 eutectic proprietary alloy
    • Recessed piston head with a 1.882 in compression height
    • Oversized by 0.040 in, listed for a 4.3000 in bore

    Quick facts

    • Part: Sealed 609P 40 piston set
    • Also called: engine piston set
    • Fits: 1975-1976 Cadillac Calais V8 8.2L and other vehicles
    • Material: Cast Aluminum
    • Condition: New

    A knock on a cold start, blue exhaust smoke and rising oil use can point to worn pistons or bores. Those signs alone do not prove the pistons are at fault, since worn valve stem seals can also burn oil, so find the cause before you replace them.

    Fits

    Fit includes the 1975-1976 Cadillac Commercial Chassis V8 8.2L and other Cadillac models, and the 1975-1976 Cadillac DeVille V8 8.2L takes eight pistons.

    Specifications

    Fit and size

    • Quantity per vehicle: 8
    • Oversize: 0.040 in
    • Bore diameter: 4.3000 in
    • Piston pin outside diameter: 0.9999 in (25.397 mm)
    • Compression height: 1.882 in
    • Pin offset: 0.06 in (1.524 mm)
    • Ring thickness: 0.0781 in top and second compression, 0.1875 in oil

    Build and materials

    • Type: cast piston set
    • Material: Cast Aluminum
    • Alloy: FM132 eutectic
    • Piston head: recessed
    • Condition: New
    • Country of origin: United States

    In the box

    One piston set. Assembly lubricant is not included.

    Interchange: P6011(8)040
    L1313F40

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    P6011(8)040, L1313F40

    Frequently Asked Questions

    Is the Sealed 609P 40 piston set right for a 1975-1976 Cadillac DeVille V8 8.2L?

    Yes, Sealed 609P 40 fits the 1975-1976 Cadillac DeVille V8 8.2L and many other Cadillac models; if your car is not named here, find it in the "Vehicles it fits" section on this page.

    Does this piston set come with assembly lubricant?

    No. Assembly lubricant is not included with the Sealed 609P 40 piston set, so you need to get it separately.

    Is this engine piston set oversized?

    Yes. This piston set is oversized by 0.040 inch and is listed with a 4.3000 inch bore diameter.

    What is the piston pin size on these Sealed Power Vintage pistons?

    The piston pin outside diameter is 0.9999 inch (25.397 mm), and the pin offset is 0.06 inch (1.524 mm).

    Does the Sealed 609P 40 piston set replace L1313F40?

    Yes. L1313F40 is listed as an interchange number for the Sealed 609P 40 piston set.
