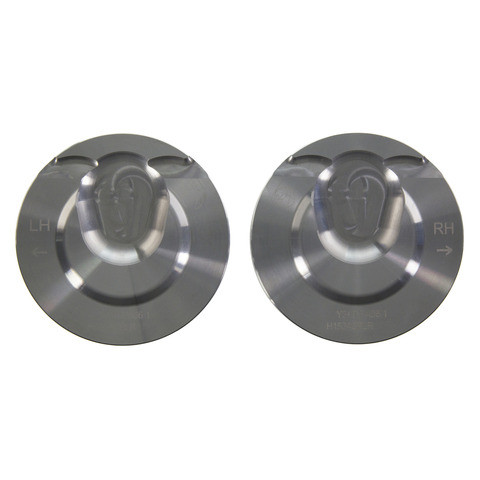

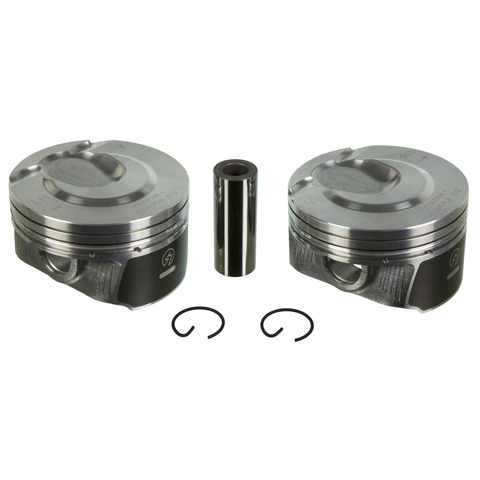

Sealed H1524CPLR .25MM piston set for the 2013-2019 Ford Explorer V6 3.5L and other vehicles is a 0.25 mm oversize set of hypereutectic pistons for an engine rebuild. Some catalogs list it as an engine piston set; the pistons move in the cylinders and pass combustion force to the connecting rods.
- Hypereutectic pistons cast with S2N proprietary alloy
- Duroshield graphite coating helps prevent scuffing of the skirt and cylinder wall
- Up-tilt ring grooves improve piston-to-ring side sealing for blow-by control, efficiency and economy
- Ultra-precise pin bores and precision-machined lube slots keep lubrication tolerances controlled with either pin installation method
- Oversize by 0.25 mm, with a dome piston head
Quick facts
- Part: Sealed H1524CPLR .25MM piston set
- Also called: engine piston set
- Fits: 2013-2019 Ford Explorer V6 3.5L and other vehicles
- Material: Hypereutectic
- Condition: New
Heavy oil use, a loss of power or a knock from the engine can point to worn pistons or rings. These signs alone do not prove the pistons are at fault; worn valve seals are another common cause of oil use.
Fits
The vehicles it fits include the 2013-2019 Ford Explorer V6 3.5L, the 2010-2019 Ford Taurus V6 3.5L and the 2010-2019 Ford Flex V6 3.5L. If your vehicle is not one of these, find its year, model and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Oversize: 0.25 mm
- Compression height: 31.25 mm
- Piston pin outside diameter: 23.00 mm
- Top compression ring thickness: 1.50 mm
- Second compression ring thickness: 1.20 mm
- Quantity per application: 6
Build and materials
- Piston material: Hypereutectic
- Construction: Cast
- Piston head type: Dome
- Coating: Duroshield graphite
- Condition: New
- Country of origin: India
In the box
One piston set for the engine. The 2013-2019 Ford Explorer V6 3.5L takes six pistons. Assembly lubricant is not included.
Interchange: 224-4037-0.25MM
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Is the Sealed H1524CPLR .25MM piston set right for a 2013-2019 Ford Explorer V6 3.5L?
Yes. Sealed H1524CPLR .25MM fits the 2013-2019 Ford Explorer V6 3.5L, and the 2010-2019 Ford Taurus V6 3.5L also takes it. If your vehicle is different, look it up in the "Vehicles it fits" section.
Does this piston set fit the 2010-2019 Ford Flex V6 3.5L?
Yes. Sealed H1524CPLR .25MM is listed for the 2010-2019 Ford Flex V6 3.5L, which takes six pistons.
What does 0.25 mm oversize mean on these Sealed pistons?
Sealed H1524CPLR .25MM pistons are made 0.25 mm larger than standard size, for cylinders machined to that oversize.
What is the piston pin diameter and compression height on this piston set?
The piston pin outside diameter is 23.00 mm and the compression height is 31.25 mm. The pin bores suit either pin installation method.
Does number 224-4037-0.25MM cross-reference to this piston set?
Yes. 224-4037-0.25MM is listed as an interchange number for Sealed H1524CPLR .25MM.
