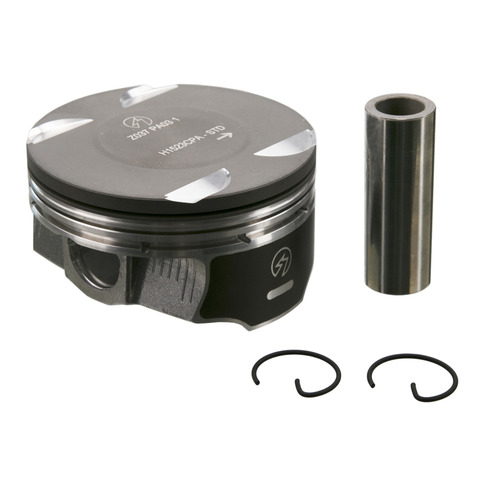

Sealed H1523CPA .25MM piston set for the 2011-2017 Ford F-150 V8 5.0L and other vehicles pushes down on the connecting rod under combustion pressure. The set meets or exceeds OEM specifications.
- Cast with S2N for strength and durability
- Hypereutectic piston material with a flat piston head
- Casting and machining that provide reliability, durability and long part life
- Exacting tolerances
- Up-tilt ring grooves improve piston-to-ring sealing and blow-by control
- Oversized by 0.25 mm
Quick facts
- Part: Sealed H1523CPA .25MM piston set
- Also called: engine piston set
- Fits: 2011-2017 Ford F-150 V8 5.0L and other vehicles
- Material: Hypereutectic
- Condition: New
Oil burning, a tapping knock or low compression can mean worn pistons, but worn piston rings or a damaged cylinder bore can produce those signs too, so find which one is at fault before you order.
Fits
This engine piston set fits the 2011-2017 Ford F-150 V8 5.0L and the 2011-2017 Ford Mustang V8 5.0L, and each of them takes eight.
Specifications
Fit and size
- Quantity per vehicle: 8
- Oversize: 0.25 mm
- Compression height: 29.40 mm
- Piston pin outside diameter: 22.00 mm
- Top compression ring thickness: 1.20 mm
- Second compression ring thickness: 1.20 mm
Build and materials
- Type: Cast piston set
- Piston material: Hypereutectic

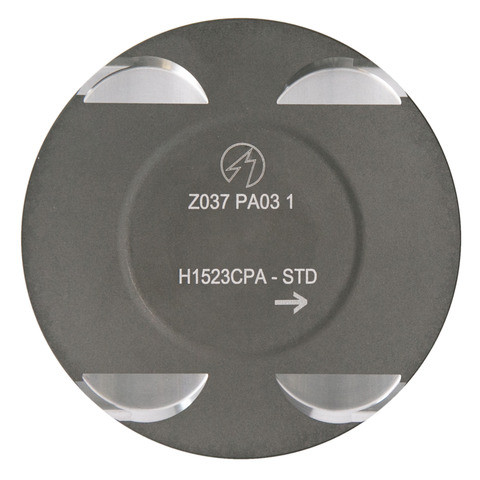

- Piston head: Flat
- Condition: New
- Country of origin: India
In the box
The piston set. Assembly lubricant is not included.
Interchange: P4299.10 · P5092(8).25 · 224-3897-0.25MM
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
P4299.10, P5092(8).25, 224-3897-0.25MM
Frequently Asked Questions
Does the Sealed H1523CPA .25MM fit a 2011-2017 Ford Mustang V8 5.0L?
Yes. Sealed H1523CPA .25MM is listed for the 2011-2017 Ford Mustang V8 5.0L and for the 2011-2017 Ford F-150 V8 5.0L, and each takes eight.
What does the .25MM mean on this piston set?
It marks an oversized piston set, with an oversized amount of 0.25 mm. The piston pin outside diameter is 22.00 mm and the compression height is 29.40 mm.
What do the up-tilt ring grooves do on these pistons?
They improve piston-to-ring sealing and help control blow-by. The top and second compression rings are each 1.20 mm thick.
Does this piston set come with assembly lubricant?
No. Assembly lubricant is not included with this piston set, so it has to be sourced separately.
Does Sealed H1523CPA .25MM replace 224-3897-0.25MM?
Yes. Sealed H1523CPA .25MM is listed as a replacement for 224-3897-0.25MM.
