Piston Set for 2011-2017 Ford F-150 & More - Sealed Power H1523CPA

$514.99

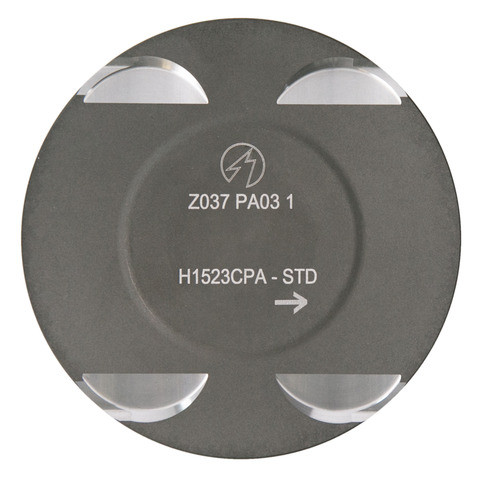

Sealed Power Engine Piston Set H1523CPA - view 2

Part number: H1523CPA

UPC: 019826219756

Condition: New

Weight: 8.30 LBS

Pack of 8

$514.99

Current Stock: 194

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

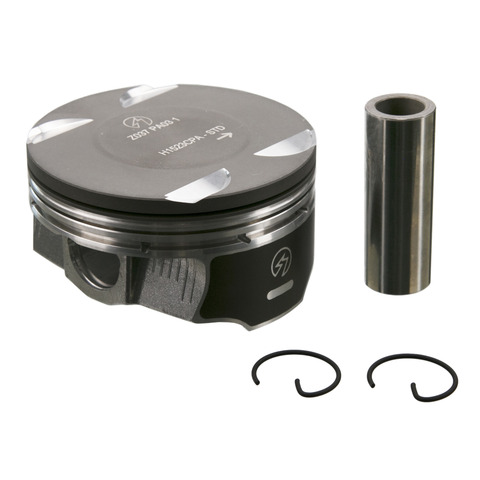

Sealed Power Engine Piston Set P/N:H1523CPA (Pack of 8)

$514.99

Description

Sealed Power H1523CPA piston set for the 2011-2017 Ford F-150 V8 5.0L and other vehicles transfers combustion force from the cylinder to the connecting rod. This engine piston set has flat-head pistons.

Hypereutectic piston cast with S2N proprietary alloy
Duroshield® graphite coated piston helps prevent scuffing of the skirt and cylinder wall
Anodized ring grooves are machined to reduce oil consumption, blow-by and emissions and to extend engine life
Ultra-precise pin bores with machined lube slots for controlled lubrication tolerances with either pin installation method

Quick facts

Part: Sealed Power H1523CPA piston set
Also called: engine piston set
Fits: 2011-2017 Ford F-150 V8 5.0L and other vehicles
Material: Hypereutectic
Condition: New

Heavy oil consumption, blow-by or a tapping noise from the engine can mean worn pistons. These signs alone do not prove the pistons are the problem, since worn valve seals can also burn oil.

Fits

It fits the 2011-2017 Ford F-150 V8 5.0L and the 2011-2017 Ford Mustang V8 5.0L.

Specifications

Fit and size

Quantity per vehicle: 8
Piston head type: Flat
Compression height: 29.40 mm
Piston pin outside diameter: 22.00 mm
Top compression ring thickness: 1.20 mm
Second compression ring thickness: 1.20 mm
Oversized: No

Build and materials

Construction: Cast
Piston material: Hypereutectic
Coating: Duroshield graphite
Ring grooves: Anodized
Condition: New
Country of origin: India

In the box

This listing is the piston set for an engine that takes eight pistons. Assembly lubricant is not included.

Interchange: P5092(8)STD · 224-3897
P4299

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

P4299, P5092(8)STD, 224-3897

Buyer's Q&A

Frequently Asked Questions

Are these Sealed Power pistons the right set for the 2011-2017 Ford F-150 V8 5.0L?

Yes. Sealed Power H1523CPA fits the 2011-2017 Ford F-150 V8 5.0L and the 2011-2017 Ford Mustang V8 5.0L.

Are Sealed Power hypereutectic pistons cast or forged?

Cast. The Sealed Power H1523CPA is a hypereutectic piston cast with S2N proprietary alloy.

Does this Sealed Power piston set come with assembly lubricant?

No. Assembly lubricant is not included with this piston set, so have it on hand for the build.

What is the pin diameter on this Sealed Power engine piston?

On the Sealed Power H1523CPA, the piston pin outside diameter is 22.00 mm and the compression height is 29.40 mm. The top and second compression rings are each 1.20 mm thick.

Do Sealed Power cast pistons have a coating?

Yes. These pistons have a Duroshield graphite coating that helps prevent scuffing of the skirt and cylinder wall, and the ring grooves are anodized.
