Engine Piston for 1997-2003 Ford F-150 & More - Sealed Power H850CP

$408.99

Vehicles this part fits

    Part number: H850CP
    UPC: 614046344402
    Condition: New
    Weight: 4.49 LBS
    Pack of 6
    $408.99
    Adding to cart… The item has been added

    Have questions?

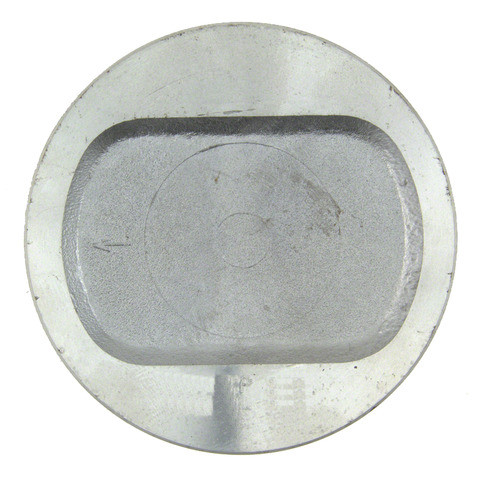

    Sealed Power Engine Piston Set P/N:H850CP (Pack of 6)
    Sealed Power Engine Piston Set P/N:H850CP (Pack of 6)
    $408.99
    $408.99

    Sealed Power H850CP engine piston for the 1997-2003 Ford F-150 V6 4.2L and other vehicles seals the cylinder and passes combustion force to the connecting rod. These Sealed Power hypereutectic pistons are a cast set with a recessed head.

    • Helps improve cylinder sealing for less blow-by
    • Retains standard ring gaps in top groove
    • DUROSHIELD® skirt-coated piston
    • Moly-graphite coating reduces friction for higher fuel economy
    • Piston designed to help prevent damage from inadequate lubrication on start-up

    Quick facts

    • Part: Sealed Power H850CP engine piston
    • Fits: 1997-2003 Ford F-150 V6 4.2L and other vehicles
    • Material: Hypereutectic
    • Condition: New

    Oil burning, blue exhaust smoke, low compression or a knock from the engine can mean worn pistons. Worn piston rings, a scored cylinder wall or leaking valve seals can be behind those signs too, so find the cause before buying pistons.

    Fits

    The 1997-2003 Ford F-150 V6 4.2L, the 2004-2007 Ford Freestar V6 4.2L and the 2004-2007 Mercury Monterey V6 4.2L all take this piston set, and it fits more vehicles besides. Open the "Vehicles it fits" section to check your exact model and engine. The 1997-2003 Ford F-150 V6 4.2L takes six pistons.

    Specifications

    Fit and size

    • Pistons per vehicle: 6
    • Bore diameter: 3.8100 in
    • Piston pin outside diameter: 0.906 in (23.012 mm)
    • Compression height: 1.263 in
    • Pin offset: 0.03 in (0.762 mm)
    • Size: not oversized

    Build and materials

    • Piston material: Hypereutectic
    • Piston head type: Recessed
    • Skirt coating: DUROSHIELD®
    • Construction: Cast piston set
    • Condition: New
    • Country of origin: India

    In the box

    One engine piston set. Assembly lubricant is not included.

    Interchange: P3036(6)STD · 224-3404
    TC3404 · P4123 · F65Z6108AB · XL3Z6108BA · H3152

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    TC3404, P4123, P3036(6)STD, F65Z6108AB, XL3Z6108BA, 224-3404, H3152

    Frequently Asked Questions

    Do these Sealed Power pistons fit the 2004-2007 Ford Freestar V6 4.2L?

    Yes. Sealed Power H850CP fits the 2004-2007 Ford Freestar V6 4.2L, which takes six pistons. Open the "Vehicles it fits" section to check other models and engines.

    Is assembly lubricant included with the Sealed Power H850CP?

    No. Sealed Power H850CP does not include assembly lubricant.

    What pin size does this Sealed Power engine piston use?

    The piston pin outside diameter is 0.906 in (23.012 mm). Pin offset is 0.03 in (0.762 mm) and compression height is 1.263 in.

    Are these Sealed Power cast pistons oversized?

    No. This set is not oversized. It has a 3.8100 in bore diameter and hypereutectic piston material.

    Does Sealed Power H850CP replace part number 224-3404?

    Yes. 224-3404 is one of the numbers Sealed Power H850CP replaces, along with the other cross-reference numbers on the Interchange line.
