Engine Piston Wrist Pin Bushing Set for 1993-2003 Buick Park Avenue & More - Sealed Power 3764Y

$102.99

Vehicles this part fits

    Part number: 3764Y
    UPC: 614046036024
    Condition: New
    Weight: 0.10 LBS
    Pack of 6
    $102.99
    Adding to cart… The item has been added

    Have questions?

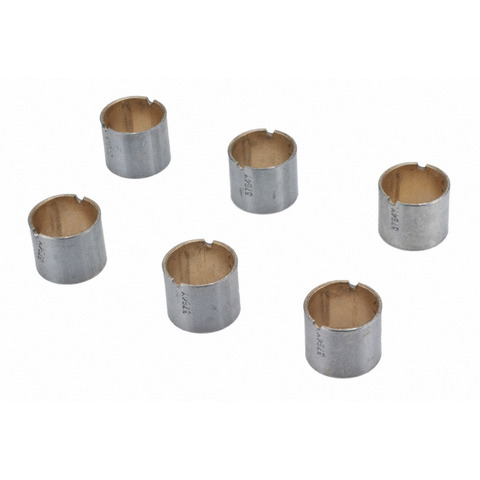

    Sealed Power Engine Piston Wrist Pin Bushing Set P/N:3764Y (Pack of 6)
    Sealed Power Engine Piston Wrist Pin Bushing Set P/N:3764Y (Pack of 6)
    $102.99
    $102.99

    Sealed Power 3764Y engine piston wrist pin bushing set for the 1993-2003 Buick Park Avenue V6 3.8L and other vehicles gives the piston wrist pin a lined bearing surface to turn on.

    • Steel-backed bronze alloy lining
    • Bronze alloy lining popular for fatigue resistance and strength
    • Conformability suited to older engine applications
    • Application-specific Sealed Power component

    Quick facts

    • Part: Sealed Power 3764Y engine piston wrist pin bushing set
    • Fits: 1993-2003 Buick Park Avenue V6 3.8L and other vehicles
    • Material: steel-backed bronze alloy lining
    • Condition: New

    Worn wrist pin bushings can show up as a knocking or ticking from the engine, and they are often replaced during an engine rebuild. These signs alone do not prove the bushings are at fault, since worn rod bearings can make a similar knock.

    Fits

    Besides the Park Avenue, the same V6 3.8L bushings fit the 1997-2003 Buick Regal V6 3.8L and the 1993-2003 Pontiac Bonneville V6 3.8L, and each one calls for six.

    Specifications

    Fit and size

    • Quantity per vehicle: 6
    • Maximum inside diameter: 22.428 mm (0.8830 in)
    • Maximum outside diameter: 25.629 mm (1.0090 in)
    • Maximum length: 21.590 mm (0.8500 in)

    Build and materials

    • Lining: steel-backed bronze alloy
    • Condition: New
    • Country of origin: United States

    Interchange: 2233646 · 24500406

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    2233646, 24500406

    Frequently Asked Questions

    Does the Sealed Power 3764Y wrist pin bushing set fit the 1993-2003 Buick Park Avenue V6 3.8L?

    Yes. Sealed Power 3764Y fits the 1993-2003 Buick Park Avenue V6 3.8L, which takes six. If your car is a different model, look it up in the "Vehicles it fits" section.

    What are the inside and outside diameters and the length of the Sealed Power 3764Y bushings?

    Sealed Power 3764Y has a maximum inside diameter of 22.428 mm (0.8830 in), a maximum outside diameter of 25.629 mm (1.0090 in) and a maximum length of 21.590 mm (0.8500 in).

    Is the lining on these wrist pin bushings bronze?

    Yes. The lining is a bronze alloy on a steel backing. This lining material offers less resistance to wear and corrosion than other materials.

    Does this bushing set cross to number 2233646?

    Yes. 2233646 is listed as an interchange number for Sealed Power 3764Y, along with 24500406.

    What noise can worn piston wrist pin bushings make?

    Worn wrist pin bushings can cause a ticking or knocking from the engine. A shop can measure the bushings against spec to confirm.
