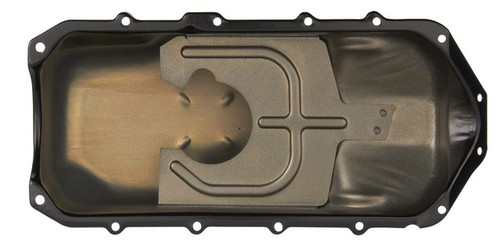

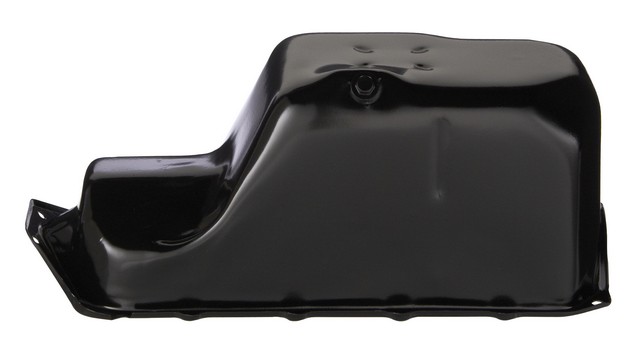

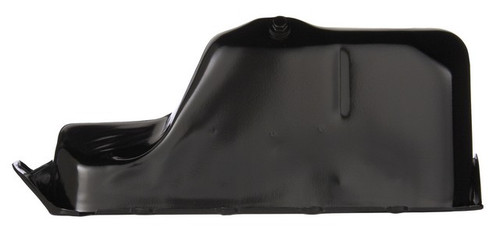

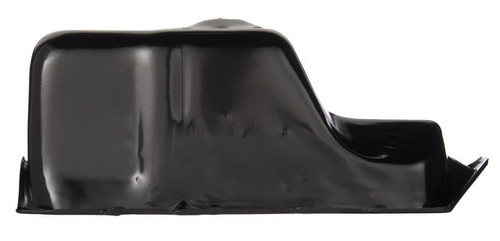

Spectra Premium GMP05A oil pan for the 1985-1986 Chevrolet Cavalier V6 2.8L and other vehicles holds the engine's oil in a sump at the bottom of the engine. This Spectra Premium oil pan is built to meet or exceed the performance of the original equipment it replaces.
- Cold Rolled Steel (EDDQ) body with a powder-coated finish
- Baffled wet-sump pan with the sump at the rear
- M14 - 1.5 drain thread
- 14 mounting holes
Quick facts
- Part: Spectra Premium GMP05A oil pan
- Also called: engine oil pan
- Fits: 1985-1986 Chevrolet Cavalier V6 2.8L and other vehicles
- Material: Cold Rolled Steel (EDDQ)
- Condition: New
Oil spots where the car is parked, a dented or cracked pan, or rust-through can mean the pan needs replacing. A leaking drain plug, valve cover gasket or rear main seal can also leave oil in the same area, so find the cause of the leak before you buy.
Fits
The 1985-1986 Chevrolet Cavalier V6 2.8L, the 1982-1986 Chevrolet Celebrity V6 2.8L and the 1983-1986 Buick Century V6 2.8L are among the cars this oil pan fits, and it fits more. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Quantity per vehicle: 1
- Maximum width: 235 mm
- Maximum depth: 196 mm
- Mounting holes: 14
- Drain thread size: M14 - 1.5
- Sump location: rear
Build and materials
- Type: wet sump, baffled
- Material: Cold Rolled Steel (EDDQ)
- Finish: powder coated
- Condition: new
- Country of origin: Canada
In the box
One oil pan with its drain plug; each vehicle takes one. The oil pickup, windage tray and crankshaft wiper are not included.
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
3310574, 103089, 264117, 14077873, 522B, SPIGMP05A, 501089, RGMP05A
Frequently Asked Questions
Is this an oil pan for the 1985-1986 Chevrolet Cavalier V6 2.8L?
Yes. Spectra Premium GMP05A fits the 1985-1986 Chevrolet Cavalier V6 2.8L, and that engine takes one pan.
Does this engine oil pan come with a drain plug?
Yes. Spectra Premium GMP05A includes its drain plug, but the oil pickup, windage tray and crankshaft wiper are not included.
What is the Spectra Premium GMP05A pan made of?
Spectra Premium GMP05A is made of Cold Rolled Steel (EDDQ) with a powder-coated finish.
Is this oil pan baffled, and where is the sump?
Yes. This pan is a baffled wet-sump type with the sump at the rear. It has 14 mounting holes.
How can I tell if my oil pan is leaking?
Oil spots where the car is parked, a falling oil level or an oil smell can be signs of a leak, and the source can be more than the pan. A shop can inspect underneath.
