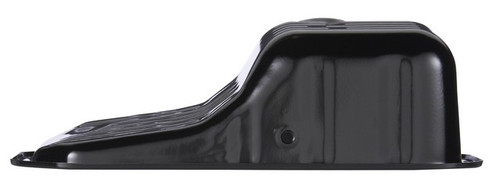

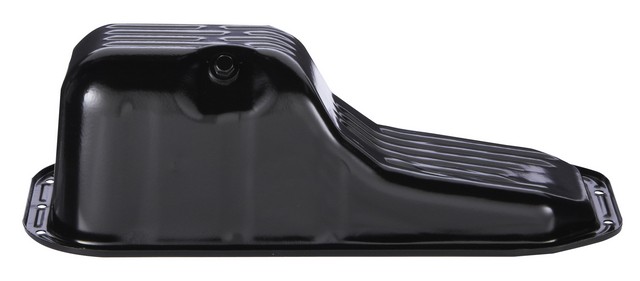

Spectra Premium GMP07B oil pan for the 1985-1988 Toyota Corolla 4-cylinder 1.6L and other vehicles holds engine oil in a wet sump at the bottom of the engine. Its engineering, manufacturing technology and quality control ensure it meets or exceeds the performance of the original equipment pan it replaces.

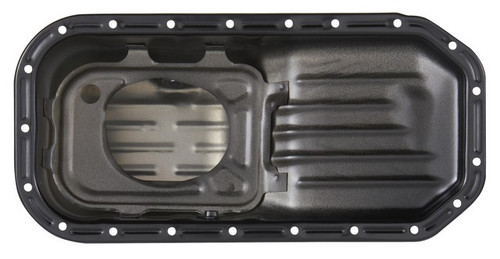

- Baffled wet sump with an oil level sensor port
- Cold rolled steel (EDDQ) construction with a powder-coated finish
- Drain plug included, with an M14 - 1.5 drain thread
- 21 mounting holes
- Front sump location
Quick facts
- Part: Spectra Premium GMP07B oil pan
- Also called: engine oil pan
- Fits: 1985-1988 Toyota Corolla 4-cylinder 1.6L and other vehicles
- Material: Cold Rolled Steel (EDDQ)
- Condition: New
A dent, a crack or oil spots where you park can point to a damaged pan. A leaking valve cover gasket, a rear main seal or a loose drain plug can show up the same way, so find where the oil is coming from before you buy a new pan.
Fits
It is a direct-fit oil pan replacement for the 1985-1988 Toyota Corolla 4-cylinder 1.6L and the 1985-1987 Toyota MR2 4-cylinder 1.6L.
Specifications
Fit and size
- Sump location: Front
- Quantity per vehicle: 1
- Maximum width: 222 mm
- Maximum depth: 140 mm
- Mounting holes: 21
- Drain thread size: M14 - 1.5
Build and materials
- Material: Cold rolled steel (EDDQ)
- Finish: Powder coated
- Sump type: Wet
- Condition: New
- Country of origin: Canada
In the box
One oil pan and one drain plug. This listing is one oil pan, which is the quantity the engine needs. A windage tray, pickup and crankshaft wiper are not included.
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
3310549, 3310576, 103096, 264303, 58061, SPIGMP07B, 501093, RGMP07B, 1210116010, 1210116030
Frequently Asked Questions
Is this oil pan the right one for the 1985-1988 Toyota Corolla 4-cylinder 1.6L?
Yes. Spectra Premium GMP07B is an oil pan replacement for the 1985-1988 Toyota Corolla 4-cylinder 1.6L.
Is this the oil pan for the 1985-1987 Toyota MR2 4-cylinder 1.6L?
Yes. Spectra Premium GMP07B also fits the 1985-1987 Toyota MR2 4-cylinder 1.6L.
Is the Spectra Premium oil pan baffled?
Yes, this wet-sump pan is baffled and has an oil level sensor port but no dipstick port.
Does the Spectra Premium engine oil pan come with a drain plug?
Yes, the drain plug is included and has an M14 - 1.5 thread; a windage tray, pickup and crankshaft wiper are not included.
How wide and deep is this oil pan?
Spectra Premium GMP07B measures 222 mm at its maximum width and 140 mm at its maximum depth, and it has 21 mounting holes.
