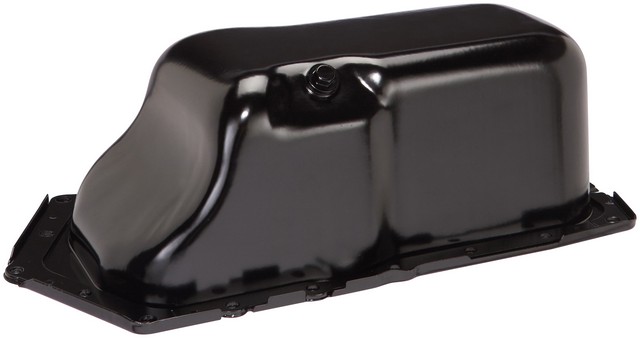

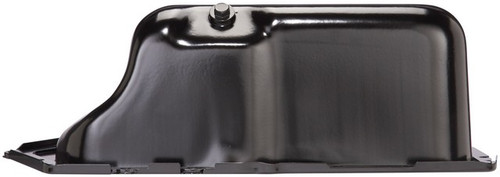

Spectra Premium GMP11B oil pan for the 2000-2005 Chevrolet Impala V6 3.8L and other vehicles holds the engine's oil in a wet sump. Each Spectra Premium oil pan meets or exceeds the performance of the original equipment it replaces.
- Cold Rolled Steel (EDDQ) construction with a powder coated finish
- Drain plug included, with an M14 - 1.5 drain thread
- Oil level sensor port
- 20 mounting holes
- Wet sump, 235 mm maximum width and 142 mm maximum depth
Quick facts
- Part: Spectra Premium GMP11B oil pan
- Also called: engine oil pan
- Fits: 2000-2005 Chevrolet Impala V6 3.8L and other vehicles
- Material: Cold Rolled Steel (EDDQ)
- Condition: New
Oil spots under the engine, a dented or cracked pan, or seepage along the pan edge can point to a pan that needs replacing. With the engine off and cool, look over the pan for cracks, dents and rust first, because a leak can also start at the drain plug or a nearby seal. Each engine takes one pan, and this listing is one pan.
Fits
This oil pan is listed for a wide range of Buick, Chevrolet, Oldsmobile and Pontiac models, led by the 1998-2005 Chevrolet Monte Carlo V6 3.8L and the 1995-2004 Buick Regal V6 3.8L. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Sump: front, wet
- Quantity per vehicle: 1
- Maximum width: 235 mm
- Maximum depth: 142 mm
- Mounting holes: 20
- Drain thread size: M14 - 1.5
Build and materials
- Material: Cold Rolled Steel (EDDQ)
- Finish: Powder coated
- Oil level sensor port: Yes
- Dipstick port: No
- Baffled: No
- Country of origin: Canada
In the box
One oil pan with its drain plug. The oil pickup, windage tray and crankshaft wiper are not included.
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
3310251, 103106, KGMP11B, 264124, 12563240, 24505348, 24507900, 24508692, 776, SPIGMP11B, 501099, OP37516
Frequently Asked Questions
Is this the oil pan for the 2000-2005 Chevrolet Impala V6 3.8L?
Yes. The Spectra Premium GMP11B is listed for the 2000-2005 Chevrolet Impala V6 3.8L. For another model, open the "Vehicles it fits" section to match your year and engine.
Is the GMP11B oil pan listed for the 1998-2005 Chevrolet Monte Carlo V6 3.8L?
Yes. The Spectra Premium GMP11B is listed for the 1998-2005 Chevrolet Monte Carlo V6 3.8L, and that engine takes one pan.
Is the Spectra Premium engine oil pan supplied with a drain plug?
Yes, the drain plug is included. The oil pickup, windage tray and crankshaft wiper are not included.
Does this oil pan have a dipstick port or an oil level sensor port?
It has an oil level sensor port and no dipstick port. The drain thread is M14 - 1.5, and the pan is not baffled.
Is the GMP11B oil pan steel, and is it coated?
Yes. The Spectra Premium GMP11B is made of Cold Rolled Steel (EDDQ) with a powder coated finish.
