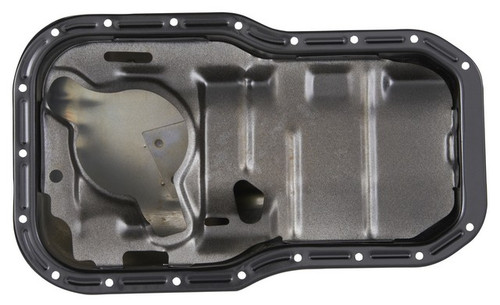

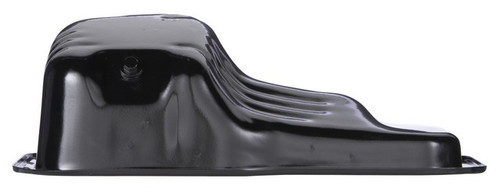

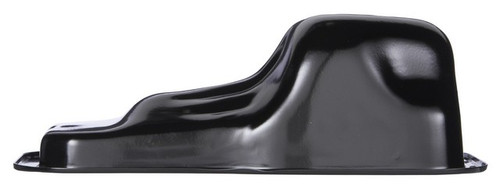

Spectra Premium TOP04A oil pan for the 1996-1998 Toyota RAV4 4-cylinder 2.0L and other vehicles holds the engine's oil in a wet sump. This Spectra Premium oil pan is made to meet or exceed the performance of the original equipment it replaces.
- Cold rolled steel (EDDQ) with a powder-coated finish
- Baffled wet-sump design with the sump at the front
- Drain plug included, with an M14 - 1.5 thread
- 19 mounting holes
Quick facts
- Part: Spectra Premium TOP04A oil pan
- Also called: engine oil pan
- Fits: 1996-1998 Toyota RAV4 4-cylinder 2.0L and other vehicles
- Material: Cold Rolled Steel (EDDQ)
- Condition: New
Oil dripping under the engine, or a dented, cracked or rusted engine oil pan, can mean the pan needs replacing. A leaking drain plug, a worn pan gasket or a leaking valve cover gasket can show the same drips, so find the cause before you buy.
Fits
Besides the 1996-1998 Toyota RAV4 4-cylinder 2.0L, this pan fits the 1987-1991 Toyota Camry 4-cylinder 2.0L, and each takes one. Celica oil pan fitment covers the 1986-1989 Toyota Celica 4-cylinder 2.0L and the 1990-1999 Celica 4-cylinder 2.2L. If your car is not named here, look up its year and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Sump location: Front
- Mounting holes: 19
- Maximum width: 276 mm
- Maximum depth: 147 mm
- Drain thread size: M14 - 1.5
Build and materials
- Sump type: Wet, baffled
- Material: Cold Rolled Steel (EDDQ)
- Finish: Powder coated
- Drain plug: Included
- Condition: New
- Country of origin: Canada
In the box
One oil pan with its drain plug. The oil pickup, windage tray and crankshaft wiper are not included.
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
3312472052215858, 3310054, 103290, 264325, 58100A, 58100B, SPITOP04A, 2002331, NOE2002331, 501156, OP37580, 1210174022, 1210174050
Frequently Asked Questions
Is this the right Toyota Camry oil pan for 1987-1991 models with the 4-cylinder 2.0L?
Yes. The Spectra Premium TOP04A oil pan fits the 1987-1991 Toyota Camry 4-cylinder 2.0L, and that engine takes one pan.
Does this Toyota RAV4 oil pan fit 1996-1998 models with the 4-cylinder 2.0L?
Yes. Spectra Premium TOP04A fits the 1996-1998 Toyota RAV4 4-cylinder 2.0L. If your car is not named, check its year and engine in the "Vehicles it fits" section.
Does this oil pan come with the oil pickup and windage tray?
No. The pan comes with its drain plug, but the oil pickup, windage tray and crankshaft wiper are not included.
What is this oil pan made of?
It is cold rolled steel (EDDQ) with a powder-coated finish. The pan is a baffled wet-sump design with the sump at the front.
What damage on a steel oil pan means it may need replacing?
Cracks, dents from impact, rust-through or oil dripping at the pan can mean replacement. Look with the engine off and cool; a shop can confirm the source of a leak.
