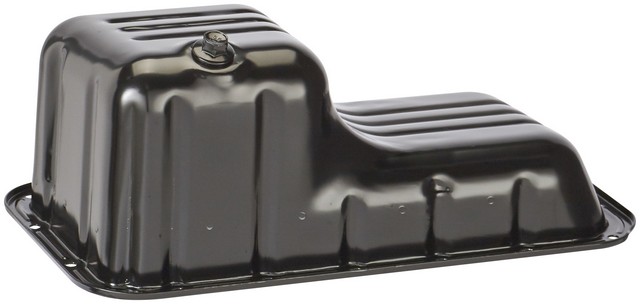

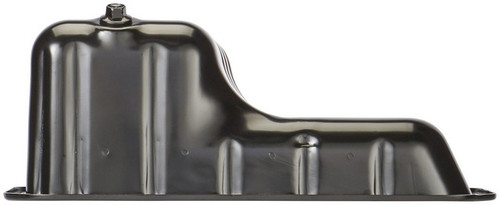

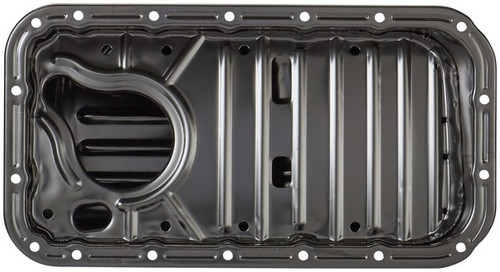

Spectra Premium GMP127A oil pan for the 2018-2021 Chevrolet Beat 4-cylinder 1.2L and other vehicles holds the engine's oil supply under the engine. Spectra Premium oil pans are engineered and quality-controlled to meet or exceed the performance of the original equipment they replace.
- Cold rolled steel (EDDQ) body with a powder-coated finish
- Baffled wet-sump pan design
- Drain opening threaded M12 - 1.75
- 18 mounting holes
Quick facts
- Part: Spectra Premium GMP127A oil pan
- Also called: engine oil pan
- Fits: 2018-2021 Chevrolet Beat 4-cylinder 1.2L and other vehicles
- Material: Cold Rolled Steel (EDDQ)
- Condition: New
Oil dripping near the pan, oil spots where the vehicle is parked, or a dented or cracked pan can mean the pan needs replacing. Those signs alone do not prove the pan is at fault, since a leaking gasket can look the same. Each engine takes one oil pan.
Fits
This oil pan fits the 2018-2021 Chevrolet Beat 4-cylinder 1.2L, the 2016-2017 Chevrolet Spark Classic 4-cylinder 1.2L and the 2013-2015 Chevrolet Spark 4-cylinder 1.2L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting holes: 18
- Maximum width: 211 mm
- Maximum depth: 138 mm
- Drain thread: M12 - 1.75
- Sump location: front
Build and materials
- Type: baffled, wet sump
- Material: Cold Rolled Steel (EDDQ)
- Finish: powder coated
- Condition: New
- Country of origin: Republic of Korea
In the box
One oil pan with a drain plug. The oil pickup, windage tray and crankshaft wiper are not included.
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
264267, 25186958, 25189002, SPIGMP127A, 99658011, NOE99658011, OP37757
Frequently Asked Questions
Does the Spectra Premium GMP127A oil pan fit the 2013-2015 Chevrolet Spark 4-cylinder 1.2L?
Yes. The Spectra Premium GMP127A oil pan fits the 2013-2015 Chevrolet Spark 4-cylinder 1.2L, and each engine takes one pan.
Is this Spectra Premium oil pan baffled?
Yes. Spectra Premium GMP127A is a baffled oil pan for a wet-sump engine.
Does the Spectra Premium engine oil pan come with a drain plug?
Yes. A drain plug is included, and the drain opening is threaded M12 - 1.75. The oil pickup, windage tray and crankshaft wiper are not included.
What are the material and dimensions of this oil pan?
This oil pan is cold rolled steel (EDDQ) with a powder-coated finish. Its maximum width is 211 mm and its maximum depth is 138 mm.
How can I tell whether a steel oil pan like the GMP127A is damaged?
Oil spots where the vehicle is parked, a falling oil level or a visible dent or crack in the pan can point to damage. A shop can inspect the pan safely from underneath.
