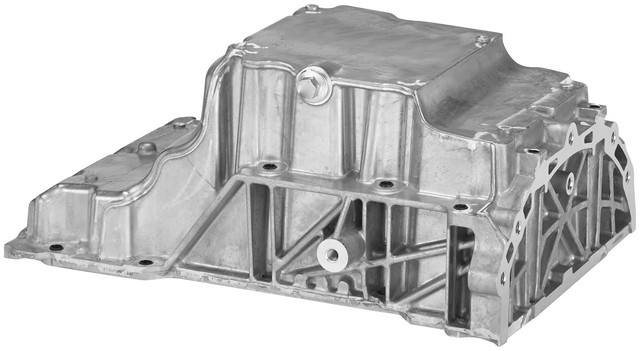

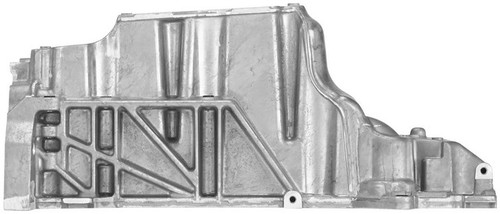

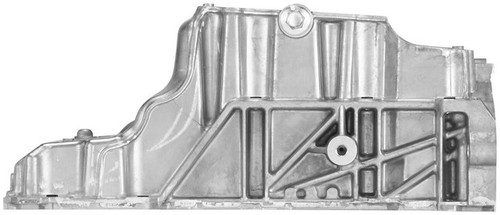

Spectra Premium GMP74B oil pan for the 2010-2015 Chevrolet Camaro V6 3.6L and other vehicles holds the engine's oil supply in a wet sump. Also called an engine oil pan, it is the reservoir the oil pickup draws from.
- Aluminum body with an uncoated finish
- Baffled wet sump with the sump at the rear
- 13 mounting holes
- Drain thread size M12 - 1.75
Quick facts
- Part: Spectra Premium GMP74B oil pan
- Also called: engine oil pan
- Fits: the 2010-2015 Chevrolet Camaro V6 3.6L and other vehicles
- Material: Aluminum
- Condition: New
Oil spots under the parked car, a cracked or dented pan, or damaged drain threads can mean the pan needs replacing. A loose drain plug, loose pan bolts or a leaking seal can leak oil too, so find where the oil is coming from before you buy. Each engine takes one pan.
Fits
It fits the 2010-2015 Chevrolet Camaro V6 3.6L and the 2011-2013 Cadillac CTS V6 3.0L or 3.6L. Spectra Premium oil pans are made to meet or exceed the performance of the original equipment they replace.
Specifications
Fit and size
- Quantity per vehicle: 1
- Sump location: Rear
- Mounting holes: 13
- Maximum width: 300 mm
- Maximum depth: 173 mm
- Drain thread size: M12 - 1.75
Build and materials
- Material: Aluminum
- Finish: Uncoated
- Sump type: Wet, baffled

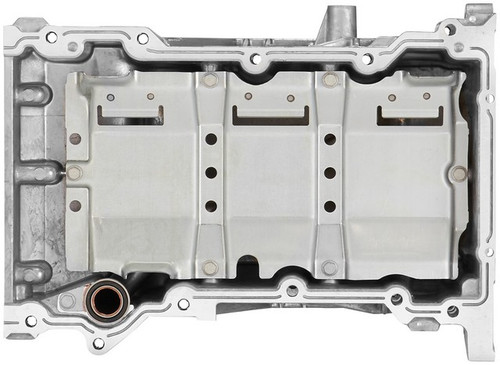

- Windage tray: included
- Condition: New
- Country of origin: China
In the box
One oil pan with its windage tray, pickup and drain plug. The crankshaft wiper is not included.
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
264264, 12611900, 12636675, 12641015, 31100194, SPIGMP74B, 99657941, NOE99657941
Frequently Asked Questions
Does the Spectra Premium GMP74B fit a 2010-2015 Chevrolet Camaro V6 3.6L?
Yes. The Spectra Premium GMP74B oil pan is listed for the 2010-2015 Chevrolet Camaro V6 3.6L, and that engine takes one pan.
Is this the oil pan for a 2011-2013 Cadillac CTS V6 3.0L or 3.6L?
Yes. This pan is listed for the 2011-2013 Cadillac CTS with either the V6 3.0L or the V6 3.6L engine.
Is the crankshaft wiper included with this oil pan?
No. The crankshaft wiper is not included. The pan comes with its drain plug, pickup and windage tray.
Is the Spectra Premium oil pan baffled?
Yes. The Spectra Premium GMP74B is a baffled wet-sump pan made of aluminum with an uncoated finish, and it includes a windage tray.
What size is the drain thread on this oil pan?
The drain thread size is M12 - 1.75. The pan has 13 mounting holes and the drain plug is included.
