Oil Pan for 2003-2009 Chevrolet C4500 Kodiak & More - Spectra Premium GMP75A

$290.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: GMP75A
    UPC: 671607015560
    Condition: New
    Weight: 24.75 LBS
    Item Package Quantity: 1
    $290.99
    Adding to cart… The item has been added

    Have questions?

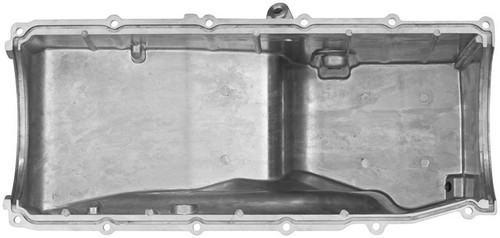

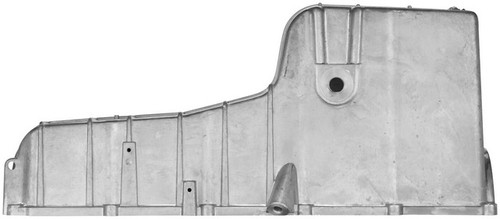

    Spectra Premium Engine Oil Pan P/N:GMP75A
    Spectra Premium Engine Oil Pan P/N:GMP75A
    $290.99
    $290.99

    Spectra Premium GMP75A oil pan for the 2003-2009 Chevrolet C4500 Kodiak V8 8.1L and other vehicles holds the engine's oil in the sump at the bottom of the engine. This Spectra Premium oil pan is built to meet or exceed the performance of the original equipment it replaces.

    • Aluminum construction with an uncoated finish
    • Rear wet sump design
    • Oil level sensor port
    • Drain plug included, with an M12 - 1.75 thread
    • 12 mounting holes

    Quick facts

    • Part: Spectra Premium GMP75A oil pan
    • Also called: engine oil pan
    • Fits: 2003-2009 Chevrolet C4500 Kodiak V8 8.1L and other vehicles
    • Material: Aluminum
    • Condition: New

    Oil drips under the engine, a dented or cracked pan, or damaged drain plug threads can mean the pan needs replacing. A drip alone does not prove the pan is at fault, since a worn drain plug can leave oil on the ground too.

    Fits

    This oil pan is a direct-fit replacement for the 2003-2009 Chevrolet C4500 Kodiak V8 8.1L, the 2003-2009 Chevrolet C5500 Kodiak V8 8.1L and the 2001-2009 Chevrolet C6500 Kodiak V8 8.1L, and each of these takes one.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Sump location: Rear
    • Maximum width: 290 mm
    • Maximum depth: 248 mm
    • Mounting holes: 12
    • Drain thread size: M12 - 1.75

    Build and materials

    • Material: Aluminum
    • Finish: Uncoated
    • Sump type: Wet
    • Baffled: No
    • Oil level sensor port: Yes
    • Condition: New
    • Country of origin: China

    In the box

    One oil pan with its drain plug. The pickup, windage tray and crankshaft wiper are not included.

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    3310116, 264068, 12560248, 12574833, 31100893, SPIGMP75A, 99656281, NOE99656281

    Frequently Asked Questions

    Will the Spectra Premium GMP75A fit a 2003-2009 Chevrolet C4500 Kodiak V8 8.1L?

    Yes. Spectra Premium GMP75A fits the 2003-2009 Chevrolet C4500 Kodiak V8 8.1L. If your truck is a different one, look it up in the Vehicles it fits section of this page.

    Does this oil pan come with a drain plug?

    Yes. Spectra Premium GMP75A includes the drain plug, which has an M12 - 1.75 thread. The pickup, windage tray and crankshaft wiper are not included.

    Is the Spectra Premium engine oil pan uncoated aluminum?

    Yes. The pan is made of aluminum and has an uncoated finish.

    Does this oil pan have a dipstick port or an oil level sensor port?

    This pan has an oil level sensor port but no dipstick port. It is a rear wet sump pan and is not baffled.

    How wide and deep is this aluminum oil pan?

    The maximum width is 290 mm and the maximum depth is 248 mm. The pan has 12 mounting holes.
