Oil Pan for 2005-2009 Buick LaCrosse & More - Spectra Premium GMP76A

$196.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: GMP76A
    UPC: 671607015591
    Condition: New
    Weight: 9.78 LBS
    Item Package Quantity: 1
    $196.99
    Adding to cart… The item has been added

    Have questions?

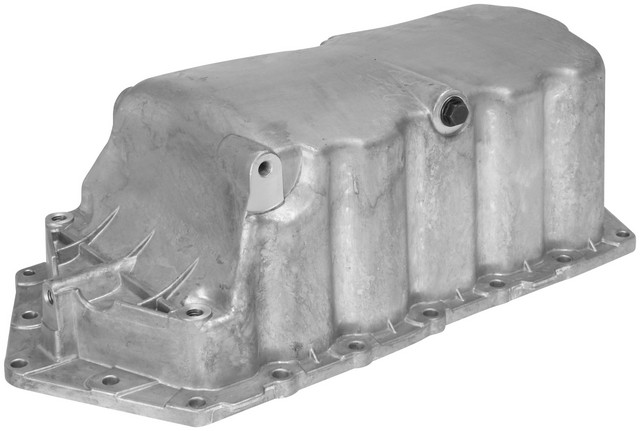

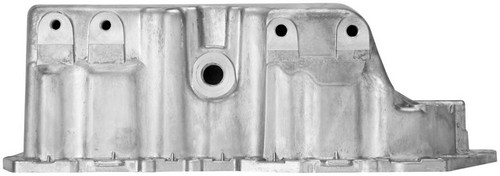

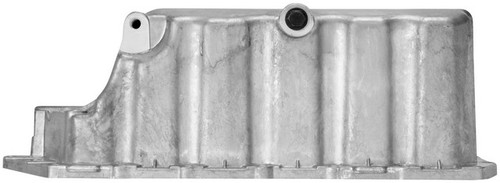

    Spectra Premium Engine Oil Pan P/N:GMP76A
    Spectra Premium Engine Oil Pan P/N:GMP76A
    $196.99
    $196.99

    Spectra Premium GMP76A oil pan for the 2005-2009 Buick LaCrosse V6 3.8L and other vehicles holds the engine's oil at the bottom of the engine. The pan also closes off the lower end of the engine.

    • Aluminum body with an uncoated finish
    • Baffled wet-sump design with a center sump location
    • Oil level sensor port built into the pan
    • M12 - 1.75 drain thread
    • 20 mounting holes

    Quick facts

    • Part: Spectra Premium GMP76A oil pan
    • Also called: engine oil pan
    • Fits: 2005-2009 Buick LaCrosse V6 3.8L and other vehicles
    • Material: Aluminum
    • Condition: New

    A pan that is cracked, dented or leaking oil around its edge or drain plug can mean it needs replacing. Oil under the engine alone does not prove the pan is at fault, since a worn pan gasket can leak in the same spot.

    Fits

    The pan is listed for a wide range of Buick and Pontiac models, including the 2005-2009 Buick Allure V6 3.8L, which takes one pan, and the 2006-2008 Buick Lucerne V6 3.8L. It is built to meet or exceed the performance of the original equipment it replaces. If your car is not named here, look up its year, model and engine in the "Vehicles it fits" section before you order.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Maximum width: 234 mm
    • Maximum depth: 134 mm
    • Mounting holes: 20
    • Drain thread size: M12 - 1.75

    Build and materials

    • Material: Aluminum
    • Finish: Uncoated
    • Type: wet sump, baffled, center sump location
    • Oil level sensor port: yes
    • Condition: New
    • Country of origin: China

    In the box

    One oil pan with its drain plug. The oil pickup, windage tray and crankshaft wiper are not included.

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    3310308, 264063, 12581549, 12597244, 31100999, SPIGMP76A, 99656241, NOE99656241

    Frequently Asked Questions

    Does the Spectra Premium GMP76A oil pan fit the 2006-2008 Buick Lucerne V6 3.8L?

    Yes. Spectra Premium GMP76A is listed for the 2006-2008 Buick Lucerne V6 3.8L, and that car takes one pan.

    Does the GMP76A oil pan include a drain plug, and what is its thread?

    Yes, the drain plug is included, with an M12 - 1.75 thread. The oil pickup, windage tray and crankshaft wiper are not included.

    Is the Spectra Premium engine oil pan baffled?

    Yes. The Spectra Premium GMP76A is a baffled wet-sump pan made of aluminum with an uncoated finish.

    Does this oil pan have a port for an oil level sensor or a dipstick?

    Yes for an oil level sensor, no for a dipstick: the pan has an oil level sensor port but no dipstick port.

    How do I check this oil pan for damage?

    With the engine off and cool, look for cracks, dents, or oil seeping around the edge and the drain plug. A shop can look further if you cannot see where the oil is coming from.
