Oil Pan for 1988-1995 Honda Civic & More - Spectra Premium HOP03A

$109.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: HOP03A
    UPC: 671607604450
    Condition: New
    Weight: 10.06 LBS
    Item Package Quantity: 1
    $109.99
    Adding to cart… The item has been added

    Have questions?

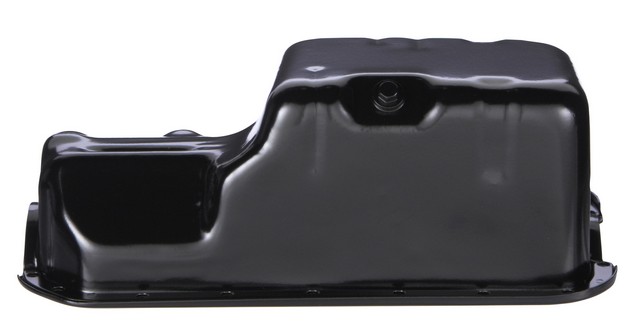

    Spectra Premium Engine Oil Pan P/N:HOP03A
    Spectra Premium Engine Oil Pan P/N:HOP03A
    $109.99
    $109.99

    Spectra Premium HOP03A oil pan for the 1988-1995 Honda Civic 4-cylinder 1.5L or 1.6L and other vehicles holds the engine's oil in the sump at the bottom of the engine. It meets or exceeds the performance of the original equipment it replaces.

    • Cold rolled steel (EDDQ) body with a powder-coated finish
    • Baffled wet-sump design
    • Drain plug included with the pan
    • 18 mounting holes

    Quick facts

    • Part: Spectra Premium HOP03A oil pan
    • Also called: engine oil pan
    • Fits: 1988-1995 Honda Civic 4-cylinder 1.5L or 1.6L and other vehicles
    • Material: Cold rolled steel (EDDQ)
    • Condition: New

    Oil on the underside of the engine, a dented or rusted pan, or a seam that weeps oil can mean the pan needs replacing. These signs alone do not prove the pan is at fault, since a leaking valve cover gasket can drip oil down onto it.

    Fits

    This oil pan fits the 1988-1995 Honda Civic 4-cylinder 1.5L or 1.6L and the 1993-1995 Honda Civic Del Sol 4-cylinder 1.5L or 1.6L. It is also an oil pan for the 1988-1991 Honda CRX 4-cylinder 1.5L or 1.6L. Each engine takes one pan.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Maximum width: 244 mm
    • Maximum depth: 145 mm
    • Mounting holes: 18
    • Drain thread size: M14 - 1.5
    • Sump location: Front

    Build and materials

    • Material: Cold rolled steel (EDDQ)
    • Finish: Powder coated
    • Sump type: Wet, baffled
    • Condition: New
    • Country of origin: Canada

    In the box

    One oil pan with its drain plug. The oil pickup, windage tray and crankshaft wiper are not included.

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    3312469904732322, 3310261, 103064, KHOP3A, 264402, 58193, 58194, 58337, 11200P08000, 11200P08010, 11200P08020, 11200PM3000, 11200PM3010, 11200PM3020, SPIHOP03A, 501127, RHOP03A, OP37570

    Frequently Asked Questions

    Does the Spectra Premium HOP03A oil pan fit the 1988-1995 Honda Civic 4-cylinder 1.6L?

    Yes. The Spectra Premium HOP03A fits the 1988-1995 Honda Civic with the 4-cylinder 1.5L or 1.6L engine.

    Does this engine oil pan come with a drain plug?

    Yes. The Spectra Premium HOP03A includes the drain plug. The oil pickup, windage tray and crankshaft wiper are not included.

    Is this oil pan baffled?

    Yes. This oil pan is a baffled wet-sump type with the sump at the front.

    What should I look for on the pan when checking for leaks?

    With the engine off and cool, look for dents, cracks, rust or oil seepage along the pan seam and around the drain plug. If you find any, have the pan checked or replaced promptly.

    What size is the drain thread on the Spectra Premium HOP03A?

    The drain thread size is M14 - 1.5. The pan has 18 mounting holes and measures 244 mm wide and 145 mm deep at its maximum.
