Spectra Premium Engine Oil Pan P/N:CRP74A

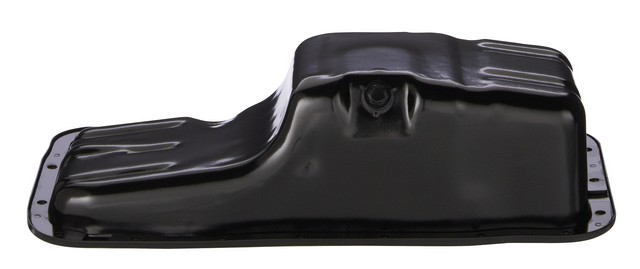

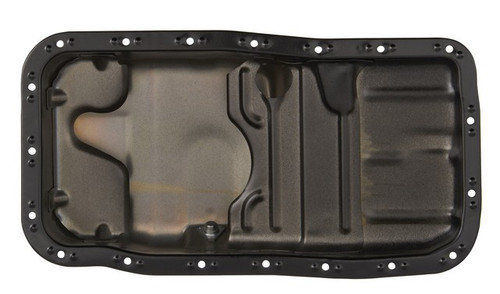

Spectra Premium HOP06A oil pan for the 1999-2000 Honda Civic 4-cylinder 1.6L and other vehicles holds the engine oil in a wet sump. It catches the oil that drains down from the engine and keeps it there until the oil pump draws it back up.
A leaking or damaged pan can show up as oil drips under the engine, a dented or rusted pan, or oil wetness along its edge. With the engine off and cool, look the pan over and trace where the oil is coming from before you replace it, because oil from higher up the engine can run down onto the pan and look like a pan leak. Each engine takes one pan.
This is a direct-fit replacement oil pan for the 1990-2001 Acura Integra 4-cylinder 1.8L, the 1999-2000 Honda Civic 4-cylinder 1.6L and the 1994-1997 Honda Civic Del Sol 4-cylinder 1.6L. It is made to meet or exceed the performance of the original equipment it replaces.
Fit and size
Build and materials
One oil pan with its drain plug. The pickup, windage tray and crankshaft wiper are not included.
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Is this oil pan for the 1999-2000 Honda Civic 4-cylinder 1.6L?
Yes. Spectra Premium HOP06A is a direct-fit oil pan for the 1999-2000 Honda Civic 4-cylinder 1.6L. It is a wet-sump pan with the sump at the front.
Does the HOP06A oil pan come with a drain plug?
Yes. Spectra Premium HOP06A includes a drain plug with an M14 - 1.5 thread. The pickup, windage tray and crankshaft wiper are not included.
What is the finish and material of this Spectra Premium oil pan?
The pan is Cold Rolled Steel (EDDQ) with a powder-coated finish. It is a baffled wet-sump design.
Does this engine oil pan have a dipstick port or an oil level sensor port?
No. The pan has neither a dipstick port nor an oil level sensor port. It is a baffled wet-sump pan with the sump at the front.
What are the maximum width and depth of the HOP06A pan?
Maximum width is 251 mm and maximum depth is 122 mm. The pan has 19 mounting holes.
