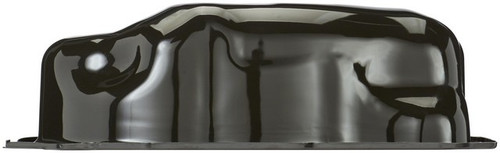

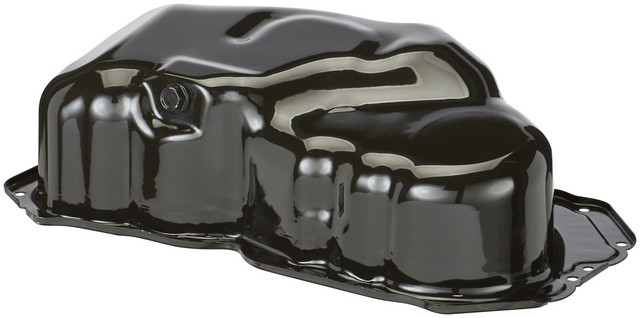

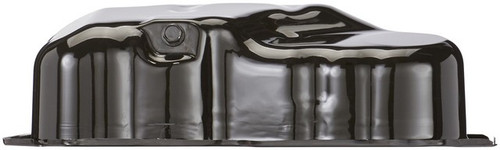

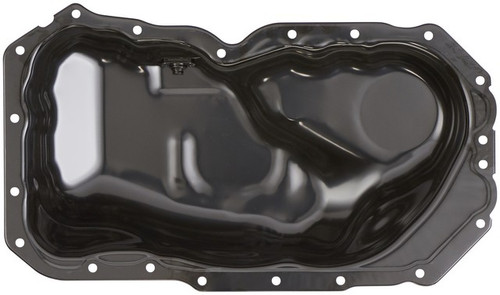

Spectra Premium MZP20A oil pan for the 2014-2017 Mazda CX-5 4-cylinder 2.5L and other vehicles holds the engine's oil in the bottom of the engine. This Spectra Premium oil pan collects the oil that drains back down through the engine.
- Cold Rolled Steel (EDDQ) body with a powder-coated finish
- Wet-sump design with the sump at the front
- 20 mounting holes
- Maximum width of 265 mm and maximum depth of 138 mm
- M14 - 1.5 drain thread
Quick facts
- Part: Spectra Premium MZP20A oil pan
- Also called: engine oil pan
- Fits: 2014-2017 Mazda CX-5 4-cylinder 2.5L and other vehicles
- Material: Cold Rolled Steel (EDDQ)
- Condition: New
A dented, cracked or rusted pan, oil spots under the engine or oil seeping along the pan edge can mean the pan needs replacing. These signs alone do not prove the pan is at fault, since a worn pan gasket can leak the same way.
Fits
The vehicles it fits include the 2014-2017 Mazda CX-5 4-cylinder 2.5L, the 2014-2018 Mazda 3 4-cylinder 2.5L and the 2014-2018 Mazda 3 Sport 4-cylinder 2.5L. The 2014-2018 Mazda 3 4-cylinder 2.5L takes one pan. Driving something else? Find your car in the "Vehicles it fits" section on this page. The engineering, manufacturing technology and quality control behind Spectra Premium oil pans are meant to meet or exceed the performance of the original equipment they replace.
Specifications
Fit and size
- Sump location: front
- Quantity per vehicle: 1
- Mounting holes: 20
- Maximum width: 265 mm
- Maximum depth: 138 mm
- Drain thread size: M14 - 1.5
Build and materials
- Type: wet sump, not baffled
- Material: Cold Rolled Steel (EDDQ)
- Finish: powder coated
- Ports: no dipstick port, no oil level sensor port
- Country of origin: Japan
- Condition: New
In the box
One oil pan with its drain plug. The oil pickup, windage tray and crankshaft wiper are not included.
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
3310754, KMZP20A, 264281, 59513, SPIMZP20A, PY0110400, PY0110400A, PYFA10400B, PYFA10400C, 99658271, NOE99658271, OP37736
Frequently Asked Questions
Is this the right oil pan for a 2014-2018 Mazda 3 4-cylinder 2.5L?
Yes. Spectra Premium MZP20A is listed for the 2014-2018 Mazda 3 4-cylinder 2.5L, and that car takes one pan.
Is the MZP20A the oil pan for a 2014-2017 Mazda CX-5 4-cylinder 2.5L?
Yes. Spectra Premium MZP20A is listed for the 2014-2017 Mazda CX-5 4-cylinder 2.5L. Other cars are in the "Vehicles it fits" section on this page.
Does the Spectra Premium engine oil pan come with a drain plug?
Yes. The pan comes with its drain plug, which has an M14 - 1.5 thread. The oil pickup, windage tray and crankshaft wiper are not included.
What is this oil pan made of, and is it coated?
This pan is made of Cold Rolled Steel (EDDQ) and has a powder-coated finish.
Does this oil pan have a dipstick port or a baffle?
No. This pan has no dipstick port and is not baffled. It also has no oil level sensor port.
