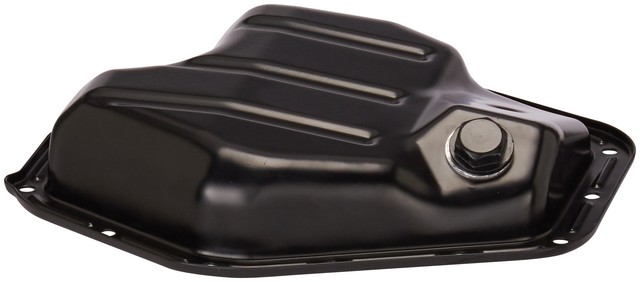

Spectra Premium SUP05A oil pan for the 2001-2009 Subaru Outback H6 3.0L and other vehicles collects and holds the oil that lubricates the engine. Spectra Premium oil pans are made to meet or exceed the performance of the original equipment they replace.
- Cold rolled steel (EDDQ) body with a powder-coated finish
- Drain plug included, with an M20 - 1.5 drain thread
- Wet sump with the sump at the center
- 15 mounting holes
Quick facts
- Part: Spectra Premium SUP05A oil pan
- Also called: engine oil pan
- Fits: 2001-2009 Subaru Outback H6 3.0L and other vehicles
- Material: Cold Rolled Steel (EDDQ)
- Condition: New
Oil spots where you park, a dented or rusted pan, or a stripped drain thread can mean the pan is worn, though a leaking pan gasket or rear main seal can drip from the same area, so find the source before replacing it.
Fits
This oil pan for the 2001-2009 Subaru Outback H6 3.0L also fits the 2008-2009 Subaru Legacy H6 3.0L and the 2006-2007 Subaru B9 Tribeca H6 3.0L, and each takes a single pan.
Specifications
Fit and size
- Quantity per vehicle: 1
- Maximum width: 260 mm
- Maximum depth: 49 mm
- Drain thread size: M20 - 1.5
- Mounting holes: 15
- Sump location: center
Build and materials
- Material: Cold Rolled Steel (EDDQ)
- Finish: powder coated
- Sump type: wet, not baffled
- Ports: no oil level sensor port, no dipstick port
- Condition: new
- Country of origin: China
In the box
One oil pan with its drain plug. The oil pickup, windage tray and crankshaft wiper are not included.
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
3312469904732376, 3310214, 264590, 31158671, SPISUP05A, 20024361, NOE20024361, 11109AA122
Frequently Asked Questions
Is this the right oil pan for the 2008-2009 Subaru Legacy H6 3.0L?
Yes. Spectra Premium SUP05A fits the 2008-2009 Subaru Legacy H6 3.0L, and that car takes one pan.
Does this engine oil pan have a dipstick port?
No. The Spectra Premium SUP05A has no dipstick port and no oil level sensor port. It does have a drain plug with an M20 - 1.5 thread.
Is this Spectra Premium oil pan powder coated?
Yes. The pan is cold rolled steel (EDDQ) with a powder-coated finish.
Does the SUP05A oil pan come with a drain plug and an oil pickup?
This pan comes with its drain plug. The oil pickup, windage tray and crankshaft wiper are not included.
What thread size does the drain on this oil pan take?
The drain thread size is M20 - 1.5. The pan is a wet sump type with the sump at the center and 15 mounting holes.
