Lower Oil Pan for 1990-2000 Lexus LS400 - Spectra Premium TOP28A

$110.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: TOP28A
    UPC: 671607013825
    Condition: New
    Weight: 10.02 LBS
    Item Package Quantity: 1
    $110.99
    Adding to cart… The item has been added

    Have questions?

    Spectra Premium Engine Oil Pan P/N:TOP28A
    Spectra Premium Engine Oil Pan P/N:TOP28A
    $110.99
    $110.99

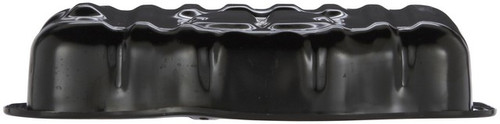

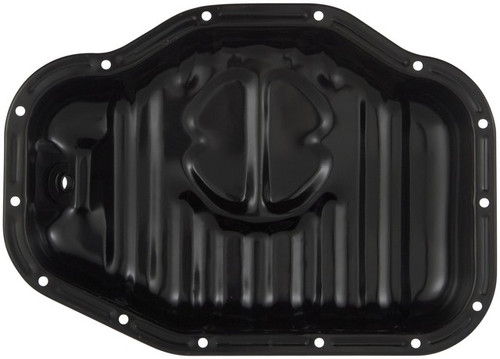

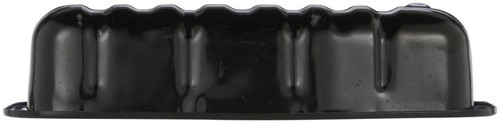

    Spectra Premium TOP28A lower oil pan for the 1990-2000 Lexus LS400 V8 4.0L holds the engine's oil at the bottom of the engine. This Spectra Premium oil pan is a wet-sump design with the sump at the front.

    • Cold Rolled Steel (EDDQ) construction
    • Powder-coated finish
    • Drain plug included, with an M12 - 1.25 drain thread
    • 14 mounting holes

    Quick facts

    • Part: Spectra Premium TOP28A oil pan
    • Also called: engine oil pan
    • Fits: 1990-2000 Lexus LS400 V8 4.0L
    • Position: Lower
    • Material: Cold Rolled Steel (EDDQ)
    • Condition: New

    Oil spots under the car, a dented or cracked pan, or a damaged drain thread can mean the pan needs replacing. These signs alone do not prove the pan is the problem; a leaking drain plug can leave similar drips.

    Fits

    It is an oil pan for the 1990-2000 Lexus LS400 V8 4.0L, which takes one. Its engineering, manufacturing technology and quality control are meant to meet or exceed the performance of the original equipment it replaces.

    Specifications

    Fit and size

    • Position: Lower
    • Quantity per vehicle: 1
    • Sump location: Front
    • Maximum width: 276 mm
    • Maximum depth: 86 mm
    • Mounting holes: 14
    • Drain thread size: M12 - 1.25

    Build and materials

    • Sump type: Wet
    • Material: Cold Rolled Steel (EDDQ)
    • Finish: Powder coated
    • Baffle, dipstick port and oil level sensor port: none
    • Condition: New
    • Country of origin: China

    In the box

    One oil pan with its drain plug. A windage tray, oil pickup and crankshaft wiper are not included.

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    3312472052215856, 3310225, 103286, 264320, 58538C, SPITOP28A, 1210250010, 1210250050, 1010145, A6060388313MTC, W01331905341, 2003702, NOE2003702, OP37698

    Frequently Asked Questions

    Does the Spectra Premium TOP28A fit a 1990-2000 Lexus LS400 V8 4.0L?

    Yes. Spectra Premium TOP28A is a lower oil pan for the 1990-2000 Lexus LS400 V8 4.0L, and that engine takes one.

    Is this Spectra Premium engine oil pan powder coated?

    Yes. The Spectra Premium TOP28A has a powder-coated finish, and the pan is made of Cold Rolled Steel (EDDQ).

    Does the TOP28A oil pan come with a drain plug?

    Yes. The drain plug is included, with an M12 - 1.25 thread. A windage tray, oil pickup and crankshaft wiper are not included.

    Does this oil pan have a dipstick port or an oil level sensor port?

    No. This pan has neither a dipstick port nor an oil level sensor port, and it is not baffled.

    How wide and deep is this lower oil pan?

    Maximum width is 276 mm and maximum depth is 86 mm. The pan has 14 mounting holes and a wet sump at the front.
