Lower Oil Pan for 2010-2017 Toyota Camry & More - Spectra Premium TOP34A

$122.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: TOP34A
    UPC: 671607015010
    Condition: New
    Weight: 5.48 LBS
    Item Package Quantity: 1
    $122.99
    Adding to cart… The item has been added

    Have questions?

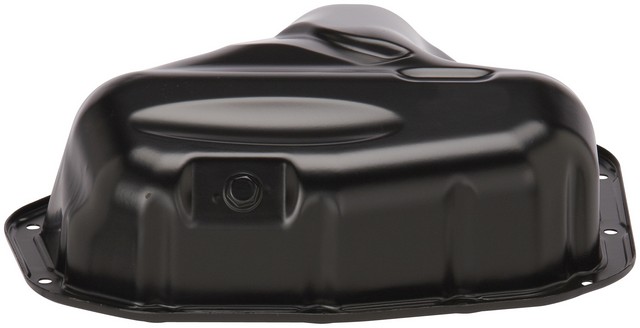

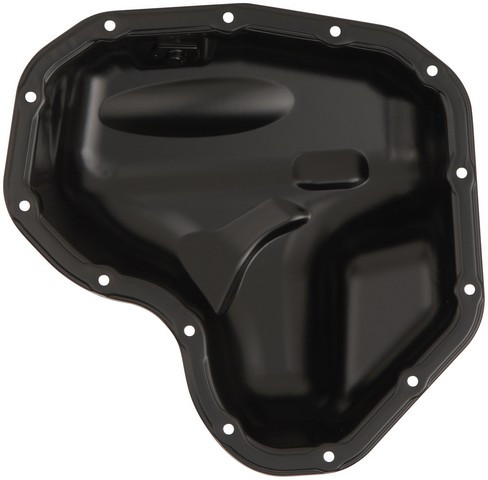

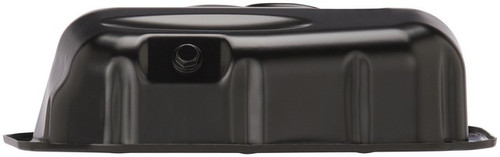

    Spectra Premium Engine Oil Pan P/N:TOP34A
    Spectra Premium Engine Oil Pan P/N:TOP34A
    $122.99
    $122.99

    Spectra Premium TOP34A lower oil pan for the 2010-2017 Toyota Camry 4-cylinder 2.5L and other vehicles holds the engine's oil in a wet sump at the bottom of the engine. This Spectra Premium oil pan is built to meet or exceed the performance of the original equipment it replaces.

    • Cold Rolled Steel (EDDQ) pan with a powder-coated finish
    • Wet sump type with the sump at the center
    • Drain plug included, with an M12 - 1.25 drain thread
    • 13 mounting holes
    • Maximum width of 340 mm and maximum depth of 94 mm

    Quick facts

    • Part: Spectra Premium TOP34A oil pan
    • Also called: engine oil pan
    • Fits: 2010-2017 Toyota Camry 4-cylinder 2.5L and other vehicles
    • Position: Lower
    • Material: Cold Rolled Steel (EDDQ)
    • Condition: New

    If the engine oil pan is leaking, you may see oil drips where the car is parked, a dented or cracked pan, or wet oil around the drain plug. With the engine off and cool, look over the pan and the plug first, because a leak at the plug or a nearby seal can look the same as a bad pan.

    Fits

    The 2010-2017 Toyota Camry 4-cylinder 2.5L, the 2009-2019 Toyota Highlander 4-cylinder 2.7L and the 2011-2013 Toyota Sienna 4-cylinder 2.7L all fit this pan, along with other vehicles. The 2009-2019 Toyota Highlander 4-cylinder 2.7L takes one pan.

    Specifications

    Fit and size

    • Position: Lower
    • Quantity per vehicle: 1
    • Maximum width: 340 mm
    • Maximum depth: 94 mm
    • Mounting holes: 13
    • Drain thread size: M12 - 1.25
    • Sump location: Center

    Build and materials

    • Sump type: Wet
    • Material: Cold Rolled Steel (EDDQ)
    • Finish: Powder coated
    • Dipstick port and oil level sensor port: none; not baffled
    • Condition: New
    • Country of origin: China

    In the box

    One oil pan with its drain plug. A pickup, windage tray and crankshaft wiper are not included.

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    3307350303715612, 3310188, KTOP34A, TY1414689, 264474, 31150359, SPITOP34A, 121010V010, 1210136040, 1010894, OP37492

    Frequently Asked Questions

    Is Spectra Premium TOP34A the oil pan for the 2010-2017 Toyota Camry 4-cylinder 2.5L?

    Yes. Spectra Premium TOP34A fits the 2010-2017 Toyota Camry 4-cylinder 2.5L and takes one per car. If your car is not named here, check the Vehicles it fits section on this page.

    Does this oil pan fit the 2011-2013 Toyota Sienna 4-cylinder 2.7L?

    Yes. Spectra Premium TOP34A fits the 2011-2013 Toyota Sienna 4-cylinder 2.7L, and it takes one pan per vehicle.

    Does the TOP34A oil pan come with a drain plug?

    Yes. Spectra Premium TOP34A includes the drain plug. A pickup, windage tray and crankshaft wiper are not included.

    Does this oil pan have a dipstick port or an oil level sensor port?

    No. This pan has neither port and is not baffled. It is a wet-sump pan with the sump at the center.

    What material and drain thread does this oil pan have?

    The pan is Cold Rolled Steel (EDDQ) with a powder-coated finish. The drain thread size is M12 - 1.25.
