Radiator for 2004-2006 Lexus RX330 - Spectra Premium CU13256

$233.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: CU13256
    UPC: 671607782219
    Condition: New
    Weight: 47.15 LBS
    Item Package Quantity: 1
    $233.99
    Adding to cart… The item has been added

    Have questions?

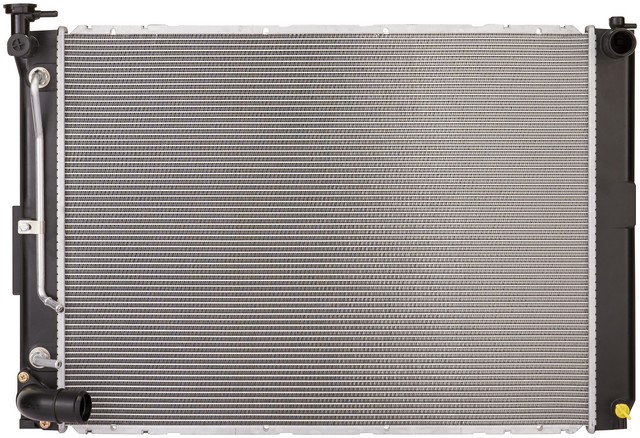

    Spectra Premium Radiator P/N:CU13256

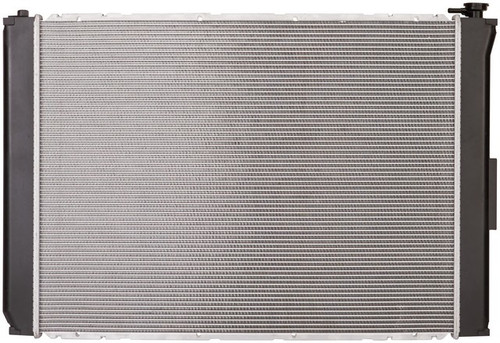

    Spectra Premium Radiator P/N:CU13256
    $233.99
    $233.99

    Spectra Premium CU13256 radiator for the 2004-2006 Lexus RX330 V6 3.3L cools engine coolant as it flows through an aluminum core. This Spectra Premium radiator is built to the same durability and expectations as the OE.

    • Cross-flow aluminum core with plastic tanks
    • Internal concentric transmission oil cooler with 10mm hose barb fittings
    • Saddle mounting type
    • Inlet at the top right and outlet at the bottom left

    Quick facts

    • Part: Spectra Premium CU13256 radiator
    • Fits: 2004-2006 Lexus RX330 V6 3.3L
    • Material: aluminum core, plastic tanks

    Coolant stains on the core or tanks, a falling coolant level or an engine that runs hot can mean the radiator is failing. A weak water pump, a stuck thermostat, a worn hose or a faulty radiator cap can be behind those signs too, so find the cause before buying.

    Fits

    This radiator is a direct-fit replacement for the 2004-2006 Lexus RX330 V6 3.3L.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Core height: 25.5625 in
    • Core width: 18.9375 in
    • Core thickness: 1 in, 1 row
    • Inlet diameter: 1.3125 in
    • Outlet diameter: 1.5625 in
    • Inlet header: 20 in long, 1.6875 in wide
    • Outlet header: 20 in long, 1.6875 in wide
    • Transmission oil cooler fitting spacing: 13.75 in

    Build and materials

    • Core material: aluminum
    • Tank material: plastic
    • Flow type: cross flow
    • Mounting type: saddle
    • Transmission oil cooler: internal, concentric, 10mm hose barb fittings
    • Engine oil cooler: not included
    • Frame: not included
    • Country of origin: Indonesia

    In the box

    One radiator with its internal transmission oil cooler; the vehicle takes one. A frame and an engine oil cooler are not included.

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    8013256, 13256, 2940, 3712, 0ATY5892, 2219388, 13256C, RAD13256, A2689-1, 1604120310, 1604120311, 1604120312, 1604120313, 1604120314, NR13256B, 646866, OR13256, 2391, 4113256, 432475, RA13256C

    Frequently Asked Questions

    Is this a 2004 Lexus RX330 radiator replacement for the V6 3.3L?

    Yes. Spectra Premium CU13256 is a direct-fit replacement for the 2004-2006 Lexus RX330 V6 3.3L.

    Can I use it as a 2006 Lexus RX330 radiator replacement on the V6 3.3L?

    Yes. The 2006 Lexus RX330 V6 3.3L is within the 2004-2006 years this radiator is listed for.

    Is the Spectra Premium CU13256 core aluminum or plastic?

    This Spectra Premium CU13256 radiator has an aluminum core and plastic tanks. The core is one row, cross flow, 25.5625 in high, 18.9375 in wide and 1 in thick.

    Does this radiator include a transmission oil cooler?

    Yes. It has an internal concentric transmission oil cooler with 10mm hose barb fittings, 13.75 in apart. A frame and an engine oil cooler are not included.

    How do I check a radiator for a leak before replacing it?

    With the engine off and cool, look for coolant stains or wet spots on the core and tanks. A rising temperature gauge or a dropping coolant level can also point to a radiator problem; a shop can pressure-test the system.
