Radiator for 2011-2013 Mazda 6 - Spectra Premium CU13389

$270.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: CU13389
    UPC: 671607782127
    Condition: New
    Weight: 29.16 LBS
    Item Package Quantity: 1
    $270.99
    Adding to cart… The item has been added

    Have questions?

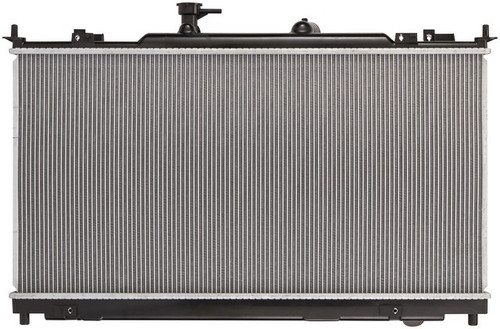

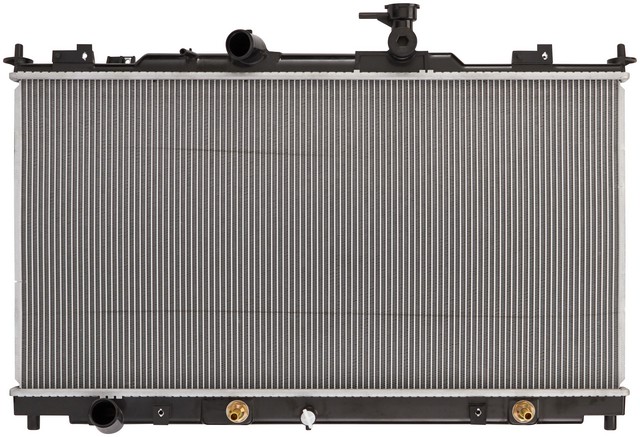

    Spectra Premium Radiator P/N:CU13389
    Spectra Premium Radiator P/N:CU13389
    $270.99
    $270.99

    Spectra Premium CU13389 radiator for the 2011-2013 Mazda 6 4-cylinder 2.5L passes engine coolant through its core so the engine can shed heat. This Spectra Premium radiator has the transmission oil cooler built in.

    • Aluminum core with plastic tanks
    • Down-flow design with a single core row
    • Concentric transmission oil cooler with 10 mm hose barb fittings, 13.75 in between fittings
    • Inlet at the top left and outlet at the bottom left, each 1.3125 in in diameter
    • Post mounting type

    Quick facts

    • Part: Spectra Premium CU13389 radiator
    • Fits: 2011-2013 Mazda 6 4-cylinder 2.5L
    • Material: aluminum core, plastic tanks
    • Condition: New

    A leaking or clogged radiator can show up as an engine running hot, coolant loss or damp spots under the car. Before you replace it, look it over with the engine off and cool for wet or crusty residue on the tanks and core, because a hose or the cap can leak too.

    Fits

    It is a direct-fit radiator for the 2011-2013 Mazda 6 4-cylinder 2.5L, and the car takes one. The structure and design are built to the durability and expectations of the OE radiator.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Core height: 14.9375 in
    • Core width: 28.875 in
    • Core thickness: 0.625 in
    • Core rows: 1
    • Inlet and outlet diameter: 1.3125 in
    • Inlet and outlet header length: 30.0625 in
    • Inlet and outlet header width: 2 in
    • Inlet location: top left; outlet location: bottom left
    • Mounting type: post

    Build and materials

    • Flow type: down flow
    • Core material: aluminum
    • Tank material: plastic
    • Transmission oil cooler: internal, concentric, included
    • Condition: New
    • Country of origin: China

    In the box

    One radiator with its built-in transmission oil cooler. A frame and an engine oil cooler are not included.

    Interchange: 103762 · 17788000045933614 · 8013389 · 2754 · 3541 · C13389 · 13389 · A13389 · 13389C · RAD13389 · L5A315200 · L5A315200A · L5A415200 · L5A415200A · CR13389 · 2413389 · MA3010238 · 2129 · 220190202 · 4113389 · RA13389C

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    103762, 17788000045933614, 8013389, 2754, 3541, C13389, 13389, A13389, 13389C, RAD13389, L5A315200, L5A315200A, L5A415200, L5A415200A, CR13389, 2413389, MA3010238, 2129, 220190202, 4113389, RA13389C

    Frequently Asked Questions

    Will this radiator fit a 2011-2013 Mazda 6 4-cylinder 2.5L?

    Yes. Spectra Premium CU13389 is listed for the 2011-2013 Mazda 6 4-cylinder 2.5L, and that car takes one radiator.

    Does this radiator include a transmission oil cooler?

    Yes. Spectra Premium CU13389 has an internal concentric transmission oil cooler with 10 mm hose barb fittings. An engine oil cooler and a frame are not included.

    Is the core of this radiator aluminum or plastic?

    The core is aluminum and the tanks are plastic. It is a down-flow design with one core row.

    How can I tell if this radiator is leaking?

    With the engine off and cool, look over the tanks and core for wet spots, crusty residue or bent fins. Overheating and coolant loss can be signs too; a shop can pressure-test the system.

    What size are the inlet and outlet on this radiator?

    The inlet (top left) and the outlet (bottom left) are both 1.3125 in in diameter. Spectra Premium CU13389 mounts by post.
