Radiator for 2015-2024 Ford Mustang - Spectra Premium CU13486

$465.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: CU13486
    UPC: 671607783780
    Condition: New
    Weight: 36.45 LBS
    Item Package Quantity: 1
    $465.99
    Adding to cart… The item has been added

    Have questions?

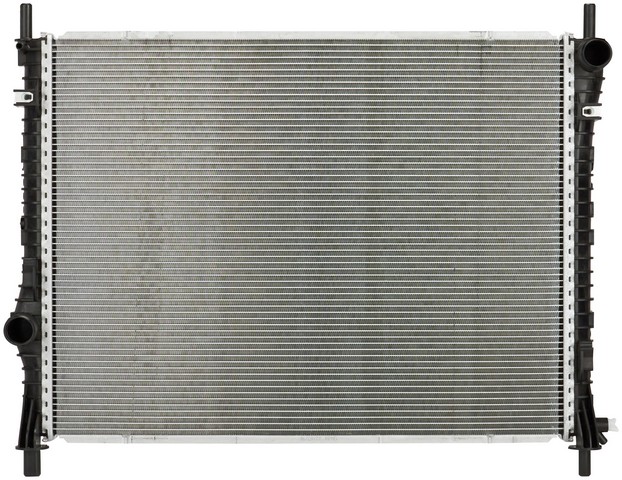

    Spectra Premium Radiator P/N:CU13486
    Spectra Premium Radiator P/N:CU13486
    $465.99
    $465.99

    Spectra Premium CU13486 radiator for the 2015-2017 Ford Mustang V6 3.7L, the 2015-2020 Mustang V8 5.2L and the 2015-2024 Mustang V8 5.0L moves heat out of the engine coolant as it flows through the aluminum core. Its structure and design are built to the same durability and expectations as the OE.

    • Aluminum core with plastic tank material
    • Cross-flow design with the inlet at the bottom left and the outlet at the top right
    • Post-type mounting
    • No internal engine oil cooler or internal transmission oil cooler

    Quick facts

    • Part: Spectra Premium CU13486 radiator
    • Fits: 2015-2017 Ford Mustang V6 3.7L, the 2015-2020 Mustang V8 5.2L and the 2015-2024 Mustang V8 5.0L
    • Material: Aluminum core, plastic tank
    • Condition: New

    Coolant seepage around the core or tanks, or an engine that runs hot, can mean the radiator is wearing out. Before you replace it, rule out the thermostat, water pump, hoses and cooling fan, because a fault in any of them can also leave the engine running hot. This listing is one radiator, and a single radiator is all the car needs.

    Fits

    It is a direct-fit replacement for the 2015-2017 Ford Mustang V6 3.7L, the 2015-2020 Mustang V8 5.2L and the 2015-2024 Mustang V8 5.0L.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Core size: 25.25 in high, 19.5625 in wide, 1.4375 in thick
    • Inlet and outlet diameter: 1.5 in each
    • Inlet and outlet header: 20.0625 in long, 2.0625 in wide

    Build and materials

    • Core material: aluminum
    • Tank material: plastic
    • Core rows: 1
    • Condition: New
    • Country of origin: China

    In the box

    One radiator. A frame, an engine oil cooler and a transmission oil cooler are not included.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Will this Mustang radiator work on the 2015-2024 Ford Mustang V8 5.0L?

    Yes. Spectra Premium CU13486 fits the 2015-2024 Ford Mustang V8 5.0L, and the car takes one radiator.

    Does CU13486 come with a frame or oil coolers?

    No. This Spectra Premium CU13486 radiator comes without a frame, an engine oil cooler or a transmission oil cooler.

    What size are the inlet and outlet on this radiator?

    Both the inlet and the outlet have a 1.5 inch diameter. The inlet is at the bottom left and the outlet is at the top right.

    What visible signs can show a radiator is leaking?

    With the engine off and cool, coolant stains, damp seams or cracks on the tanks and core can point to a leak. A shop can pressure-test the cooling system if you are unsure.

    How big is the core on this radiator?

    The single-row aluminum core measures 25.25 in high, 19.5625 in wide and 1.4375 in thick. The tank material is plastic.
