Radiator for 1996-2000 Hyundai Elantra & More - Spectra Premium CU1897

$178.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: CU1897
    UPC: 671607709094
    Condition: New
    Weight: 24.66 LBS
    Item Package Quantity: 1
    $178.99
    Adding to cart… The item has been added

    Have questions?

    Spectra Premium Radiator P/N:CU1897
    Spectra Premium Radiator P/N:CU1897
    $178.99
    $178.99

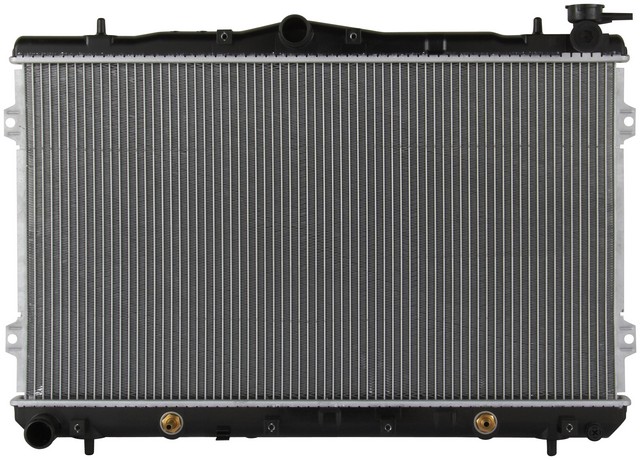

    Spectra Premium CU1897 radiator for the 1996-1998 Hyundai Elantra 4-cylinder 1.8L, the 1999-2000 Elantra 4-cylinder 2.0L and other vehicles passes engine coolant through its core to shed heat. Its structure and design are built for the same durability and expectations as the OE radiator.

    • Aluminum core with plastic tanks
    • Single-row core, 26.3125 in wide, 14.75 in high and 0.625 in thick
    • Down-flow layout with the inlet at top center and the outlet at bottom right
    • Built-in concentric transmission oil cooler with 5/8-18 UNF female fittings
    • Post mounting type

    Quick facts

    • Part: Spectra Premium CU1897 radiator
    • Fits: the 1996-1998 Hyundai Elantra 4-cylinder 1.8L, the 1999-2000 Elantra 4-cylinder 2.0L and other vehicles
    • Material: Aluminum core, plastic tanks
    • Condition: New

    Coolant stains under the car, a temperature gauge that climbs or steam from the engine bay can mean the radiator is worn, though a thermostat or a water pump can be behind the same signs.

    Fits

    It fits the 1996-1998 Hyundai Elantra 4-cylinder 1.8L, the 1999-2000 Elantra 4-cylinder 2.0L, the 1997 Hyundai Tiburon 4-cylinder 1.8L and the 1997-2001 Tiburon 4-cylinder 2.0L. The engine bay holds a single radiator, and this listing is one radiator.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Core height: 14.75 in
    • Core width: 26.3125 in
    • Core thickness: 0.625 in
    • Core rows: 1
    • Inlet diameter: 1.25 in
    • Outlet diameter: 1.25 in
    • Inlet header: 27.1875 in long, 1.1875 in wide
    • Outlet header: 27.1875 in long, 1.5625 in wide
    • Inlet location: top center
    • Outlet location: bottom right

    Build and materials

    • Core material: Aluminum
    • Tank material: Plastic
    • Flow type: Down flow
    • Mounting type: Post
    • Transmission oil cooler: internal, concentric, included
    • Transmission oil cooler fittings: 5/8-18 UNF female, 13.75 in apart
    • Engine oil cooler: not included
    • Frame: not included
    • Condition: New
    • Country of origin: China

    In the box

    One radiator with a built-in transmission oil cooler. No frame or engine oil cooler is included.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is this radiator right for the 1999-2000 Hyundai Elantra 4-cylinder 2.0L?

    Yes. Spectra Premium CU1897 fits the 1999-2000 Hyundai Elantra 4-cylinder 2.0L, and it also fits the 1996-1998 Elantra 4-cylinder 1.8L.

    Is this Spectra Premium radiator aluminum or plastic?

    Both. Spectra Premium CU1897 has an aluminum core and plastic tanks.

    Does this radiator come with a transmission oil cooler and a frame?

    This radiator includes a built-in concentric transmission oil cooler with 5/8-18 UNF female fittings. A frame and an engine oil cooler are not included.

    What diameter are the inlet and outlet on this radiator?

    Both the inlet and the outlet are 1.25 in in diameter. The inlet sits at top center and the outlet at bottom right.

    How can I check this radiator for a leak?

    With the engine off and cool, look for coolant stains, wet spots or crusty deposits on the core and tanks. A shop can pressure-test the cooling system for you.
