Radiator for 2005-2009 Hyundai Tucson - Spectra Premium CU13070

$172.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: CU13070
    UPC: 671607782363
    Condition: New
    Weight: 67.11 LBS
    Item Package Quantity: 1
    $172.99
    Adding to cart… The item has been added

    Have questions?

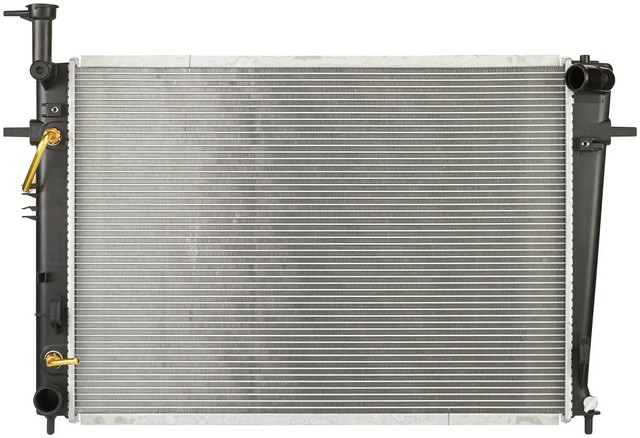

    Spectra Premium Radiator P/N:CU13070
    Spectra Premium Radiator P/N:CU13070
    $172.99
    $172.99

    Spectra Premium CU13070 radiator for the 2005-2009 Hyundai Tucson V6 2.7L carries engine coolant through a cross-flow aluminum core to shed heat. The structure and design of the Spectra Premium radiator are built to take on the same durability and expectations as the OE.

    • Aluminum core with plastic tanks
    • Single-row cross-flow core
    • Internal concentric transmission oil cooler with 10 mm hose barb fittings
    • Post mounting type

    Quick facts

    • Part: Spectra Premium CU13070 radiator
    • Fits: 2005-2009 Hyundai Tucson V6 2.7L
    • Material: Aluminum core, plastic tanks
    • Condition: New

    A leak at the core or tank seams, an engine that runs hot or a coolant level that keeps dropping can mean the radiator needs replacing. A thermostat, water pump, hose or radiator cap can be behind those signs too, so find the cause before buying.

    Fits

    This radiator is a direct-fit replacement for the 2005-2009 Hyundai Tucson V6 2.7L, which takes one.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Core height: 25.1875 in
    • Core width: 17.5625 in
    • Core thickness: 0.875 in
    • Core rows: 1
    • Inlet diameter: 1.375 in
    • Outlet diameter: 1.375 in
    • Inlet location: bottom left
    • Outlet location: bottom right
    • Inlet and outlet header: 18.625 in long, 1.9375 in wide
    • Transmission oil cooler distance between fittings: 11.5 in
    • Mounting type: Post

    Build and materials

    • Flow type: Cross flow
    • Core material: Aluminum
    • Tank material: Plastic
    • Transmission oil cooler: internal, concentric, hose barb 10 mm
    • Condition: New
    • Country of origin: China

    In the box

    One radiator with its built-in transmission oil cooler. A frame and an engine oil cooler are not included.

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    17787997898450363, 17788008635868165, 8013070, 2904, C13070, 0AKA5935R3, 0AKA6123R3, 13070, 2219231, 13070C, 253102E850, 253102E870, 3102E850, RAD13070, A13070, NR13070C, CR13070, OR13070, 2469, 4113070, RA13070C

    Frequently Asked Questions

    Is this Tucson radiator the right one for the 2005-2009 Hyundai Tucson V6 2.7L?

    Yes. Spectra Premium CU13070 is a radiator for the 2005-2009 Hyundai Tucson V6 2.7L, and that vehicle takes one.

    Does the Spectra Premium CU13070 radiator include the transmission oil cooler?

    Yes. The CU13070 has an internal concentric transmission oil cooler with 10 mm hose barb fittings. An engine oil cooler and a frame are not included.

    What are the core and tank materials on this radiator?

    The core is aluminum and the tanks are plastic. It is a single-row cross-flow design, 25.1875 in high, 17.5625 in wide and 0.875 in thick.

    How can I tell if a radiator is leaking or failing?

    With the engine off and cool, look for coolant residue or wet spots at the core and tank seams. A hot-running engine or a dropping coolant level can also be signs; a shop can pressure-test the system.

    Which sides do the hoses connect to on the Spectra Premium CU13070?

    On the Spectra Premium CU13070, the inlet is at the bottom left and the outlet at the bottom right, each 1.375 in in diameter. The transmission cooler fittings are 10 mm hose barbs, 11.5 in apart.
