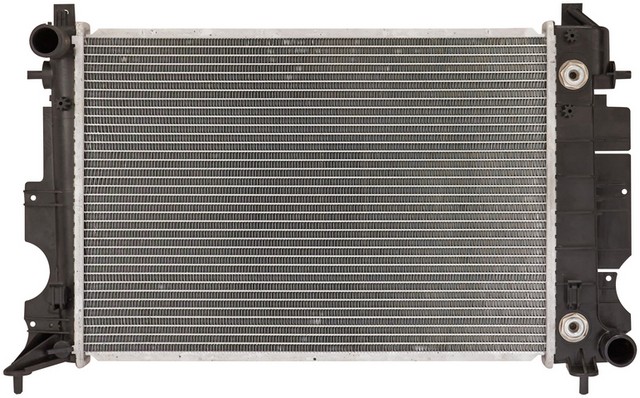

Spectra Premium CU2080 radiator for the 1999-2002 Saab 9-3 4-cylinder 2.0L or 2.3L and other vehicles moves heat from the coolant into the air. Its structure and design are built to take on the same durability and expectations as the OE.
- Aluminum core with two rows
- Cross-flow design with plastic tanks
- Internal transmission oil cooler, plated type, with three plates
- Bottom post and top flange mounting
Quick facts
- Part: Spectra Premium CU2080 radiator
- Fits: 1999-2002 Saab 9-3 4-cylinder 2.0L or 2.3L and other vehicles
- Material: Aluminum core, plastic tanks
- Condition: New
Coolant seeping from the tanks or core, a coolant level that keeps dropping or an engine that runs hot can mean the radiator is worn; check the level only with the engine cool. Before you replace the radiator, rule out a stuck thermostat, a leaking hose or a weak water pump, since each can also send the temperature up.
Fits
This radiator is a direct-fit replacement for the 1999-2002 Saab 9-3 4-cylinder 2.0L or 2.3L, the 1991-1994 Saab 900 4-cylinder 2.1L, the 1994-1997 900 V6 2.5L and the 1994-1998 900 4-cylinder 2.0L or 2.3L.
Specifications
Fit and size
- Core height: 19.6875 in
- Core width: 13.6875 in
- Core thickness: 1.4375 in
- Inlet diameter: 1.375 in
- Outlet diameter: 1.375 in
- Inlet and outlet headers: 15 in long and 2.4375 in wide each
- Inlet location: top left
- Outlet location: bottom right
- Transmission oil cooler fittings: 10.8125 in apart
- Quantity per vehicle: 1
Build and materials
- Core material: Aluminum
- Tank material: Plastic
- Core rows: 2
- Flow type: Cross flow
- Condition: New
- Country of origin: Cambodia
In the box
One radiator with its internal transmission oil cooler. This listing holds one radiator, and the vehicle takes one. A frame and an engine oil cooler are not included.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Is the Spectra Premium CU2080 the right Saab 9-3 radiator for a 1999-2002 car with the 4-cylinder 2.0L or 2.3L?
Yes. Spectra Premium CU2080 is a direct-fit radiator for the 1999-2002 Saab 9-3 4-cylinder 2.0L or 2.3L, and each car takes one.
Does the CU2080 radiator come with an engine oil cooler?
No. Spectra Premium CU2080 has an internal transmission oil cooler but no engine oil cooler, and the frame is not included.
What size are the inlet and outlet on this radiator?
Both the inlet and the outlet measure 1.375 in in diameter. The inlet is at the top left and the outlet is at the bottom right.
How can I tell if the plastic tanks on my radiator are failing?
With the engine off and cool, look for cracks, seepage or coolant stains on the tanks and core. A falling coolant level or an engine running hot are other signs; a shop can pressure-test the system.
Is the transmission oil cooler built into this Spectra Premium radiator?
Yes. Spectra Premium CU2080 has an internal plated transmission oil cooler with three plates, and its fittings sit 10.8125 in apart.
