Radiator for 2014-2016 Ram 2500 & More - Spectra Premium CU13494

$222.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: CU13494
    UPC: 671607783865
    Condition: New
    Weight: 57.31 LBS
    Item Package Quantity: 1
    $222.99
    Adding to cart… The item has been added

    Have questions?

    Spectra Premium Radiator P/N:CU13494
    Spectra Premium Radiator P/N:CU13494
    $222.99
    $222.99

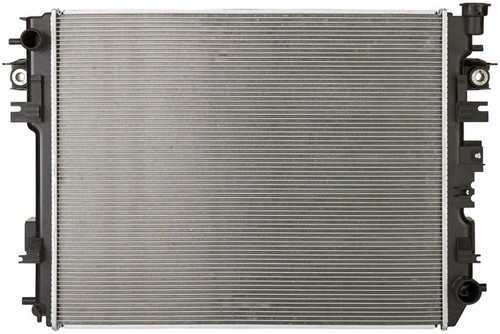

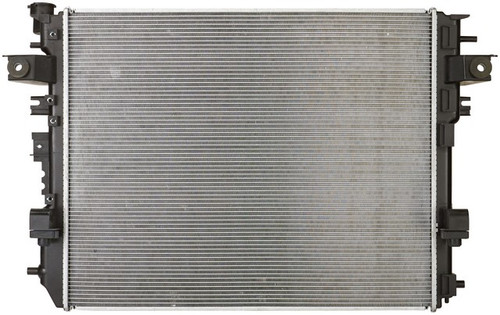

    Spectra Premium CU13494 radiator for the 2014-2016 Ram 2500 V8 5.7L and other vehicles carries engine coolant through an aluminum core to shed engine heat. Its structure and design are built to the durability and expectations of the OE radiator.

    • Single-row aluminum core
    • Cross-flow layout for the coolant path
    • Plastic tank material
    • Rubber mounting type

    Quick facts

    • Part: Spectra Premium CU13494 radiator
    • Fits: 2014-2016 Ram 2500 V8 5.7L and other vehicles
    • Material: aluminum core, plastic tanks
    • Condition: New

    Coolant leaks at the tanks or core, overheating, or a coolant level that keeps dropping can mean the radiator is worn, though a stuck thermostat or a weak water pump may be behind them instead. Work out which part is at fault before you replace the radiator.

    Fits

    It is a direct-fit replacement for the 2014-2016 Ram 2500 V8 5.7L, the 2014-2018 Ram 3500 V8 5.7L and the 2014-2017 and 2020-2024 Ram 4000 V8 5.7L.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Core size: 27.5625 inches high, 21.9375 inches wide, 1 inch thick
    • Inlet diameter: 1.5 inches
    • Outlet diameter: 1.75 inches
    • Connection locations: inlet top left, outlet bottom right
    • Inlet and outlet headers: 23.0625 inches long, 2 inches wide each

    Build and materials

    • Core material: aluminum
    • Tank material: plastic
    • Flow type: cross flow
    • Mounting type: rubber
    • Condition: New
    • Country of origin: China

    In the box

    One radiator. The trucks above take one radiator each, and this listing holds one. A frame, an engine oil cooler and a transmission oil cooler are not included.

    Interchange: 103903 · 8013494 · 13494 · 3739 · C13494 · 68190600AA · 68190600AB · 68193066AA · 68193066AB · 68232750AA · 68232750AB · B13494 · 13494C · RAD3022 · 2598 · 220091617 · 4113494

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    103903, 8013494, 13494, 3739, C13494, 68190600AA, 68190600AB, 68193066AA, 68193066AB, 68232750AA, 68232750AB, B13494, 13494C, RAD3022, 2598, 220091617, 4113494

    Frequently Asked Questions

    Will this Ram 2500 radiator fit the 2014-2016 model with the V8 5.7L?

    Yes. Spectra Premium CU13494 fits the 2014-2016 Ram 2500 V8 5.7L, and that truck takes one radiator.

    Is this Ram 3500 radiator the right one for the 2014-2018 V8 5.7L?

    Yes. This radiator fits the 2014-2018 Ram 3500 V8 5.7L, and the listing holds a single radiator.

    Does the CU13494 radiator come with oil coolers or a frame?

    No. You get the radiator only. A frame, an engine oil cooler and a transmission oil cooler are not included, and the core has no internal oil cooler.

    What size are the inlet and outlet on this radiator?

    The inlet is 1.5 inches in diameter and sits at the top left. The outlet is 1.75 inches in diameter and sits at the bottom right.

    Is this radiator all aluminum?

    No. Spectra Premium CU13494 has an aluminum core with plastic tanks. The core is a single-row, cross-flow design.
