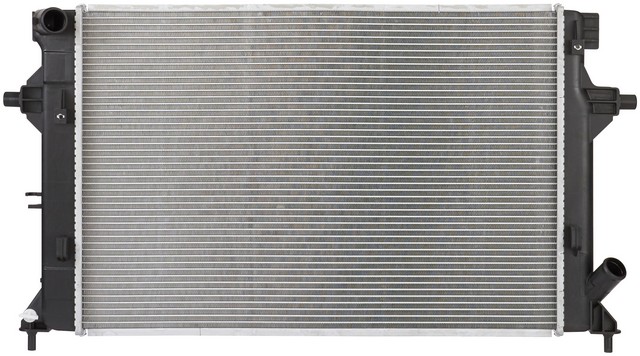

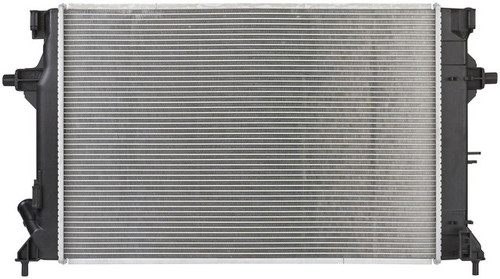

Spectra Premium CU13609 radiator for the 2016-2017 Hyundai Elantra 4-cylinder 2.0L and other vehicles passes engine coolant through its core so heat can leave the engine. Its structure and design are built for the same durability and expectations as the OE.
Overheating or coolant stains under the car can point to a leaking or clogged radiator, but a thermostat, water pump or cooling fan can cause similar signs. With the engine off and cool, look over the tanks, seams and fins for wet spots, cracks or bent fins before you decide.
It is a direct-fit replacement radiator for the 2016-2017 Hyundai Elantra 4-cylinder 2.0L and the 2018-2020 Hyundai Elantra GT 4-cylinder 2.0L. One radiator goes in each car.
Fit and size
Build and materials
One radiator. A frame, engine oil cooler and transmission oil cooler are not included.
Interchange: 17787997898450280 · 8013609 · RK2053 · 13609 · 3871 · 2219567 · A13609 · 25310F2000 · 606552 · CR13609 · 13710 · 2481161 · 859 · 4113609 · RA13609C
This part cross-references / interchanges with the following part numbers:
Is this radiator right for the 2016-2017 Hyundai Elantra 4-cylinder 2.0L?
Yes. Spectra Premium CU13609 fits the 2016-2017 Hyundai Elantra 4-cylinder 2.0L, and it also fits the 2018-2020 Hyundai Elantra GT 4-cylinder 2.0L.
Does the Spectra Premium CU13609 come with an oil cooler?
No. This Spectra Premium CU13609 radiator has no engine oil cooler or transmission oil cooler built in, and a frame is not included either.
What size are the inlet and outlet on this cross-flow radiator?
Both the inlet and the outlet are 1.3125 inches in diameter. The inlet sits at the top left and the outlet at the bottom right.
How can I spot a leak on a radiator with plastic tanks?
With the engine off and cool, look for coolant stains or crusty residue around the tanks and core, cracks in the plastic, or bent fins. A shop can pressure-test the system.
Does Spectra Premium CU13609 cross-reference to RK2053?
Yes. RK2053 is one of the interchange numbers listed for this Spectra Premium CU13609 radiator, and the full list is at the bottom of the page.
