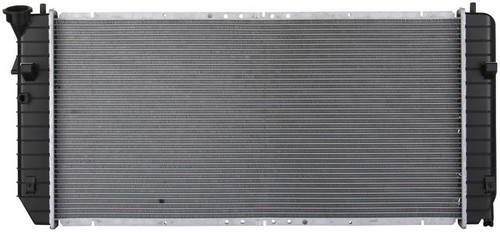

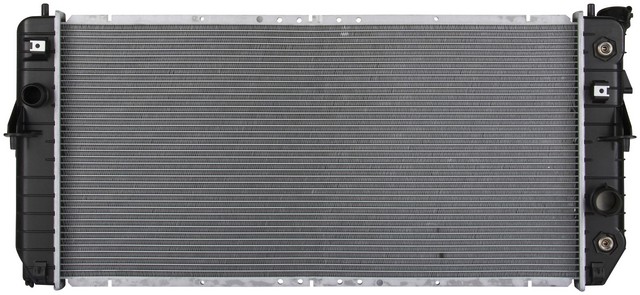

Spectra Premium CU2349 radiator for the 1997-2004 Buick Park Avenue V6 3.8L carries engine coolant through an aluminum core to shed heat. Its structure and design are built to carry the same durability and expectations as the OE radiator.
- Aluminum core, one row, 30.5 in high by 15 in wide and 0.625 in thick
- Plastic tank material
- Cross flow layout with the inlet at the top left and the outlet at the bottom right
- Internal transmission oil cooler with 5/8-18 UNF female fittings, 11.5 in between fittings
- Saddle mounting type
Quick facts
- Part: Spectra Premium CU2349 radiator
- Fits: 1997-2004 Buick Park Avenue V6 3.8L
- Material: Aluminum core, plastic tank
- Condition: New
A coolant leak at the tanks or core, an engine that runs hot or a low coolant level can mean a radiator is failing. A water pump, thermostat, hose or radiator cap can be behind these signs too, so find the cause before buying. The 1997-2004 Buick Park Avenue V6 3.8L takes one radiator.
Fits
This radiator fits the 1997-2004 Buick Park Avenue V6 3.8L.
Specifications
Fit and size
- Core height: 30.5 in
- Core width: 15 in
- Core thickness: 0.625 in
- Inlet diameter: 1.3125 in
- Outlet diameter: 1.5 in
- Inlet header: 16.5625 in long, 2.4375 in wide
- Outlet header: 16.5625 in long, 2.4375 in wide
- Inlet location: top left
- Outlet location: bottom right
- Mounting type: saddle
- Quantity per vehicle: 1
Build and materials
- Core material: aluminum
- Tank material: plastic
- Flow type: cross flow
- Core rows: 1
- Transmission oil cooler: internal, plated, 4 plates

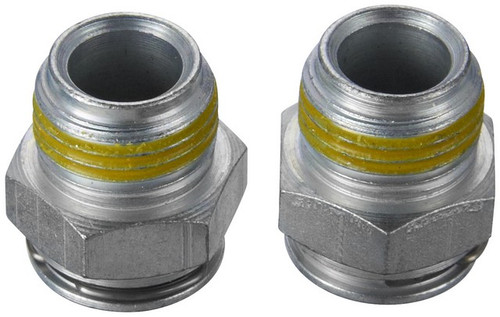

- Transmission oil cooler fittings: 5/8-18 UNF female
- Transmission oil cooler distance between fittings: 11.5 in
- Condition: new
- Country of origin: Canada
In the box
One radiator with its built-in transmission oil cooler. A frame and an engine oil cooler are not included.
Interchange: 1880 · 2349 · 21610 · 8011880 · 8012349 · AR2349 · 2350 · 788 · RA20055 · RA2005511B1 · B2349 · 52402517 · 52469787 · 52469789 · 52477792 · 52487041 · 1880C · RAD1880 · RAD2349 · 2691 · OR2349 · CU1880 · 411880 · 412349 · 432707 · 9587
This part cross-references / interchanges with the following part numbers:
1880, 2349, 21610, 8011880, 8012349, AR2349, 2350, 788, RA20055, RA2005511B1, B2349, 52402517, 52469787, 52469789, 52477792, 52487041, 1880C, RAD1880, RAD2349, 2691, OR2349, CU1880, 411880, 412349, 432707, 9587
Frequently Asked Questions
Will this work as a 2000 Buick Park Avenue V6 3.8L radiator?
Yes. Spectra Premium CU2349 fits the 1997-2004 Buick Park Avenue V6 3.8L, which covers the 2000 model year.
Does this Spectra Premium radiator have a built-in transmission cooler?
Yes. It has an internal transmission oil cooler with 5/8-18 UNF female fittings, 11.5 in between the fittings. An engine oil cooler is not part of it.
Is a frame included with the CU2349 radiator?
No. Spectra Premium CU2349 comes as the radiator with its built-in transmission oil cooler. A frame and an engine oil cooler are not included.
Is the core on this radiator aluminum or plastic?
The core is aluminum and the tank material is plastic. The core is one row, cross flow design.
What are the inlet and outlet sizes on this radiator?
The inlet is 1.3125 in across at the top left, and the outlet is 1.5 in across at the bottom right.
