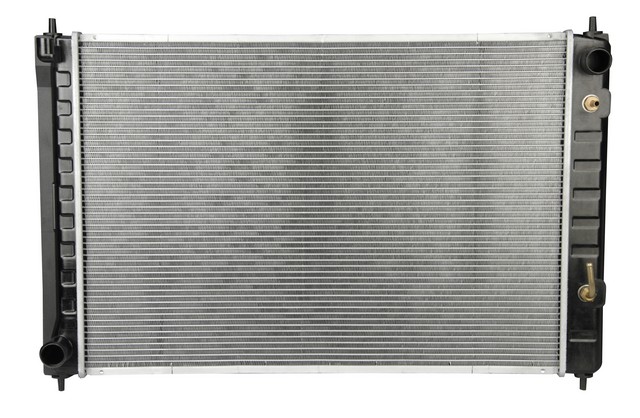

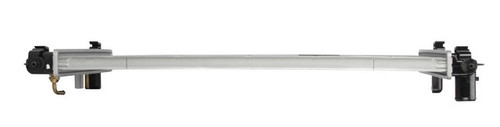

Spectra Premium CU13039 radiator for the 2008-2014 Nissan Murano V6 3.5L and other vehicles carries engine coolant through its core so heat leaves the engine. Its structure and design are built for the same durability and expectations as the OE radiator.
- Aluminum core in a one-row, cross flow layout
- Plastic tanks with an inlet at the top right and an outlet at the bottom right
- Core measures 26.5 inch high, 18.0625 inch wide and 1 inch thick
- Internal plated transmission oil cooler with three plates and 8mm hose barb fittings
- Inlet and outlet are both 1.375 inch in diameter
Quick facts
- Part: Spectra Premium CU13039 radiator
- Fits: 2008-2014 Nissan Murano V6 3.5L and other vehicles
- Material: Aluminum core, plastic tanks
- Condition: New
Coolant seeping at the core or tanks, steam, or an engine temperature that keeps climbing can mean a radiator is failing. Before you replace it, rule out a loose or split hose, a sticking thermostat and a weak water pump, since each of those can also make an engine run hot or lose coolant.
Fits
This radiator is a direct-fit replacement for the 2008-2014 Nissan Murano V6 3.5L and the 2011-2017 Nissan Quest V6 3.5L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Core: 26.5 inch high, 18.0625 inch wide, 1 inch thick, 1 row
- Inlet diameter: 1.375 inch
- Outlet diameter: 1.375 inch
- Inlet header: 19 inch long, 1.875 inch wide, top right
- Outlet header: 19 inch long, 1.875 inch wide, bottom right
- Transmission oil cooler distance between fittings: 10.4375 inch
- Mounting type: Post
Build and materials
- Flow type: Cross flow
- Core material: Aluminum
- Tank material: Plastic
- Transmission oil cooler: internal, plated, 3 plates, 8mm hose barb fittings
- Engine oil cooler: not included
- Frame: not included
- Condition: New
- Country of origin: China
In the box
One radiator with its built-in transmission oil cooler. This listing holds one radiator, and both vehicles need just one. The frame and an engine oil cooler are not included.
This part cross-references / interchanges with the following part numbers:
103458, 10182345256654382, 8013039, 2984, 3372, C13039, C13406, 0ANS5950, 13039, 13406, 2213416, 214601AA0A, 13039C, RAD13039, A13039, 68743, 13039DPI, NI3010217, NI3010228, 4113039, 438455, RA13039C
Frequently Asked Questions
Is this a 2008-2014 Nissan Murano V6 3.5L radiator?
Yes. Spectra Premium CU13039 is a direct-fit radiator for the 2008-2014 Nissan Murano V6 3.5L, and it takes one per vehicle.
Is this the right 2011-2017 Nissan Quest V6 3.5L radiator?
Yes. Spectra Premium CU13039 fits the 2011-2017 Nissan Quest V6 3.5L, and it takes one radiator per vehicle.
Does the Spectra Premium radiator include a transmission oil cooler?
Yes. It has an internal plated transmission oil cooler with three plates and 8mm hose barb fittings, but no engine oil cooler.
Could coolant seeping at the tanks mean the radiator needs replacing?
Yes, it can. Seepage or crusty residue at the core or tanks, or a coolant level that keeps dropping, can point to a leaking radiator; look only with the engine cool, or have a shop pressure-test it.
Does this radiator come with a frame?
No. The frame and an engine oil cooler are not included; Spectra Premium CU13039 is one radiator with its built-in transmission oil cooler.
