Radiator for 2014-2018 Mazda 3 & More - Spectra Premium CU13761

$213.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: CU13761
    UPC: 671607032413
    Condition: New
    Weight: 34.62 LBS
    Item Package Quantity: 1
    $213.99
    Adding to cart… The item has been added

    Have questions?

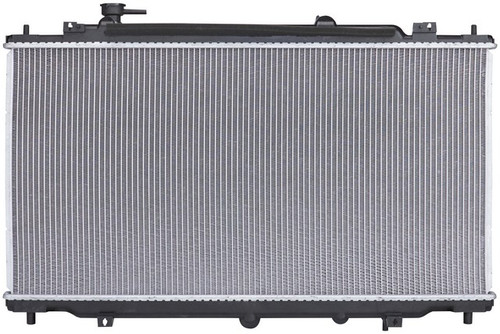

    Spectra Premium Radiator P/N:CU13761

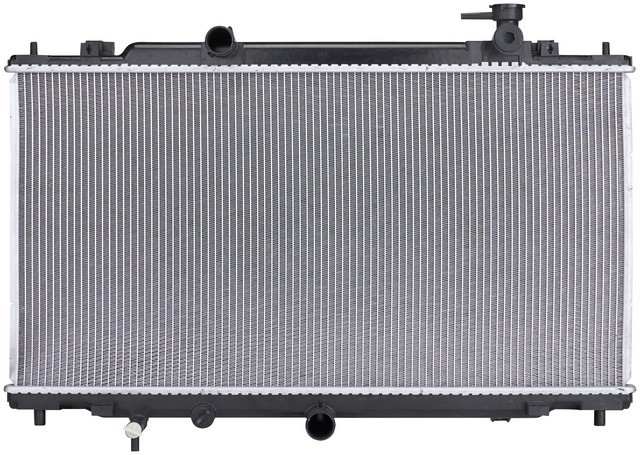

    Spectra Premium Radiator P/N:CU13761
    $213.99
    $213.99

    Spectra Premium CU13761 radiator for the 2014-2018 Mazda 3 4-cylinder 2.0L or 2.5L and other vehicles carries engine coolant through its core to shed heat. The structure and design are built to the same durability expectations as the OE radiator.

    • Single-row aluminum core, 28.75 in wide by 14.75 in high and 0.5625 in thick
    • Plastic tank material, with inlet and outlet headers 30 in long and 1.5625 in wide
    • Down-flow layout with the inlet at the top left and the outlet at the bottom center
    • Inlet and outlet ports of 1.3125 in diameter
    • Post-style mounting

    Quick facts

    • Part: Spectra Premium CU13761 radiator
    • Fits: 2014-2018 Mazda 3 4-cylinder 2.0L or 2.5L and other vehicles
    • Material: Aluminum core, plastic tanks
    • Condition: New

    Coolant leaks or a temperature gauge that climbs can mean the radiator is worn out, though a thermostat or a water pump can also be behind overheating, so find the cause before you replace anything.

    Fits

    This is a direct-fit replacement for the 2014-2018 Mazda 3 4-cylinder 2.0L or 2.5L and the 2014-2018 Mazda 3 Sport 4-cylinder 2.0L or 2.5L, and each takes one radiator.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Core size: 28.75 in wide, 14.75 in high, 0.5625 in thick
    • Core rows: 1
    • Inlet: top left, 1.3125 in diameter
    • Outlet: bottom center, 1.3125 in diameter
    • Inlet and outlet headers: 30 in long, 1.5625 in wide each
    • Flow type: down flow
    • Mounting type: post

    Build and materials

    • Core material: aluminum
    • Tank material: plastic
    • Internal oil coolers: none for engine or transmission
    • Condition: new
    • Country of origin: China

    In the box

    One radiator. A frame, an engine oil cooler and a transmission oil cooler are not included.

    Interchange: 8013404 · 3906 · 3967 · 13575 · 13689 · 13691 · 13590 · 13695 · 13758 · 13759 · 13760 · 13761 · 13762 · 13763 · 13764 · B13761 · 13761C · A13758 · PEDD15200 · PEDD15200A · PEDD15200B · 4113761 · 4113764 · RA13761 · RA13761C

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    8013404, 3906, 3967, 13575, 13689, 13691, 13590, 13695, 13758, 13759, 13760, 13761, 13762, 13763, 13764, B13761, 13761C, A13758, PEDD15200, PEDD15200A, PEDD15200B, 4113761, 4113764, RA13761, RA13761C

    Frequently Asked Questions

    Is the CU13761 a radiator for the 2014-2018 Mazda 3 4-cylinder 2.0L or 2.5L?

    Yes. Spectra Premium CU13761 is a direct-fit radiator for the 2014-2018 Mazda 3 4-cylinder 2.0L or 2.5L, and also for the 2014-2018 Mazda 3 Sport 4-cylinder 2.0L or 2.5L.

    Is this Spectra Premium radiator aluminum or plastic?

    Both. The Spectra Premium CU13761 has an aluminum core and plastic tanks, and the core is a single row 28.75 in wide, 14.75 in high and 0.5625 in thick.

    Does this radiator come with a frame or oil coolers?

    No. This listing is one radiator; a frame, an engine oil cooler and a transmission oil cooler are not included.

    Which way does coolant flow through the CU13761?

    It is a down-flow radiator with the inlet at the top left and the outlet at the bottom center. Both ports have a 1.3125 in diameter.

    How can I spot a leaking radiator before the engine overheats?

    With the engine off and cool, look for coolant stains, wet spots or cracks on the tanks and core, and watch for a temperature gauge that climbs. A shop can pressure-test the cooling system.
